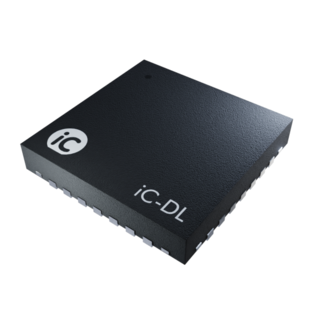

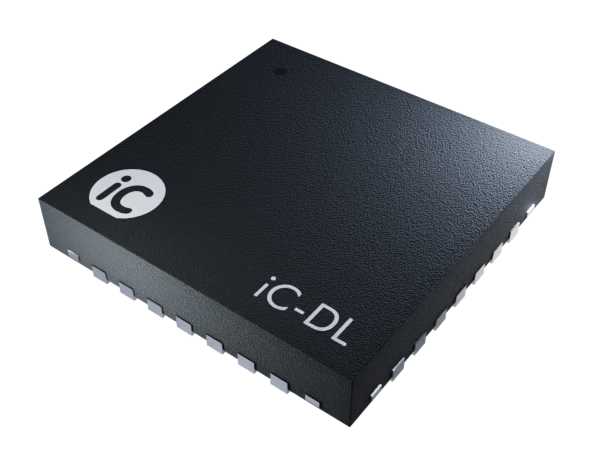

iC-DL QFN28

Product description

iC-DL is a fast line driver with six independent channels and integrated impedance adaptation for 30 to 140 Ω lines.

Channels are paired for differential 3-channel operation by a high signal at the DIFF input, providing differential output signals for the three inputs E1, E3 and E5. All inputs are CMOS/TTL compatible.

The push-pull output stages have a driver power of typically 200 mA from 24 V and are short-circuit-proof and current-limited, shutting down with excessive temperature.

Features

  • 6 current-limited and short-circuit-proof push-pull drivers
  • Differential 3-channel operation selectable
  • Integrated impedance adaption for 30 to 140 Ω lines
  • Wide power supply range from 4 to 40 V
  • 200 mA output current (at VB = 24 V)
  • Low output saturation voltage (< 0.4 V at 30 mA)
  • Compatible with TIA/EIA standard RS-422
  • Tristate switching of outputs enables use in buses
  • Short switching times and high slew rates
  • Low static power dissipation
  • Schmitt trigger inputs with pull-down resistors, TTL and CMOS compatible; voltage-proof up to 40 V
  • Thermal shutdown with hysteresis
  • Error message trigger input TNER
  • Open-drain error output NER, active low with excessive chip temperature and undervoltage at VCC or VB
  • Option: Extended temperature range from -40 to 125 °C

Applications

  • Line drivers for 24 V control engineering
  • Linear scales and encoders
  • MR sensor systems
