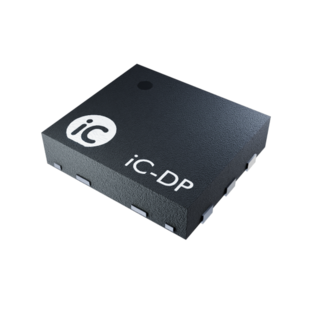

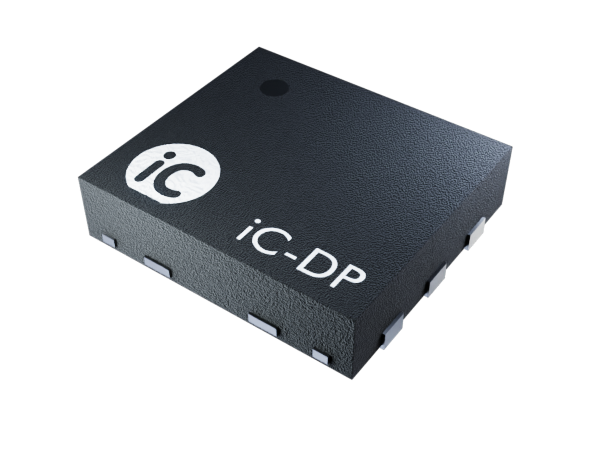

iC-DP UDFN6-1.8x2

High-Side Switch

This is a B2B only shop. Please login or register.

Product description

iC-DP is a monolithic highside switch for ohmic, inductive and capacitive loads.

Designed for a wide input voltage range of 4 to 36 V, it is capable of supplying a minimum output current of 200 mA. The output acts as a current source with a low saturation voltage; protection against short-circuiting is provided by the device shutting down with excessive temperature. The chip is activated when the input voltage threshold V(PI)-V(NI) of typically 3.5 V is exceeded.

Features

  • 36 V highside switch/level shifter
  • P-channel output driver without charge pump for short activation time
  • Decoupling of input and output reference voltages permits control by 5 V logic
  • 200 mA of output current
  • Short-circuit protected
  • Output with an active freewheeling circuit
  • On-chip overtemperature protection with hysteresis
  • 4 to 36 V input voltage range
  • Input with hysteresis
  • Wide temperature range of -40 to 120 °C

Applications

  • Highside switch for industrial applications, such as relays, inductive proximity sensors and light barriers
