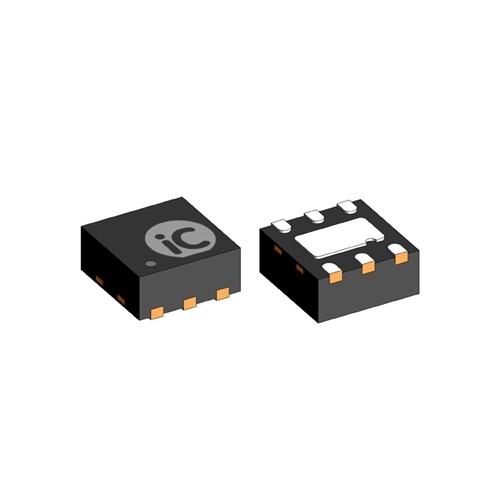

iC-DX3 DFN6-2x2

Universal Digital Sensor Output Driver (3 V)

This is a B2B shop.
Orders will be fulfilled and shipped to business
clients with a valid address in Germany.

Please login or register.

Product description

The iC-DX3 is a monolithic switch capable of driving ohmic, inductive and capacitive loads and
features integrated reverse polarity protection.
The supply voltage VB ranges from 8 to 30 V.

Output source/sink-current is at least 150 mA, with saturation voltages of typically 2 V. Depending on control inputs OE and IN, the output can be configured as a push-pull stage or as a high-side (PNP) or low-side (NPN) driver.

A regulated 3.3 V supply which can be loaded up to 10 mA is available at pin VOUT.

Features

  • Configurable high-side, low-side and push-pull operation
  • Current limited output (< 450 mA)
  • Reverse polarity protection
  • 150 mA output current
  • 5 µs input filter for spike supression
  • Wide supply voltage range from 8 to 30 V
  • Driver shut-down with over temperature
  • Integrated free-wheeling diode for inductive loads
  • Sensor supply voltage output of 3.3 V, 10 mA

Applications

  • Digital sensors
  • Light barriers
  • Proximity switches
