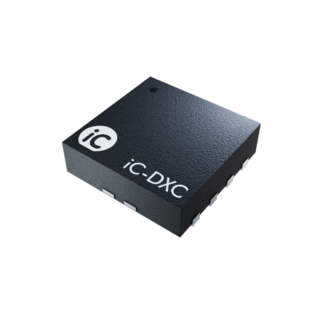

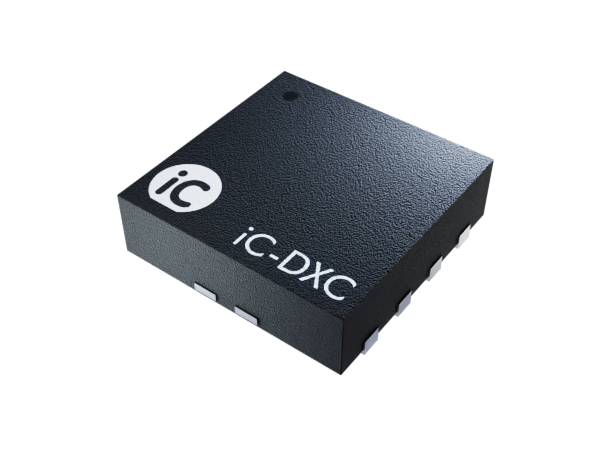

The iC-DXC is a monolithic switch capable of driving ohmic, inductive and capacitive loads and features integrated reverse polarity protection.
The supply voltage VB ranges from 8 to 30 V.
Output source/sink-current is at least 200 mA, with saturation voltages of typically 2 V. Depending on control inputs OE and NIN, the output can be configured as a push-pull stage or as a high-side (PNP) or low-side (NPN) driver. A 5 V linear regulator output is available at pin VOUT, sourcing up to 10 mA.
