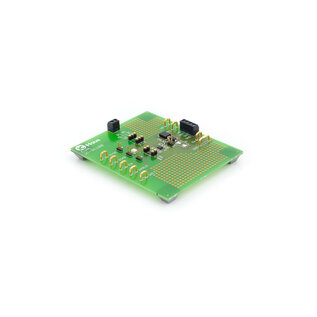

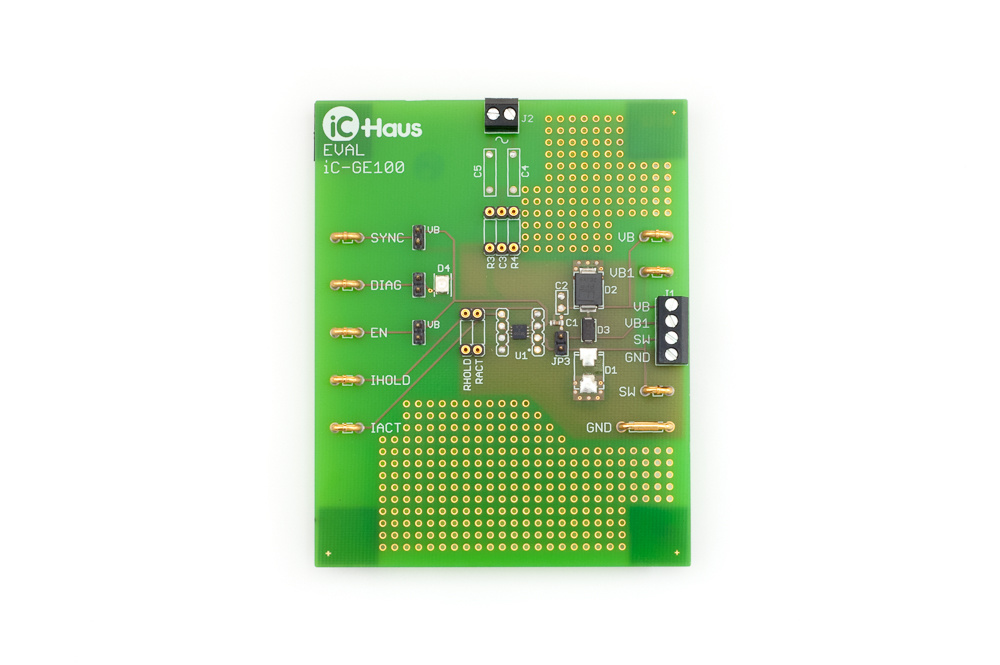

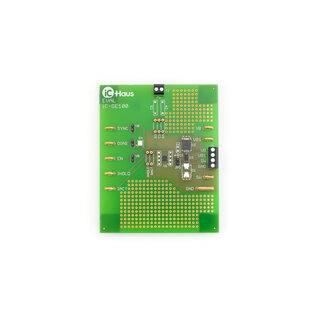

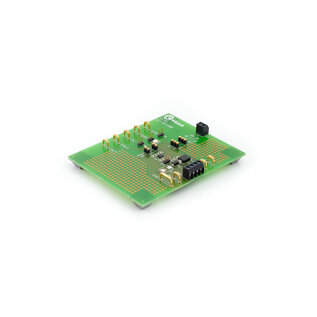

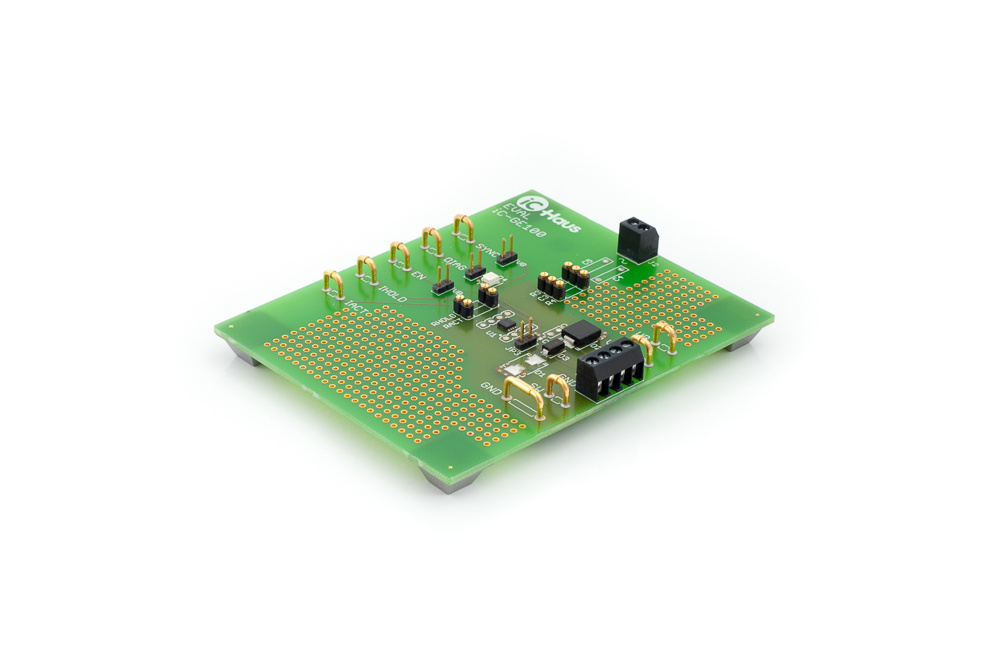

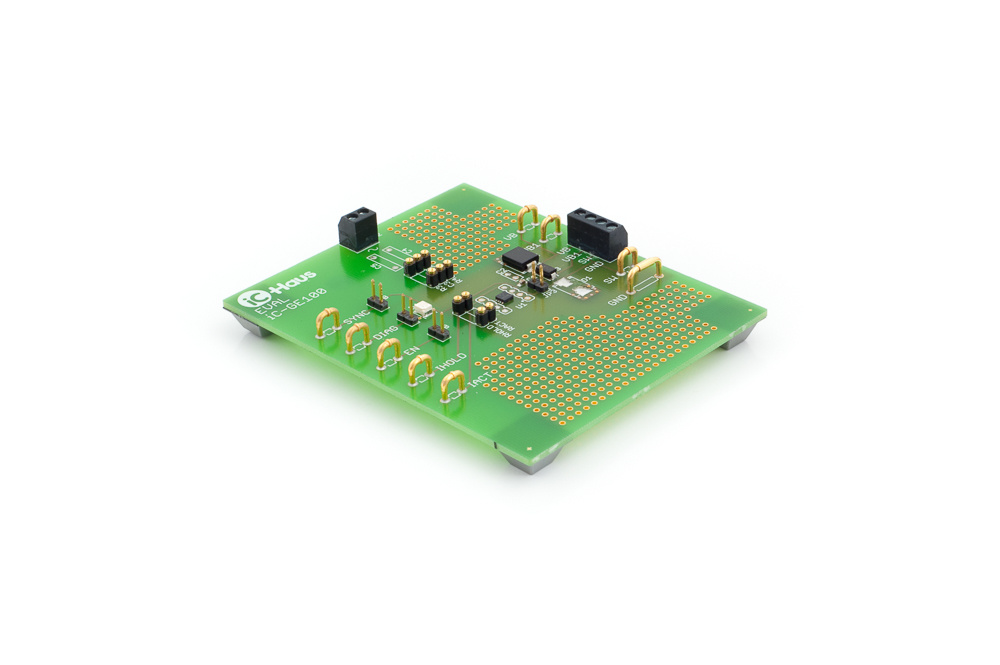

iC-GE100 EVAL GE2D is the evaluation board for evaluating, testing, and measuring of iC-GE100.
iC-GE100 is a PWM driver for inductive loads, such as relay coils, solenoid valves and other inductive loads.
The setpoints for the coil's energising and hold current are pre-set by means of external resistors RACT and RHOLD. These currents can be set in a range from 10 to 100 mA. The iC-GE100 switches from energising to hold mode after 50 ms provided that the set energising current has been reached.
