iC-HD2 EVAL HD2_1D

Evaluation Board iC-HD2 (incl. 2 IC samples)

This is a B2B shop.
Orders will be fulfilled and shipped to business
clients with a valid address in Germany.

Please login or register.

Article description

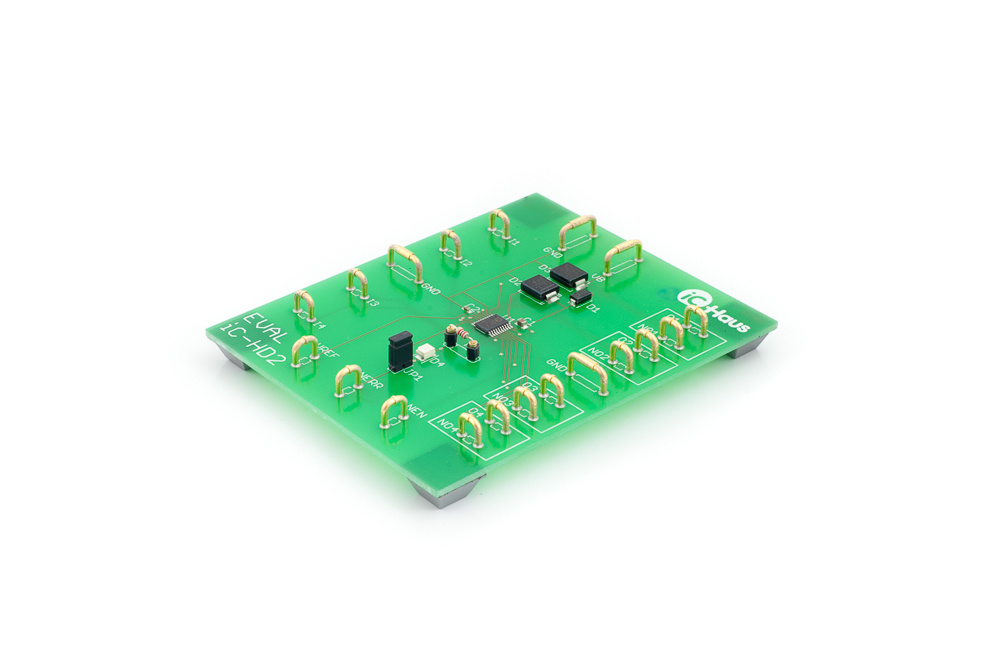

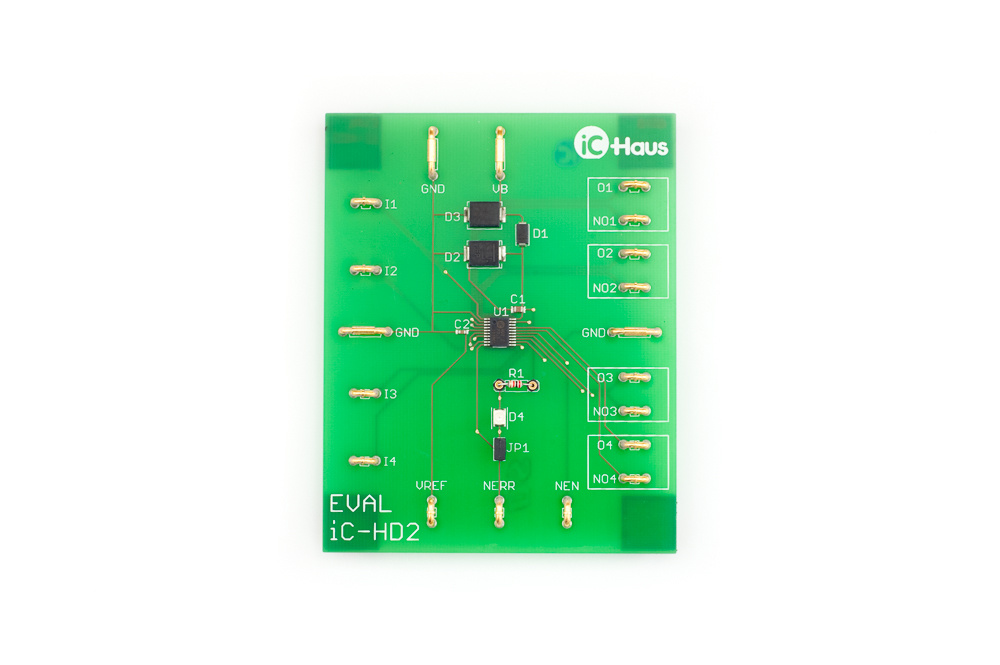

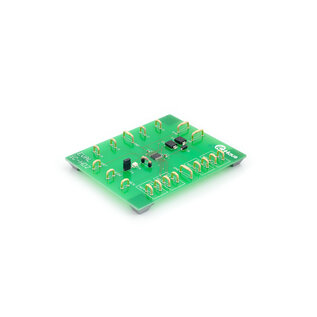

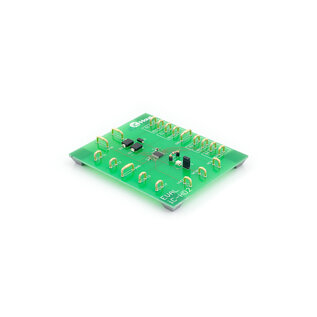

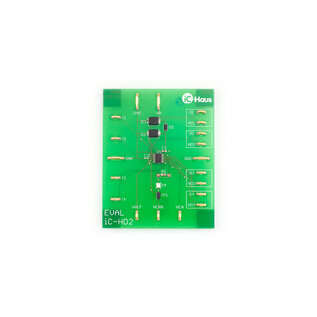

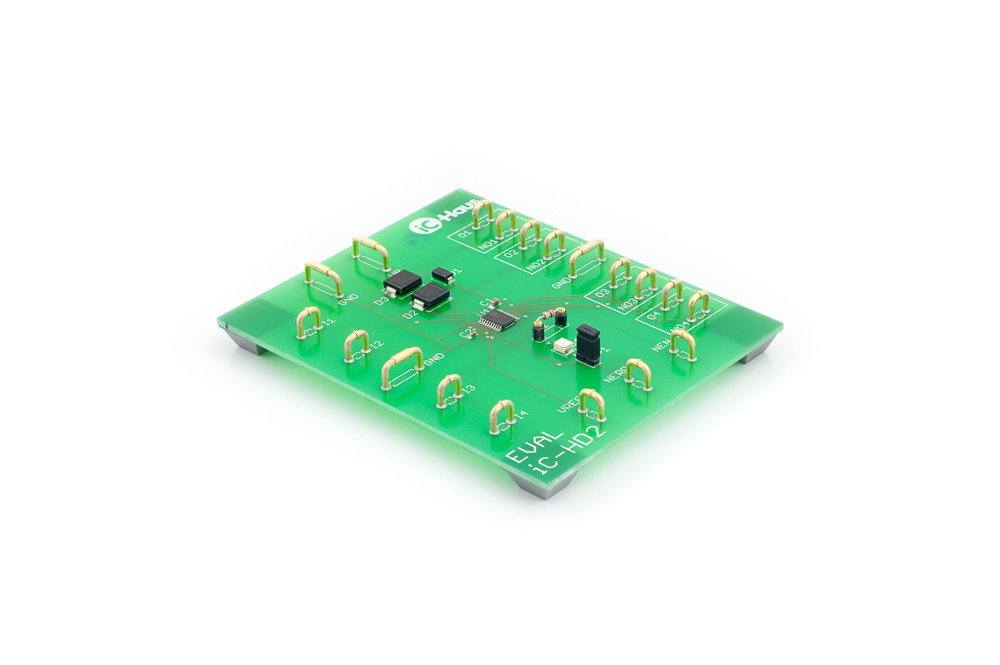

iC-HD2 EVAL HD2_1D is the evaluation board for iC-HD2.

Product description

iC-HD2 is a robust line driver for industrial 5 V and 24 V applications with four complementary output channels. At a supply of 24 V the push-pull driver stages typically provide 200 mA to discharge the line and also have a low saturation voltage (of typically 200 mV with a 40 mA low-side load). The outputs are current limited and short-circuit-proof, shutting down with excessive temperature. VREF acts as a 5 V voltage supply for external loads of up to 5 mA.
