iC-HD7 EVAL HD7_1D

Evaluation Board iC-HD7 (incl. 2 IC samples)

This is a B2B shop.
Orders will be fulfilled and shipped to business
clients with a valid address in Germany.

Please login or register.

Article description

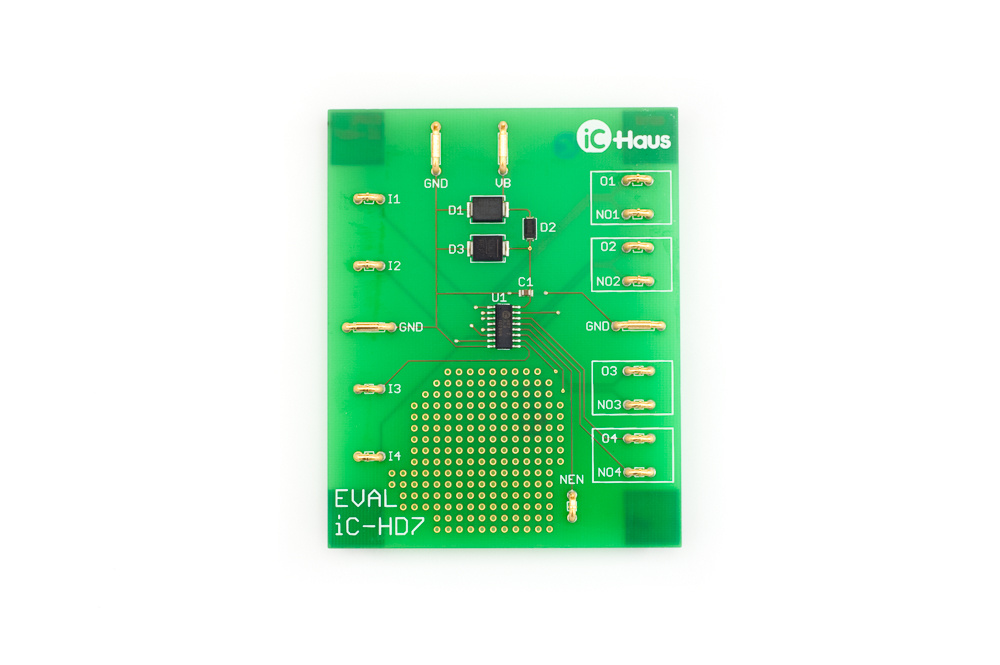

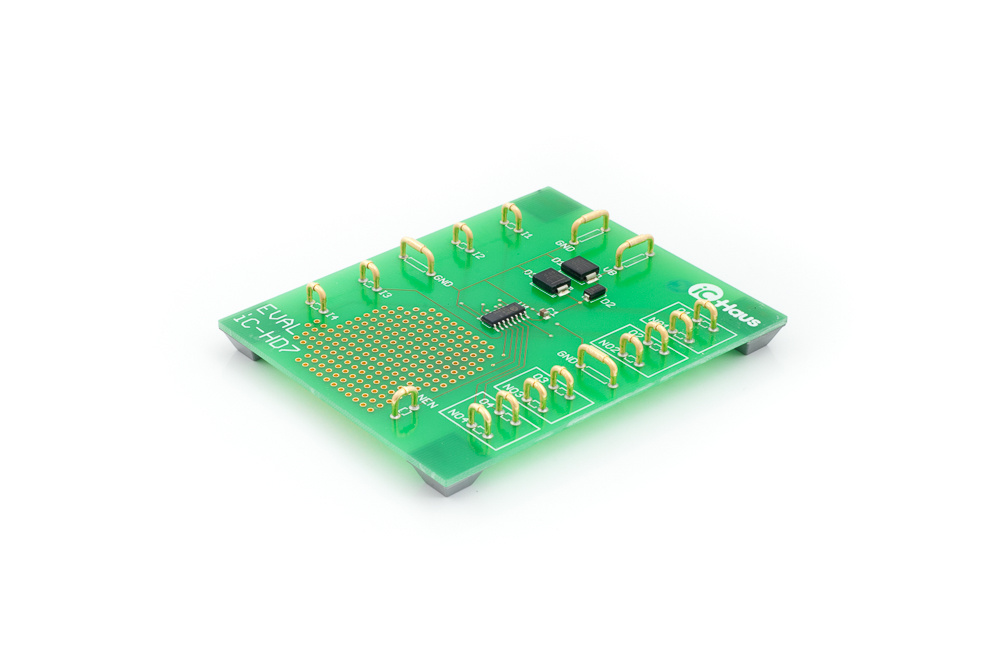

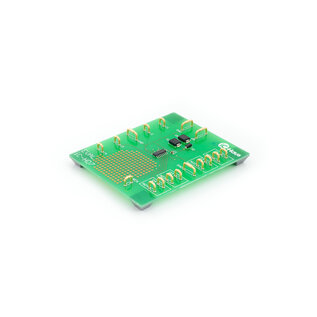

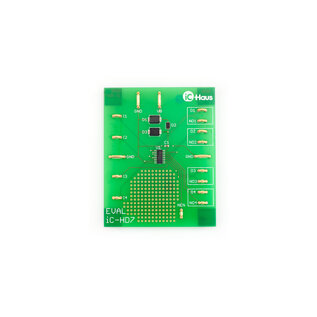

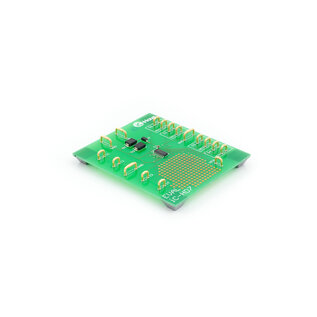

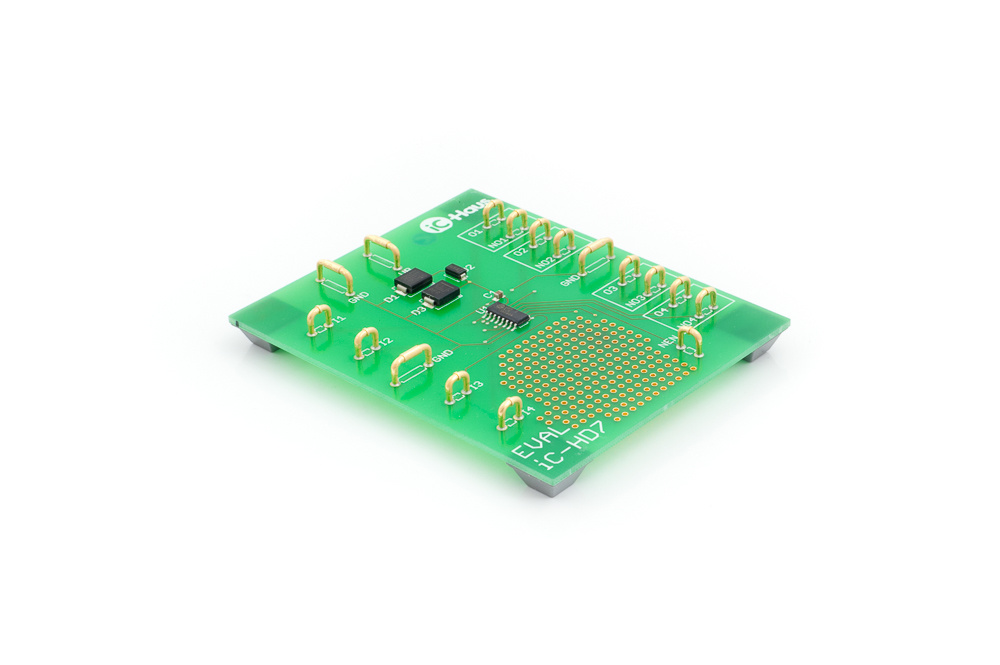

iC-HD7 EVAL HD7_1D is the evaluation board for iC-HD7.

Product description

iC-HD7 is a robust line driver for industrial 5 V and 24 V applications with four complementary output channels.
At a supply of 24 V the push-pull driver stages typically provide 200 mA to discharge the line and also have a low saturation voltage (of typically 200 mV with a 40 mA low-side load). The outputs are current limited and short-circuit-proof, shutting down with excessive temperature.
