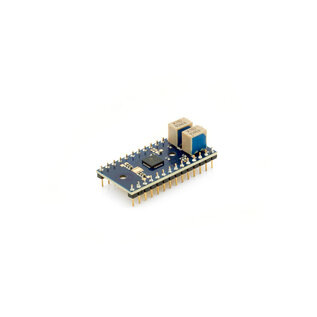

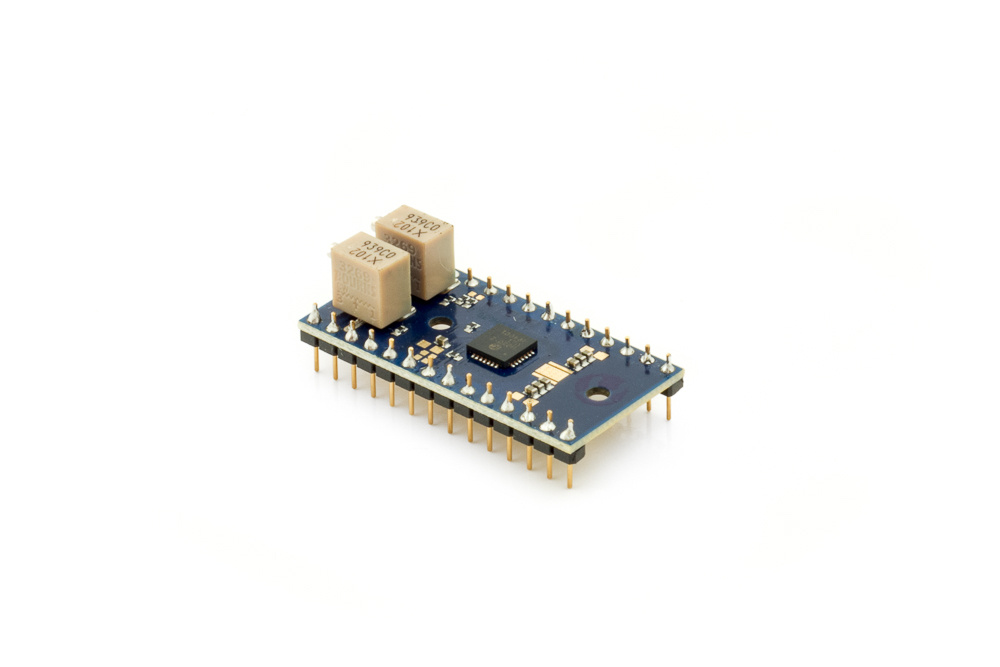

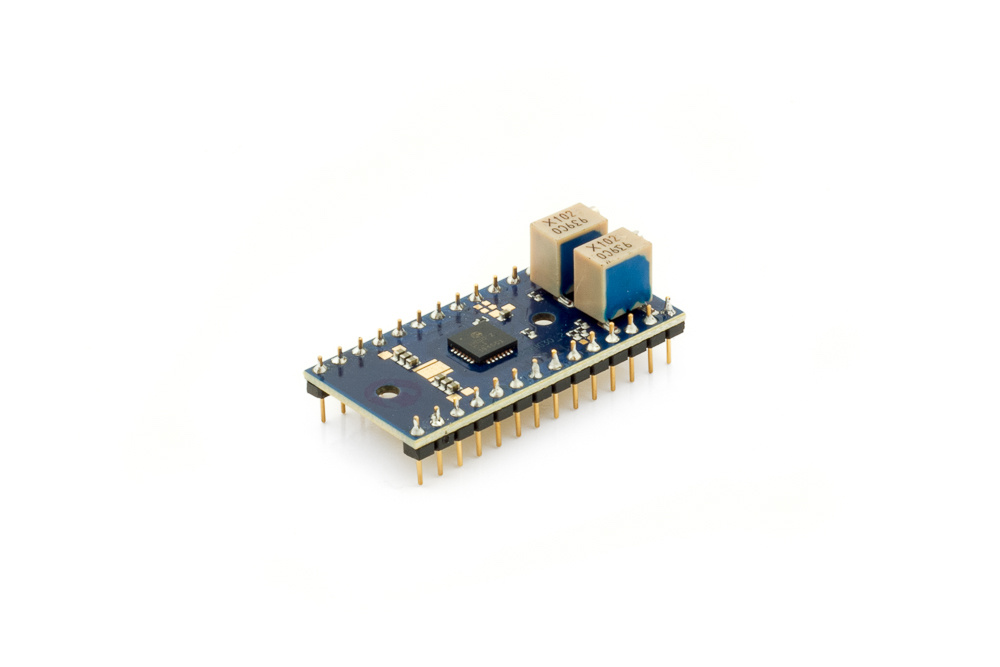

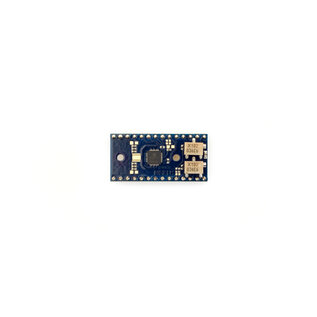

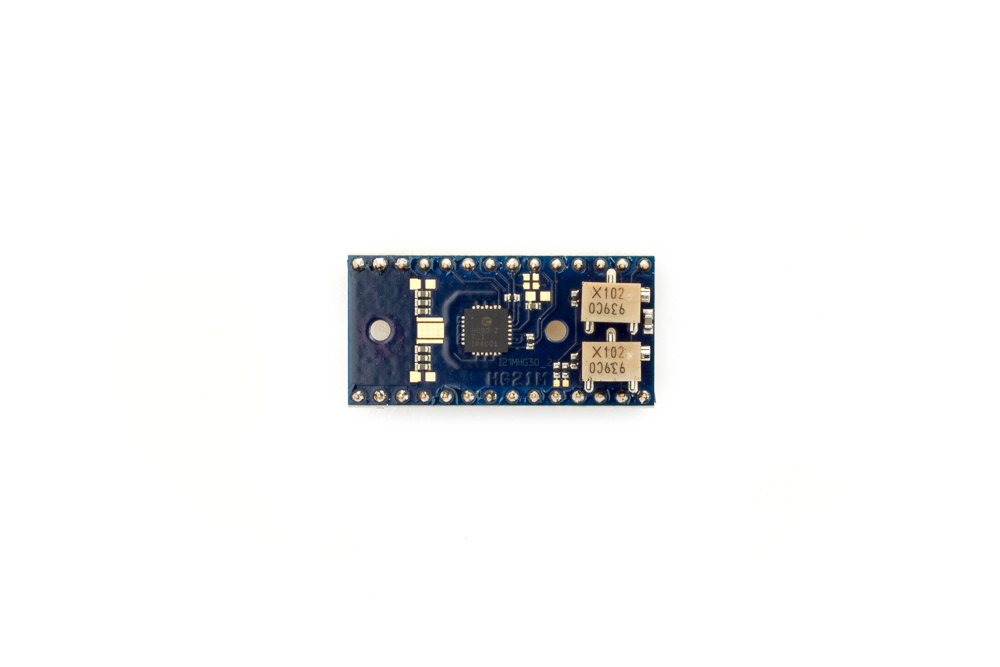

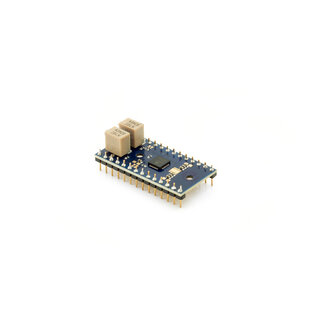

iC-HG30 is the evaluation board for evaluating, testing, and measuring of iC-HG30 .
Six channel laser switch iC-HG30 enables the spike-free switching of laser diodes with well-defined current pulses at frequencies ranging from DC to 250 MHz.
Outputs (LDKx) are 30 V capable for stacked laser diodes.
The diode current is set by the voltages at pins CIx.
The switches are controlled via TTL/LVDS inputs.
Each channel can be operated at up to 1 A CW and 5 A pulsed current, depending on the frequency, duty cycle and heat dissipation.
