155 MHz Laser Switch

This is a B2B shop.
Orders will be fulfilled and shipped to business
clients with a valid address in Germany.

Please login or register.

Product description

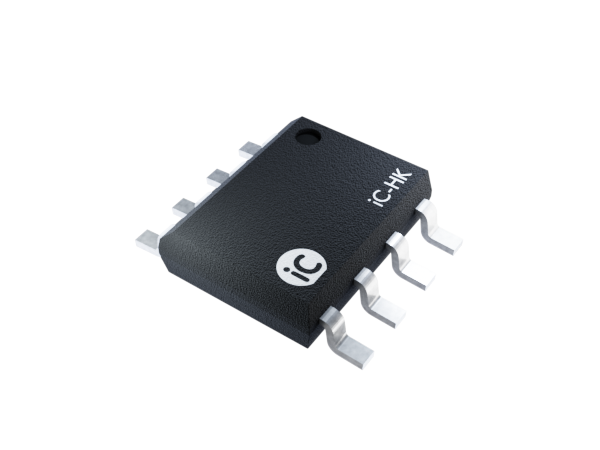

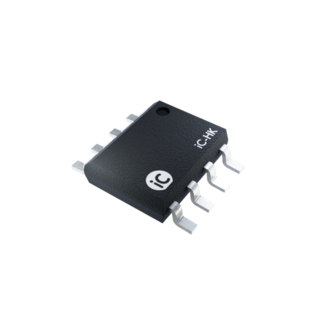

Laser Switch iC-HK enables the spike-free switching of laser diodes with well-defined current pulses at frequencies ranging from DC to 155 MHz.

The diode current is set by the voltage at pin CI and by the resistors RK1 and RK2. The two fast switches are controlled independently via CMOS inputs EN1 and EN2.

Each channel can be operated at 150 mA DC and up to 700 mA pulsed current depending on the frequency, duty cycle and heat dissipation.


  • Laser switch for frequencies from CW up to 155 MHz
  • Spike-free switching of the laser current
  • Dual switching inputs with independent current control
  • Operates as a voltage-controlled current source
  • Pulsed operation with up to 700 mA per channel
  • CW operation with up to 150 mA per channel
  • Simple power control at pin CI
  • Thermal shutdown


  • Data transmission
  • Laser scanning devices
  • Optical storage devices
