iC-HN iCSY HN1M

High Speed Laser Module

This is a B2B shop.
Orders will be fulfilled and shipped to business
clients with a valid address in Germany.

Please login or register.

Article description

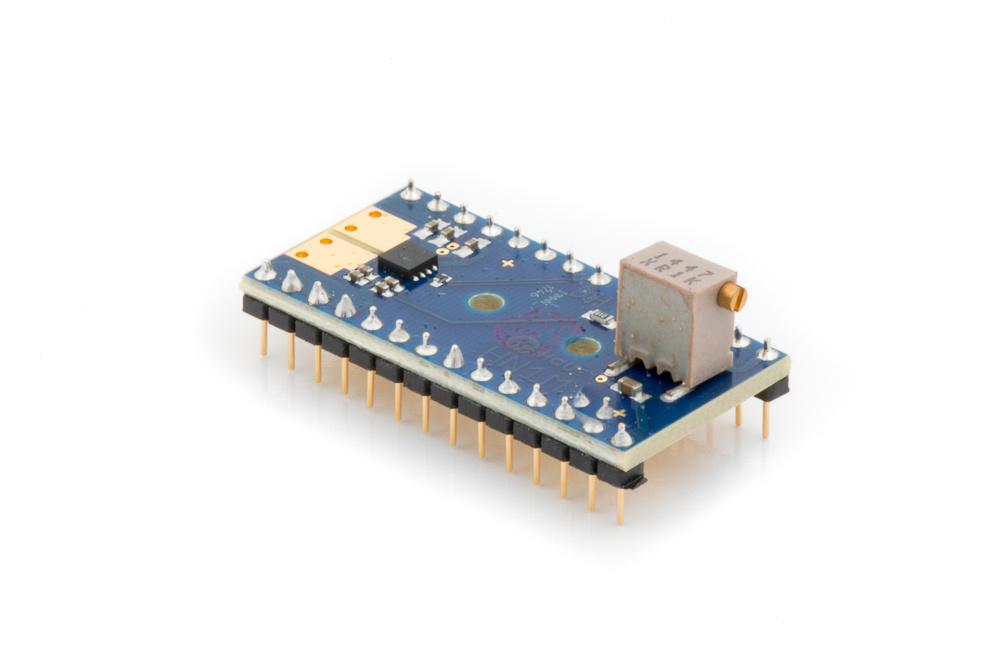

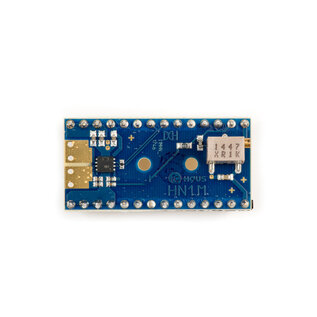

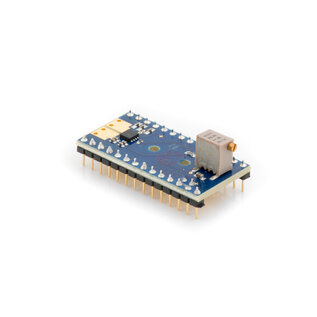

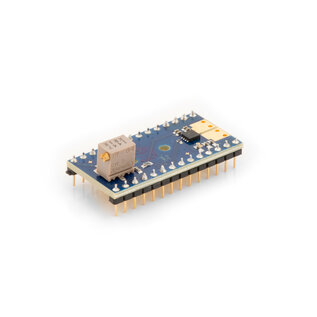

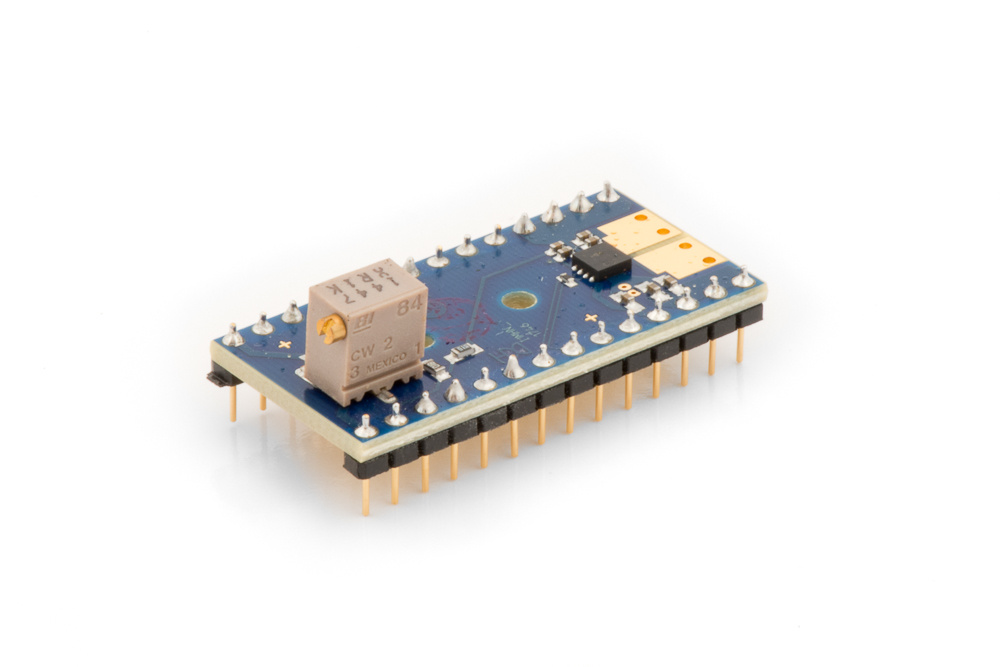

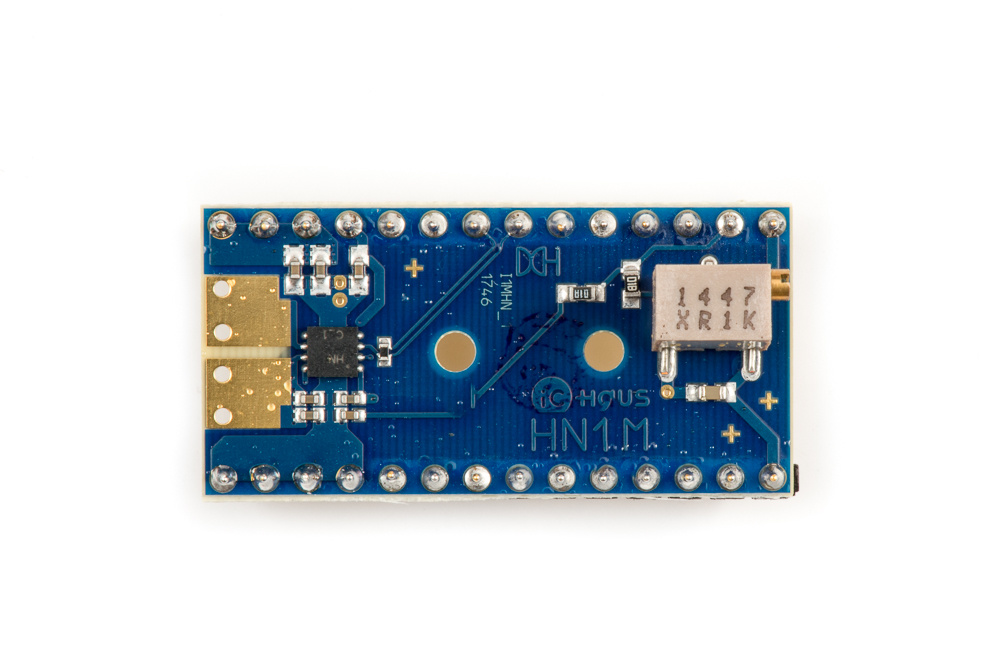

iC-HN iCSY HN1M is the evaluation board for evaluating, testing, and measuring of iC-HN.

Product description

Laser switch iC-HN enables spike-free switching of laser diodes with well-defined current pulses. The pulse width is adjustable down to 2 ns. The diode current is determined by the voltage at pin CI. The switch is controlled via LVDS inputs. The output channel can be operated up to 1.4 A pulsed current depending on the frequency, duty cycle, and heat dissipation. With a laser supply voltage of up to 30 V, the iC-HN covers a wide range of laser sources and enables the connection of multiple lasers in series.

Features

  • Pulsed operation with up to 1.4 A
  • Spike-free switching of the laser current
  • Operates as switched, voltage-controlled current sink
  • Up to 30 V laser supply voltage
  • LVDS switching input

Applications

  • TOF Range Finders
  • LIDAR
  • 3D scanning
  • Gesture recognition
  • IR security illumination
