iC-LFH320 EVAL LFH1M

Evaluation Board for iC-LFH320

This is a B2B shop.
Orders will be fulfilled and shipped to business
clients with a valid address in Germany.

Please login or register.

Article description

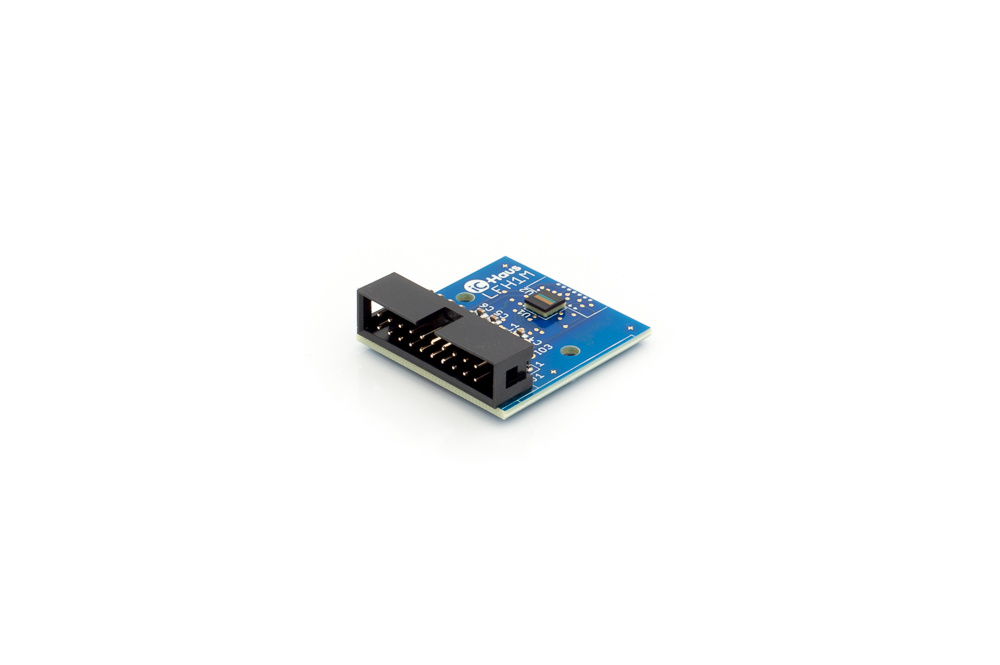

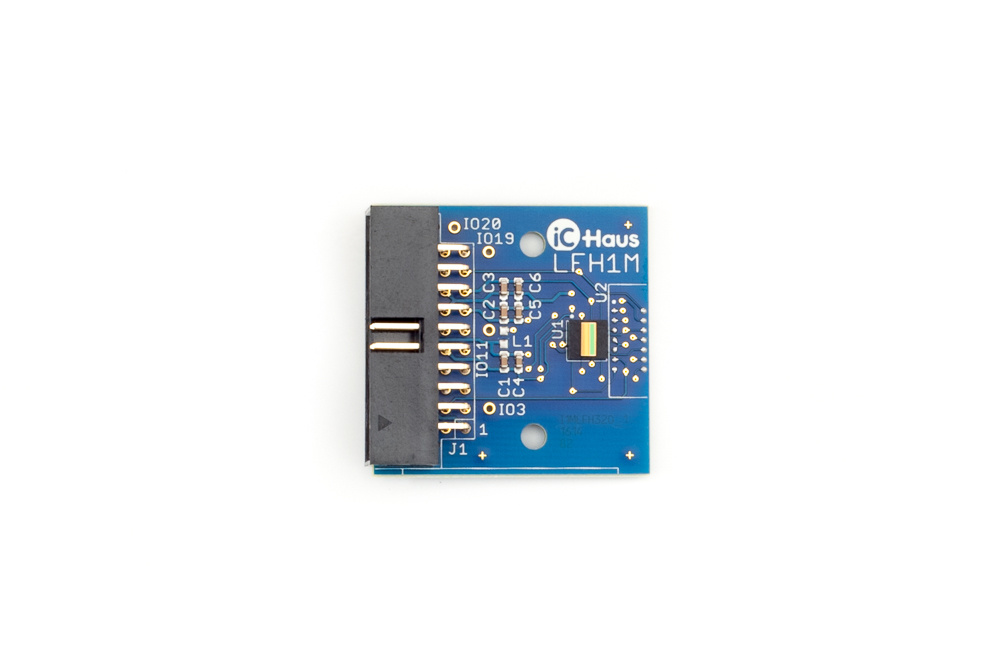

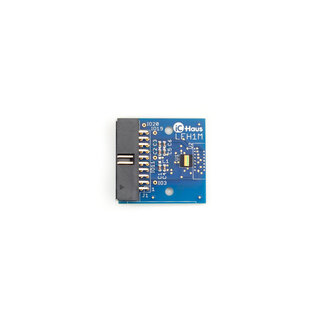

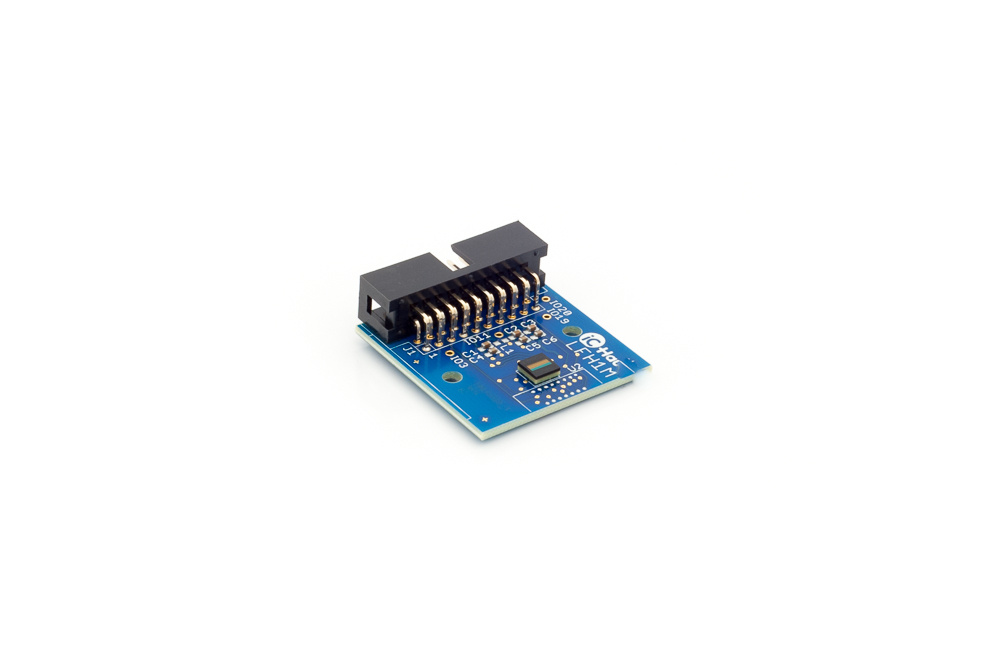

iC-LFH320 EVAL LF1M is the evaluation board for evaluating, testing, and measuring of iC-LFH320.

Product description

iC-LFH Series are integrating light-to-voltage converters with 1024/960/640/320 pixels pitched at 12.7 µm (center-to-center distance). Each pixel consists of a 12.7 µm x 600 µm photodiode, an integration capacitor, and a sample-and-hold circuit.

The control logic makes operation very easy, with only a start and clock signal necessary. A third input (ESH) optionally controls the
asynchronous, global shutter.

iC-LFHxxx is suitable for high pixel clock rates of up to 5 MHz.

Features

  • 1024/960/640/320 active photo pixels with 12.7 µm x 600 µm (2000 DPI)
  • Pin-selectable resolution of 2000, 1000, 500 and 250 DPI (binning or averaging selectable)
  • Asynchronous, global shutter enables flexible integration times
  • Integrating L-V conversion followed by a sample & hold circuit
  • High sensitivity and uniformity over wavelength
  • High pixel clock rate of up to 5 MHz
  • 3 V capable analogue output with separate supply pin
  • Push-pull output amplifier

Applications

  • Triangulation sensors
  • Contact image sensors
  • CCD replacement
