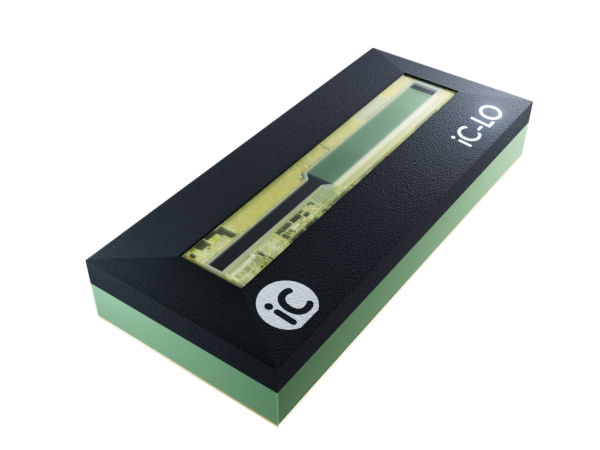

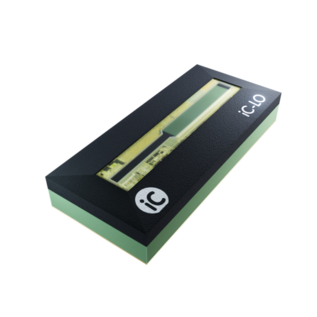

iC-LO oBGA LO1C IR-Filter

Smart triangulation sensor with filter glass

This is a B2B shop.
Orders will be fulfilled and shipped to business
clients with a valid address in Germany.

Please login or register.

Product description

iC-LO is a SOC for diffuse reflective photoelectric sensors based on the principle of triangulation.
iC-LO requires only a LED, a low-cost microcontroller and an output driver.
The comparator signals, programmable filter and multiple measurements generate the output signal.
The very high dynamic range is solved by the dynamic gain with a logarithmic characteristic that is adjusted to the intensity of the received light.
The programmable integrated LED driver directly controls timing and current.

Features

  • Programmable SOC with image sensor, signal processing, and LED driver
  • Specially formed optical sensor comprising 129 elements
  • Wide dynamic range of 100 dB and high ambient light suppression of up to 100 kLux with filter glass
  • 2 antivalent switching outputs
  • Alarm message output
  • High switching frequencies
  • Low latency
  • Power-down reset output
  • Write protection for internal registers

Applications

  • Diffuse reflective photoelectric sensors
  • Distance measurement (triangulation)
  • Compact smart optical sensors
