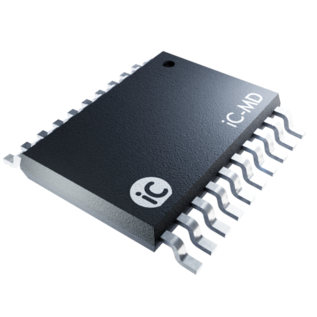

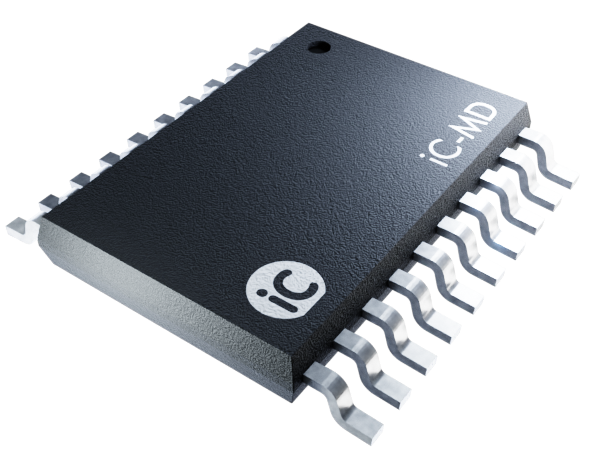

iC-MD TSSOP20

RS422 Quadrature Encoder Receiver/Counter

This is a B2B shop.
Orders will be fulfilled and shipped to business
clients with a valid address in Germany.

Please login or register.

Product description

iC-MD counts incremental quadrature encoder signals with A, B and Z index tracks from up to three encoders.
Up to 1-3 Channel with 16-48 bit counter depth and the interfaces TTL, RS422, or LVDS can be configured.
For distance-coded reference marks additional buffer store the distance between the index pulses.
The Touch Probe input buffers the counter values at each edge.
The status monitors all counters and events and external error and warning pins.
iC-MD is accessible via the SPI or BiSS interface.

Features

  • Configurable 1 - 3 Channel 16 - 48  bit quadrature counter with TTL, RS422 or LVDS input
  • Fast RS422 differential receiver for A/B/Z encoder signals with a count frequency to 40 MHz
  • SPI, BiSS, and Touch Probe interface
  • Count frequency to 40 MHz
  • Monitoring of A/B phase logic with error message
  • Evaluation of distance-coded reference marks
  • Selectable hi/lo edge for touch-probe
  • Error and warning signal generation
  • Operation from 3.3 V to 5 V
  • Two actuator output signals
  • Default operation mode permits plug & play without programming

Applications

  • Interface for rotary and linear quadrature encoders
  • Touch Probe measurement systems
  • Motion controller
  • PLC systems
  • Drives
