Article description

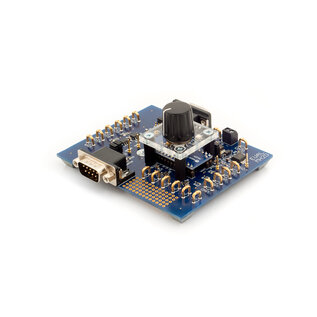

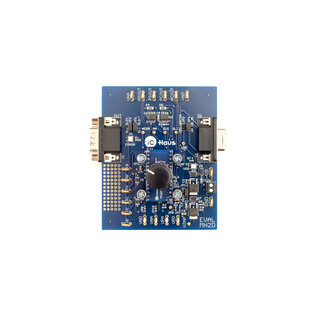

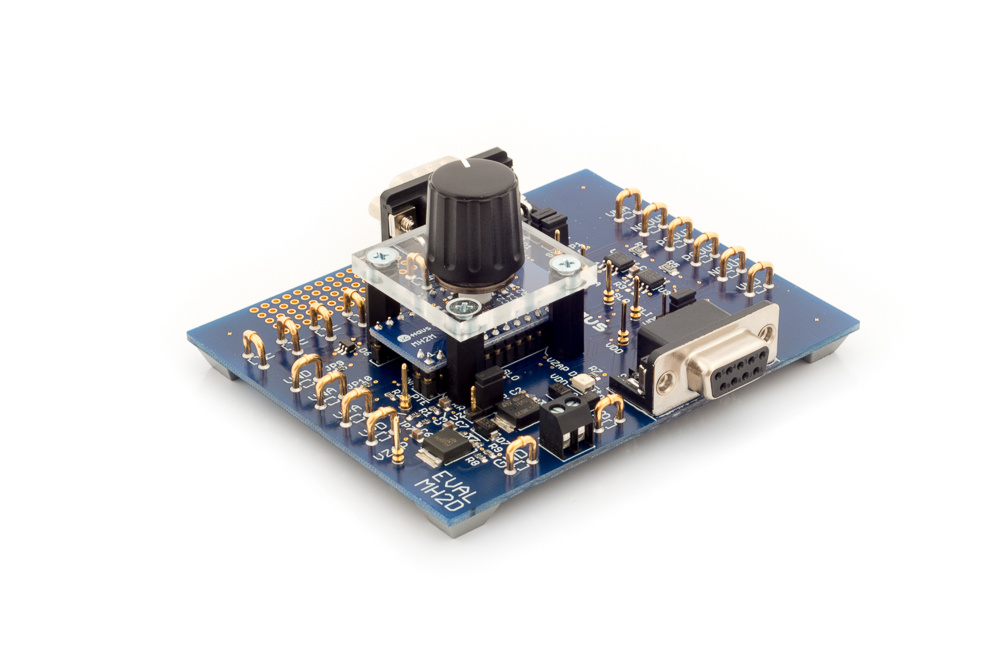

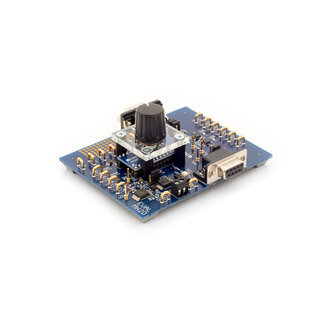

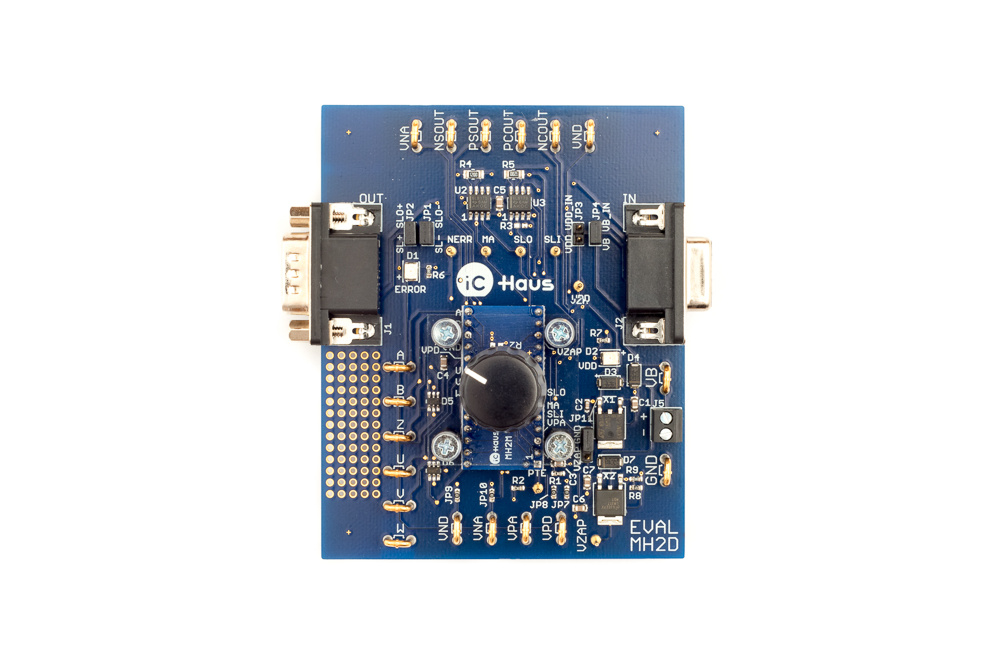

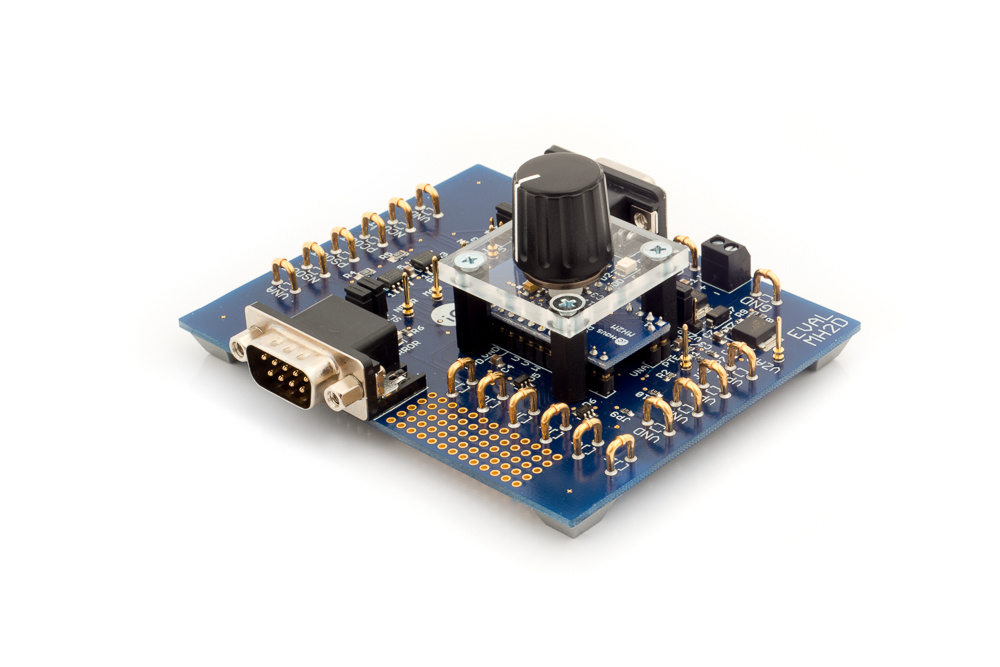

iC-MH EVAL MH2D is the evaluation board for iC-MH.

Product description

The iC-MH 12-bit angular encoder is a position sensor with integrated Hall sensors for scanning a permanent magnet.
The resolution can be programmed up to a maximum of 4096 angular increments per rotation.
The integrated BiSS Interface also enables the position data of several networked sensors to be read out.
The incremental interface with the pins A, B and Z supplies quadrature signals with an edge rate of up to 8 MHz.
