Evaluation Board iC-MH8

This is a B2B shop.
Orders will be fulfilled and shipped to business
clients with a valid address in Germany.

Please login or register.

Article description

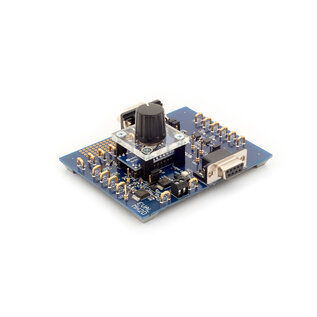

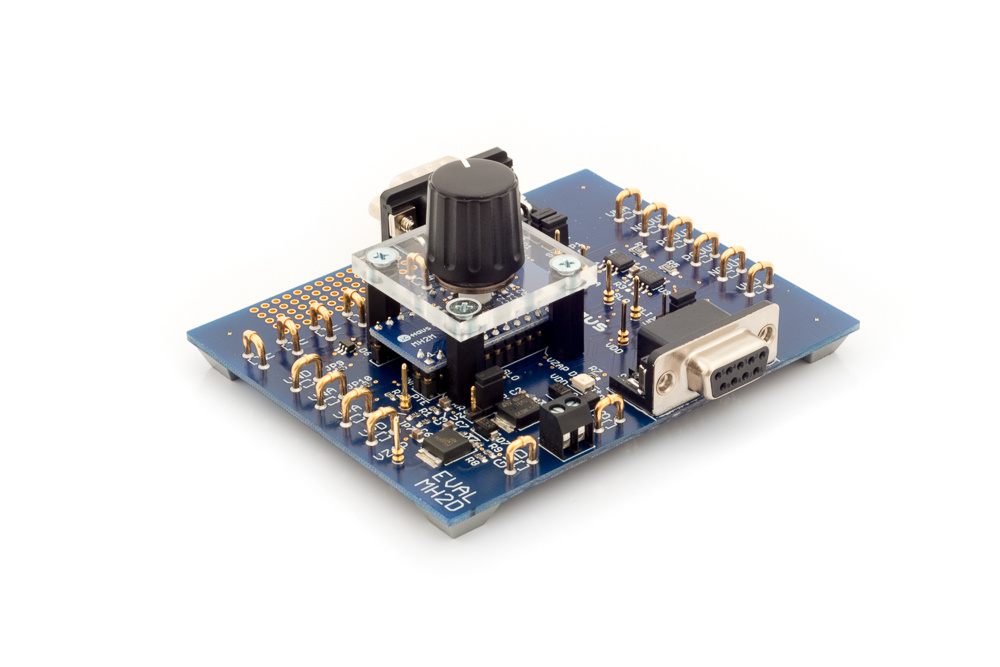

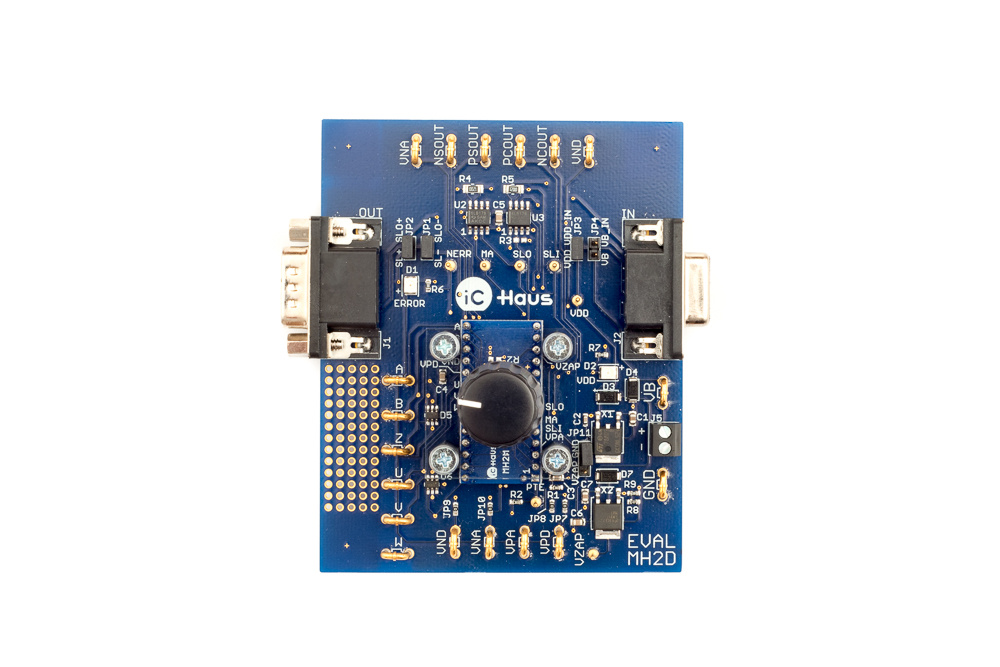

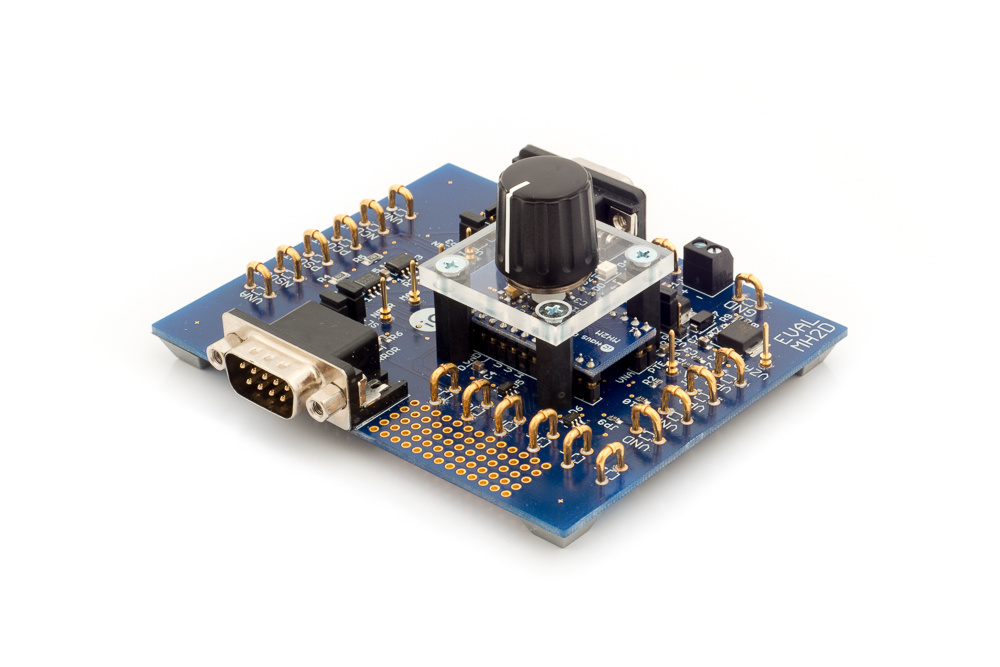

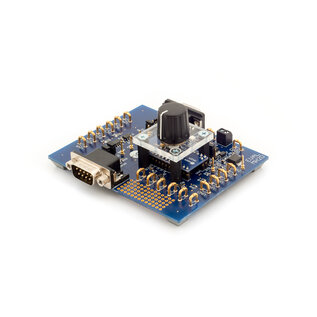

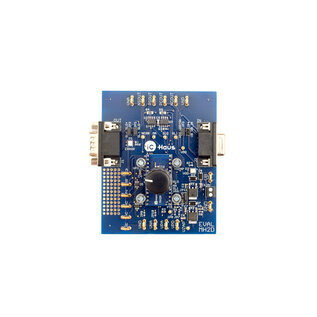

iC-MH8 EVAL MH2D is the evaluation board for iC-MH8.

Product description

The iC-MH8 12-bit angular Hall encoder is a position sensor for scanning a permanent magnet.
The resolution can be configured up to 4096 angular increments per rotation.
The incremental interface with the pins A, B and Z supplies quadrature signals with an edge rate of up to 8 MHz.
The commutation interface with the signals U, V and W provides 120° phase-shifted signals for block commutation of eight pole EC motors.
Sine and cosine signals are externally available to facilitate adjustment.
