Analog Angular Hall Sensor with Sin/Cos Output

This is a B2B shop.
Orders will be fulfilled and shipped to business
clients with a valid address in Germany.

Please login or register.

Email us about this product

Product description

The iC-MHA is a position sensor with integrated Hall sensors for scanning a permanent magnet.
The signal conditioning unit generates constant-amplitude sine and cosine voltages that can be used for angle calculation.

Sine and cosine signals are availabe via line driver outputs (100 Ω load)

Features

Differential sine and cosine output signals
Magnetic rotation speed up to 20,000 rpm
Low output offset supporting 10bit interpolation accuracy
Reasonable alignment tolerance
Automatic gain control for 0.8 to 1.2 Vpp output signal
Loss of magnet detection and error message indication
Extended temperature range of -40 to +125 °C

Applications

Absolute angular encoder
Brushless motors
Motor feedback
Rotational speed control

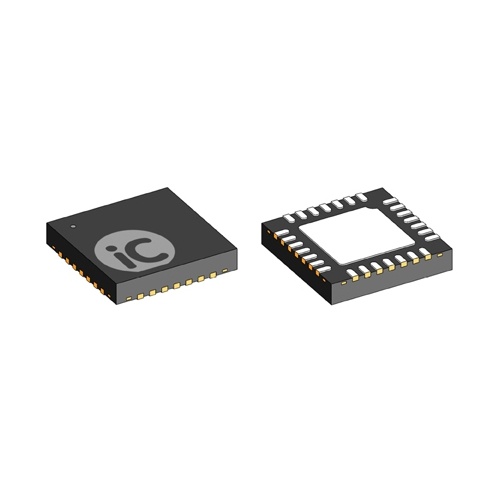

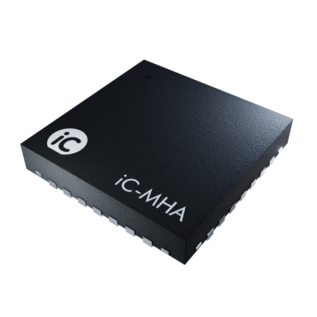

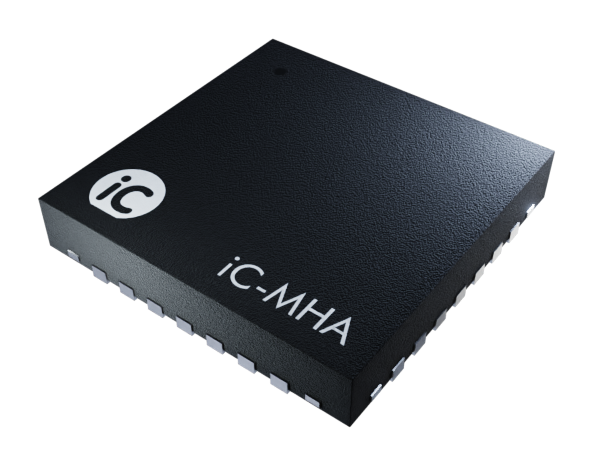

iC-MHA QFN28-5x5
