iC-MU EVAL MU1D

Evaluation Adapter Board for MU1M, MU2M and MU6M

This is a B2B shop.
Orders will be fulfilled and shipped to business
clients with a valid address in Germany.

Please login or register.

Article description

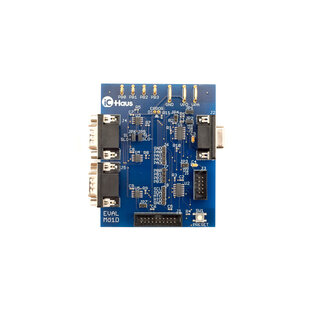

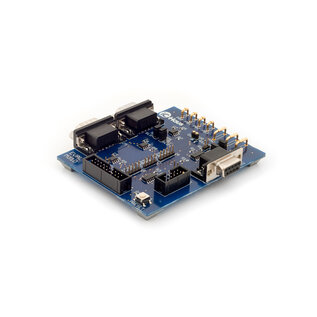

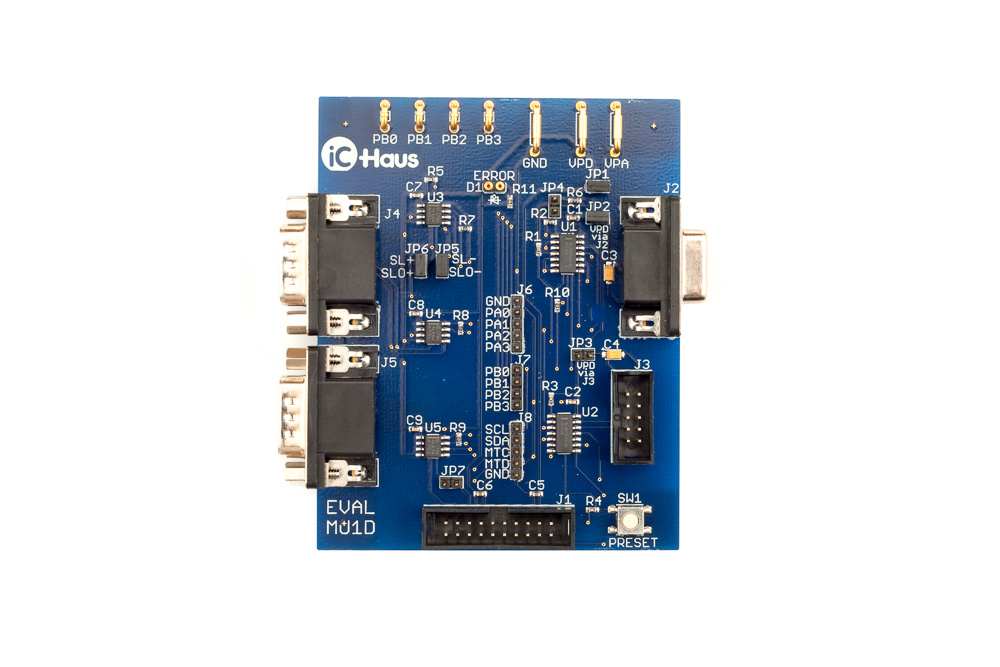

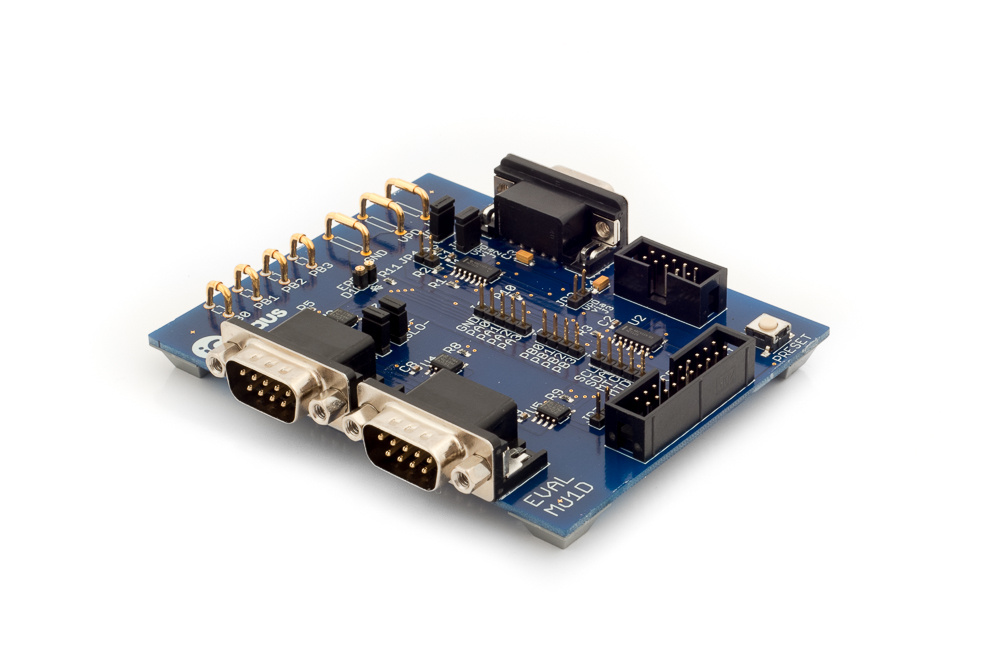

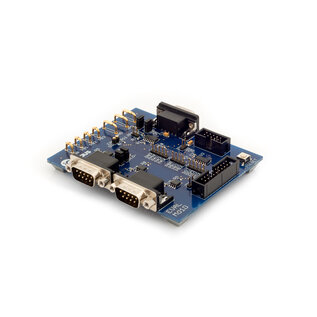

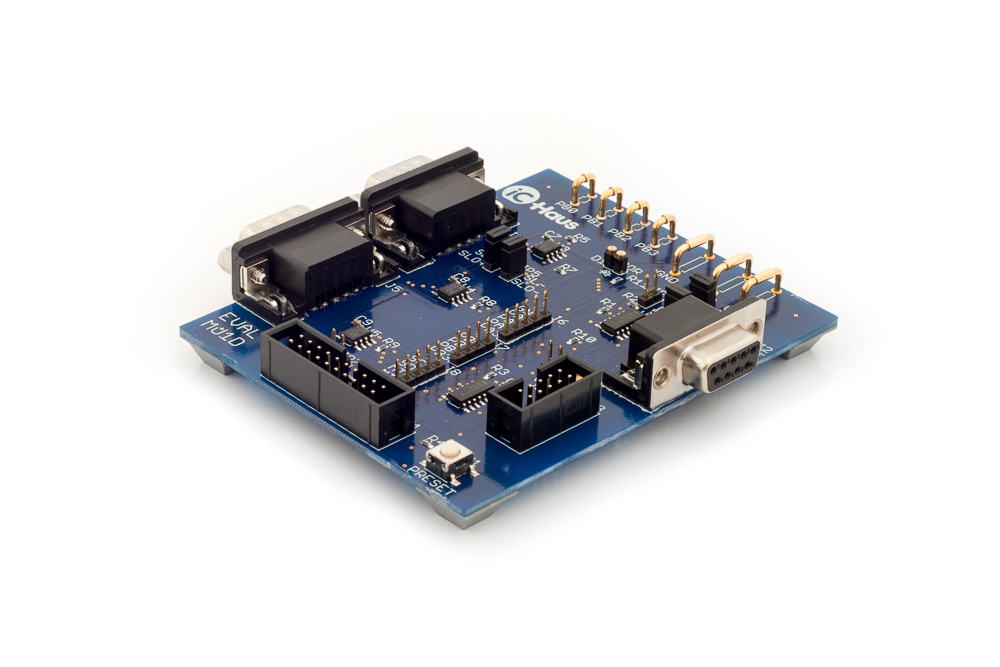

iC-MU EVAL MU1D is the evaluation board for evaluating, testing, and measuring of iC-MU, iC-MU150 or iC-MU200. This board is used to connect either the board MU1M, MU2M or MU6M to the BiSS adapters (e.g. MB4U).

Product description

iC-MU is used for magnetic off-axis position detection with integrated Hall sensors. By scanning two separate channels i.e. the master and nonius track, the device can provide an absolute position within one mechanical revolution.

Position data can be transmitted serially (SSI, BiSS, SPI), incrementally, or analog through two ports in various modes of operation. Commutation signals (U/V/W) for brushless DC (BLDC) motors with up to 16 pole pairs are derived from the absolute position.
