iC-MU EVAL MU5M

Evaluation Adapter Board for MU3C Connection

This is a B2B shop.
Orders will be fulfilled and shipped to business
clients with a valid address in Germany.

Please login or register.

Article description

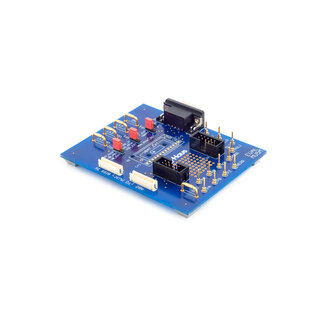

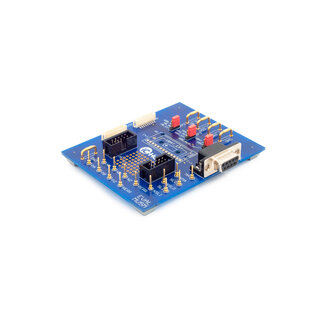

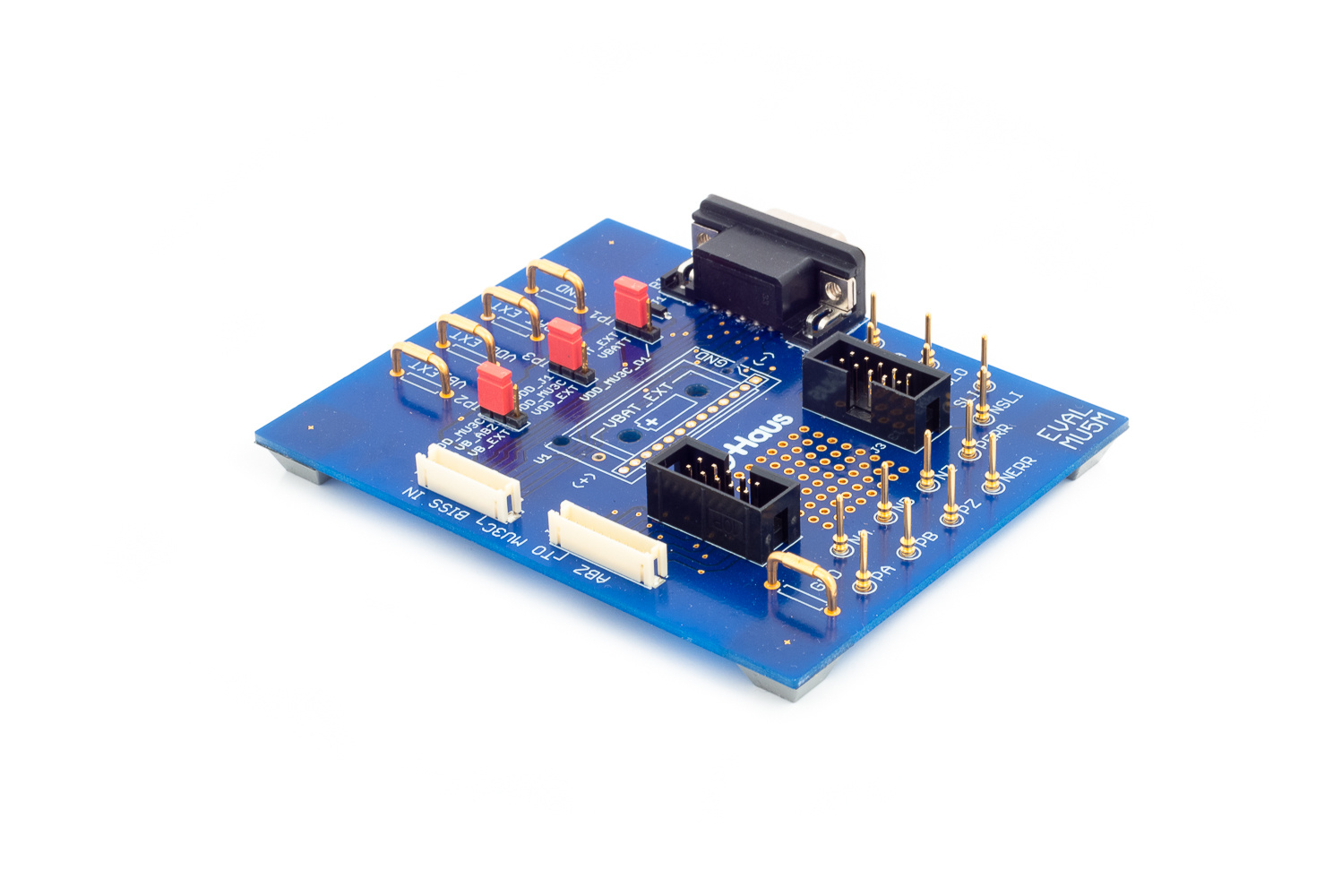

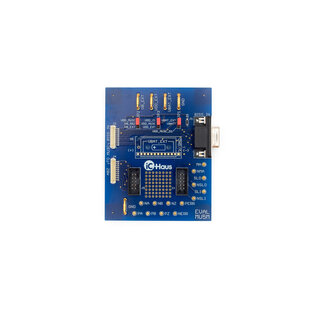

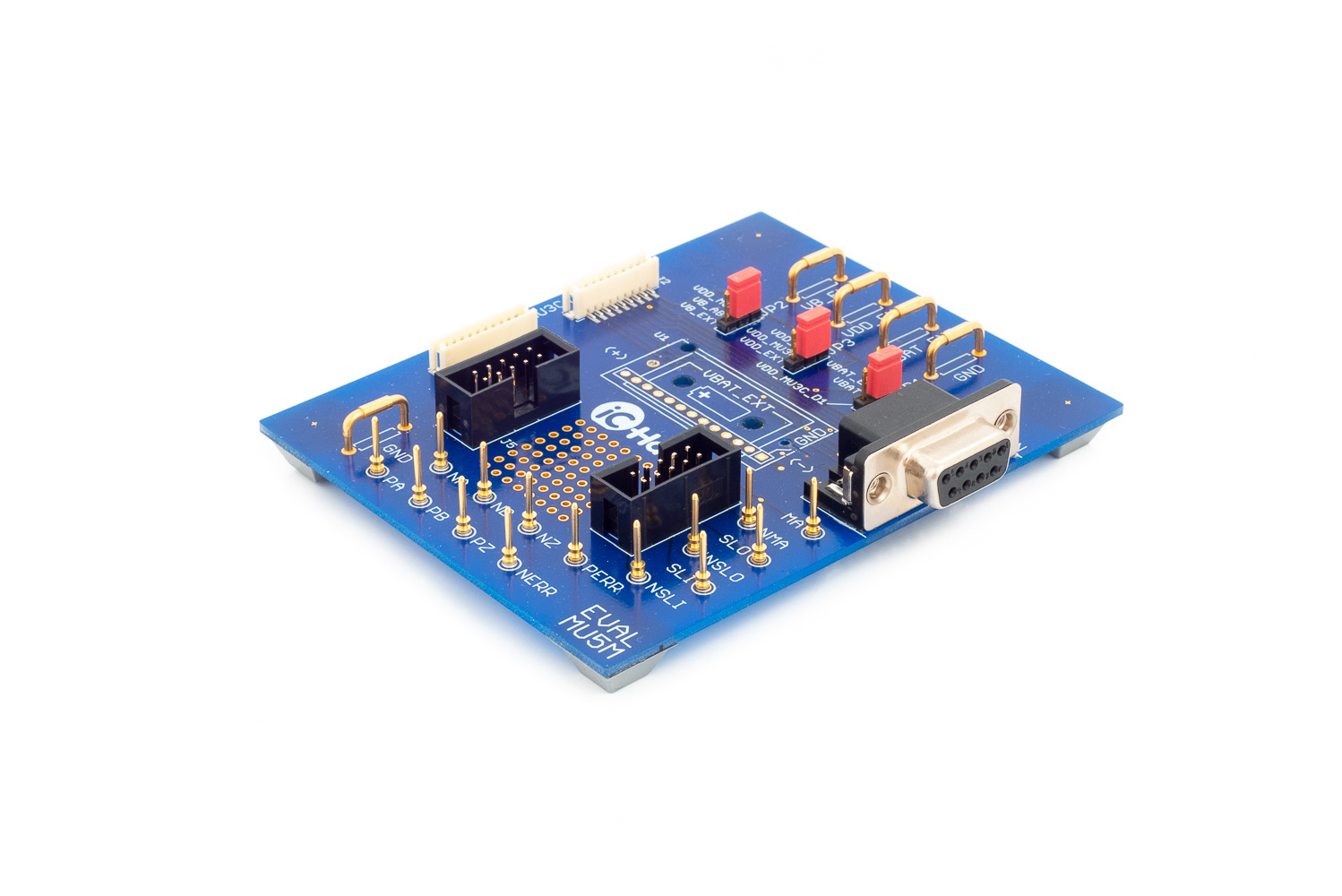

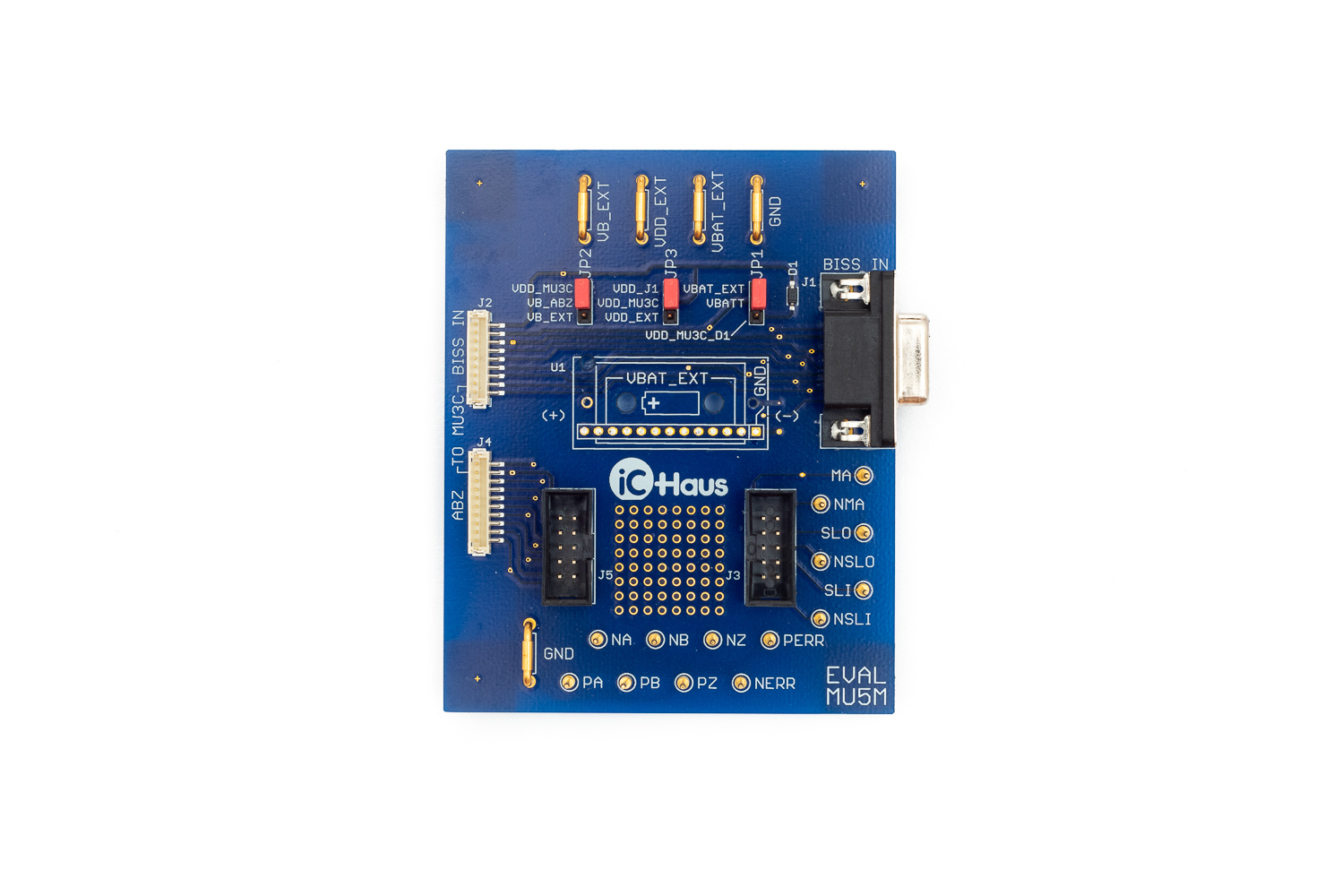

Evaluation board to be used with iC-MU EVAL MU3C. This adapter board is designed to provide easy access to the MU3C electrical interface and includes a BiSS adapter connector. The board also provisions for usage of an external backup battery (1/2 AA) with MU3C (external backup battery is not included).

Product description

iC-MU is used for magnetic off-axis position detection with integrated Hall sensors. By scanning two separate channels i.e. the master and nonius track, the device can provide an absolute position within one mechanical revolution.

Position data can be transmitted serially (SSI, BiSS, SPI), incrementally, or analog through two ports in various modes of operation. Commutation signals (U/V/W) for brushless DC (BLDC) motors with up to 16 pole pairs are derived from the absolute position.
