Eval. Kit iC-MU150 for 2-Track Nonius System

This is a B2B shop.
Orders will be fulfilled and shipped to business
clients with a valid address in Germany.

Please login or register.

Article description

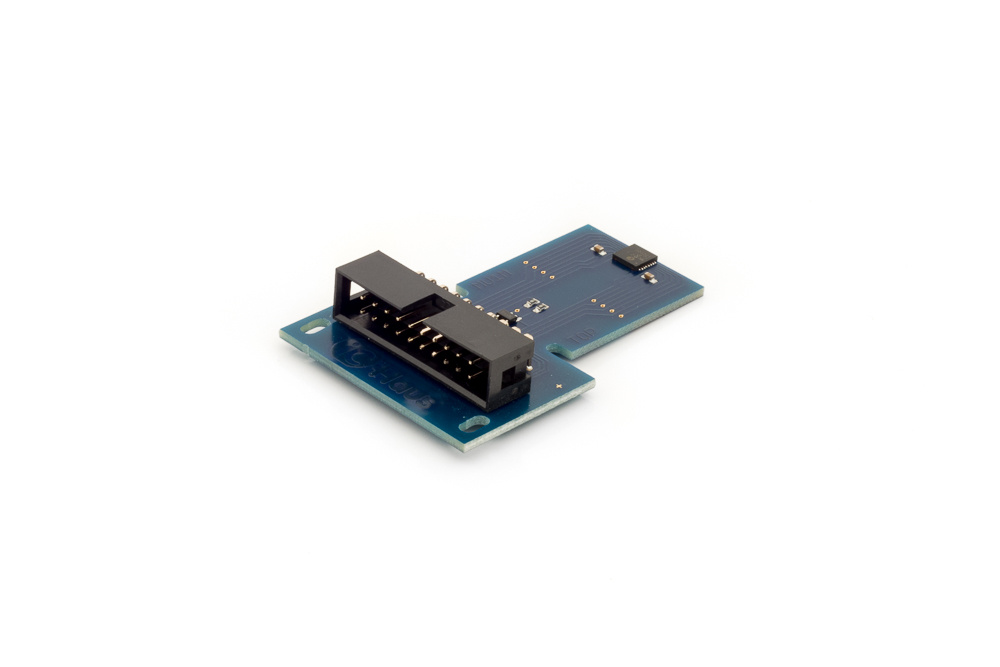

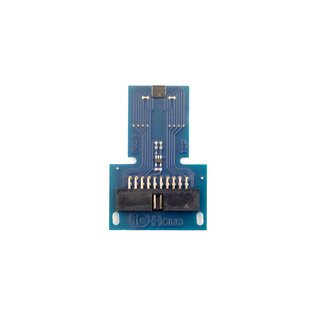

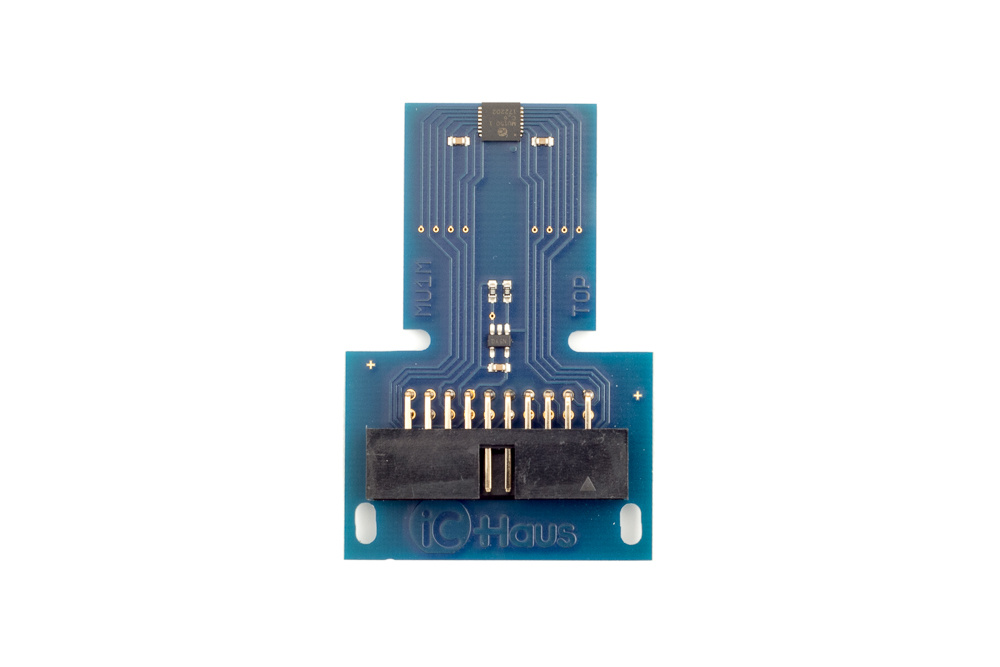

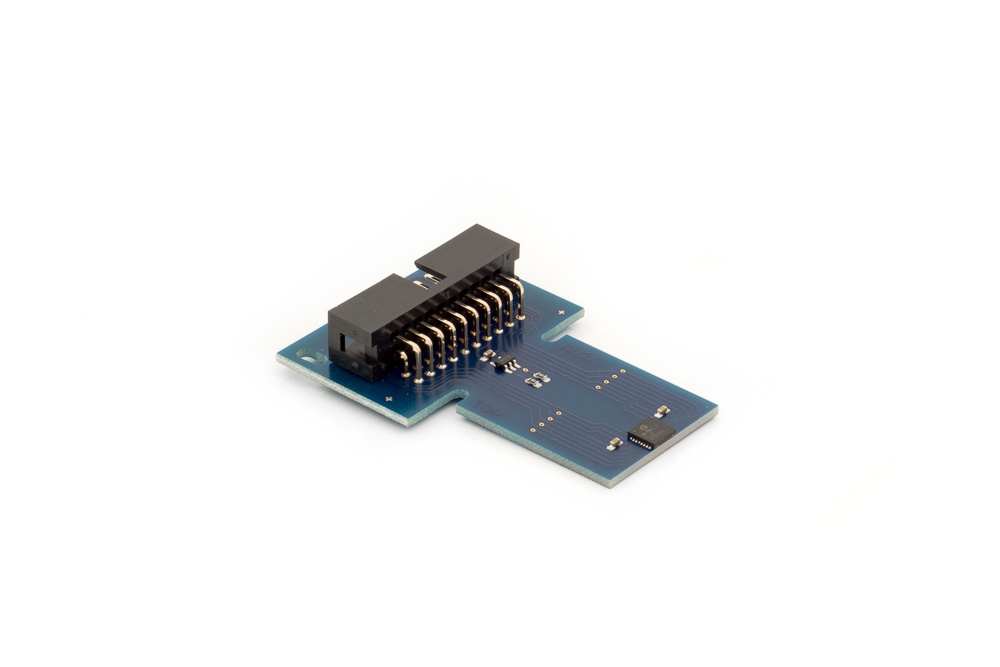

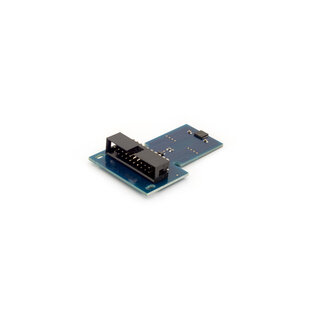

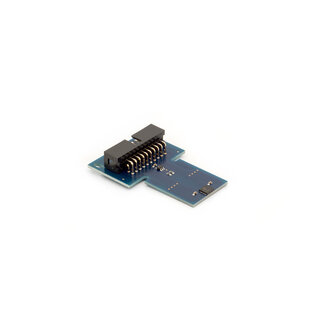

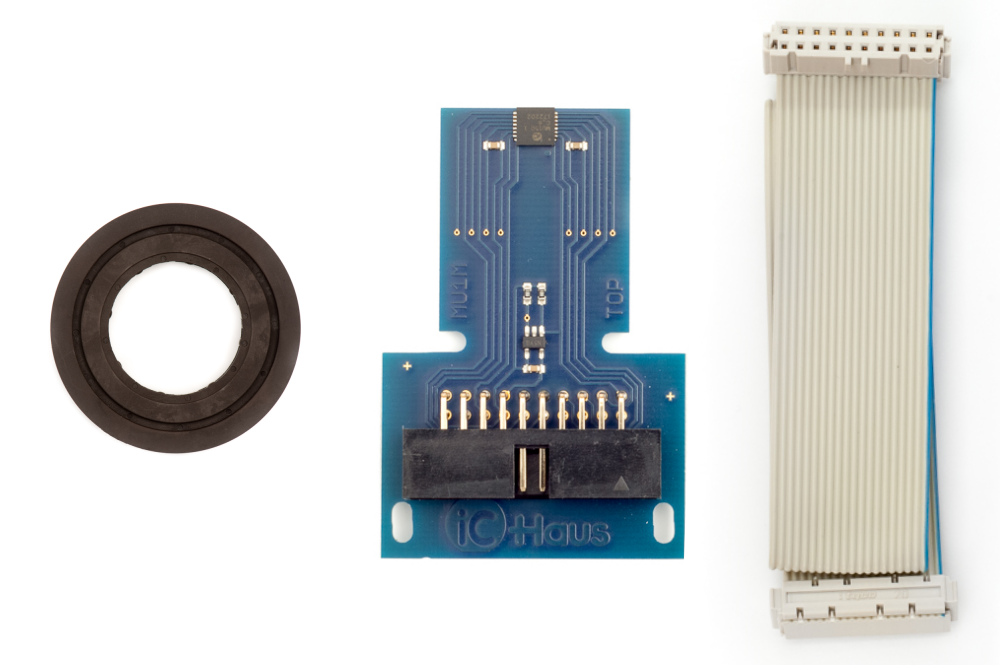

iC-MU150 EVAL MU1M is the evaluation board for evaluating, testing, and measuring of iC-MU150.

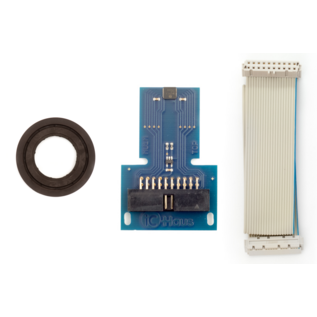

The eval kit includes a magnetic code disc MU28S 34-32N. The adapter board iC-MU EVAL MU1D can be ordered separately.

Product description

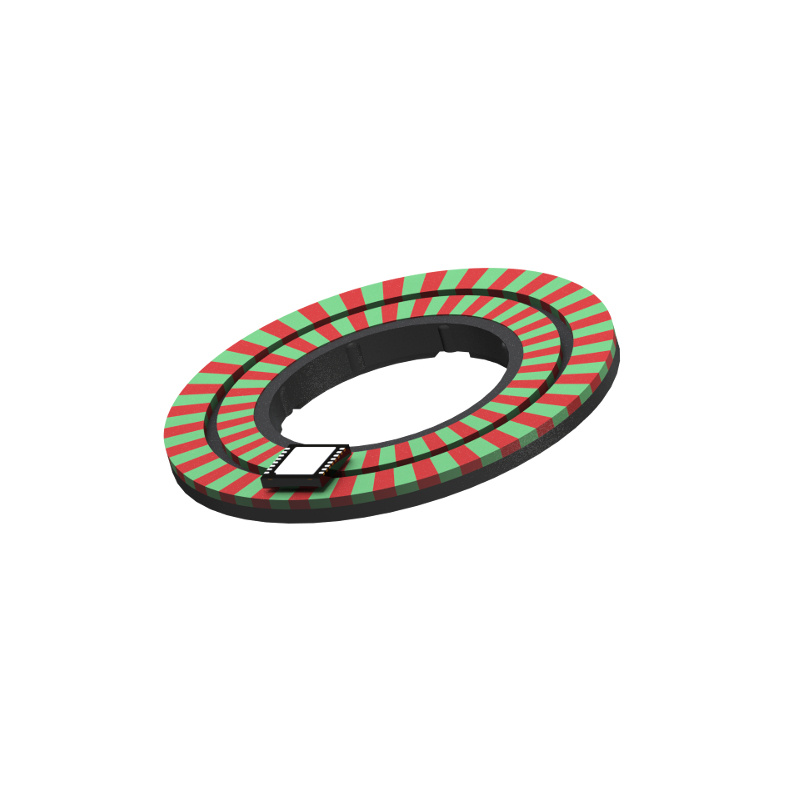

iC-MU150 is used for magnetic off-axis position detection with integrated Hall sensors. By scanning two separate channels i.e. the master and nonius track, the device can provide an absolute position within one mechanical revolution.

Position data can be transmitted serially (SSI, BiSS, SPI), incrementally, or analog through two ports in various modes of operation. Commutation signals (U/V/W) for brushless DC (BLDC) motors with up to 16 pole pairs are derived from the absolute position.
