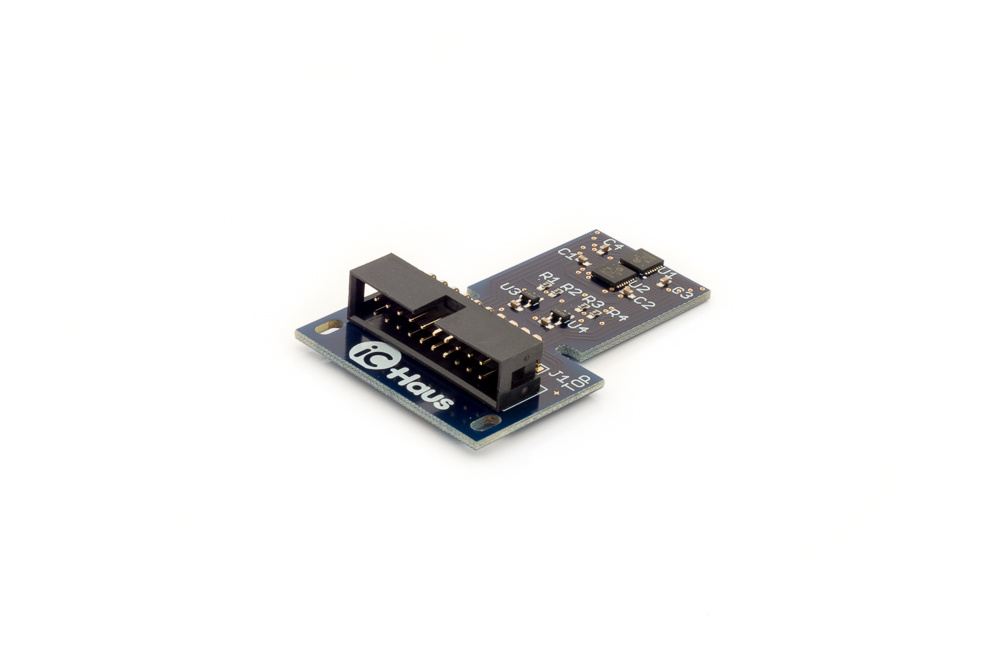

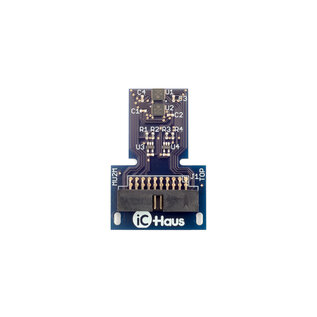

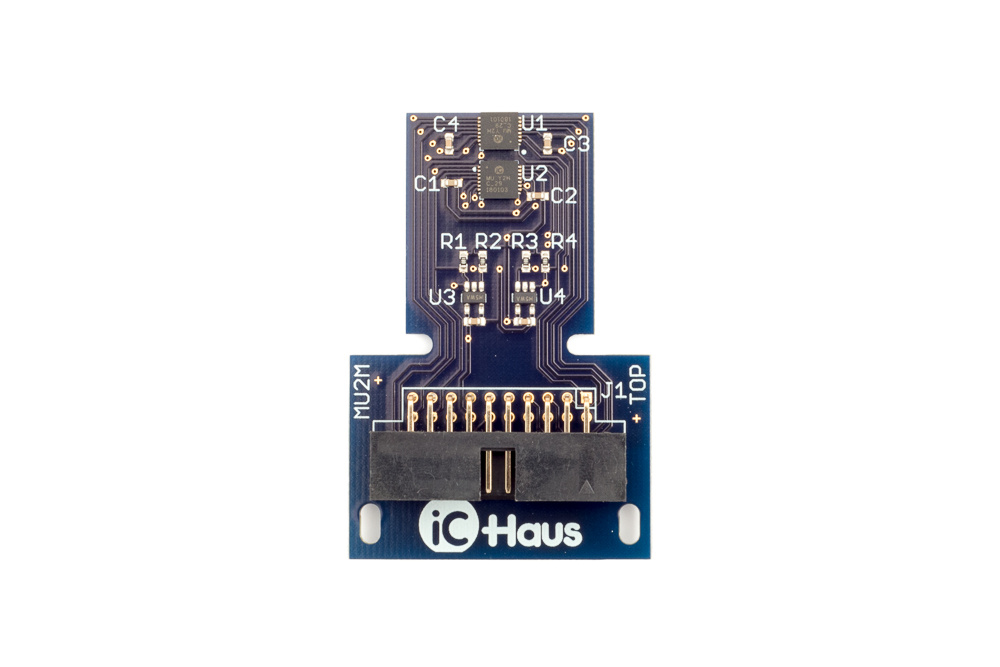

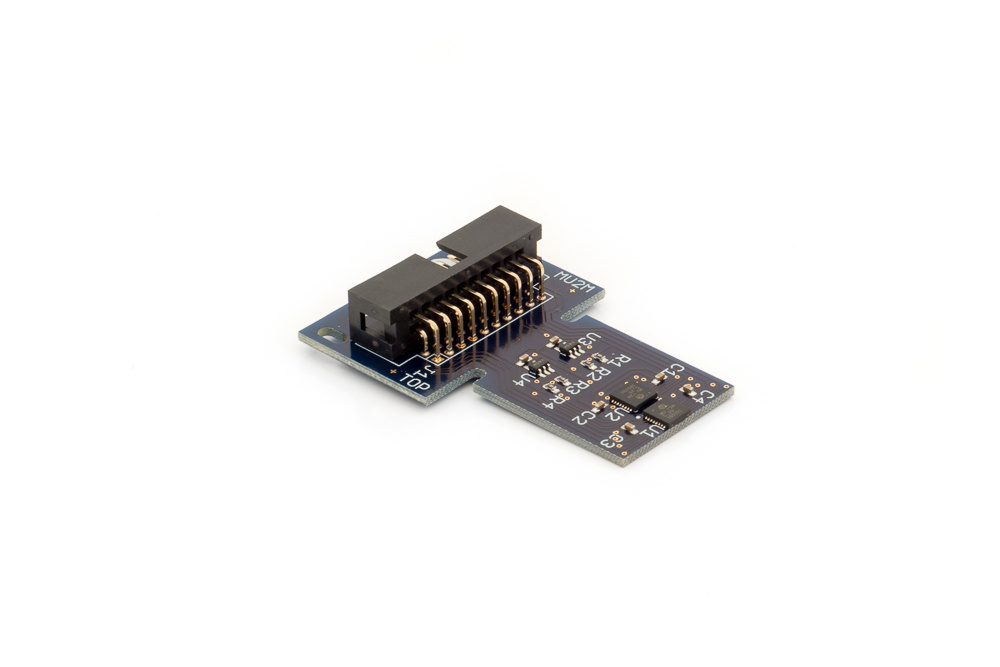

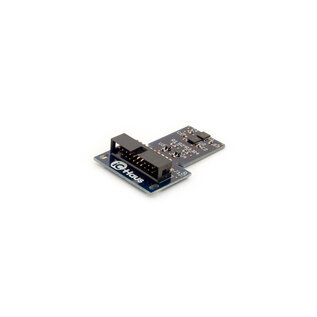

iC-MU150 EVAL MU2M is the evaluation board for evaluating, testing, and measuring of two iC-MU150 for 3-track Nonius systems.
iC-MU150 is used for magnetic off-axis position detection with integrated Hall sensors. By scanning two separate channels i.e. the master and nonius track, the device can provide an absolute position within one mechanical revolution.
Position data can be transmitted serially (SSI, BiSS, SPI), incrementally, or analog through two ports in various modes of operation. Commutation signals (U/V/W) for brushless DC (BLDC) motors with up to 16 pole pairs are derived from the absolute position.
