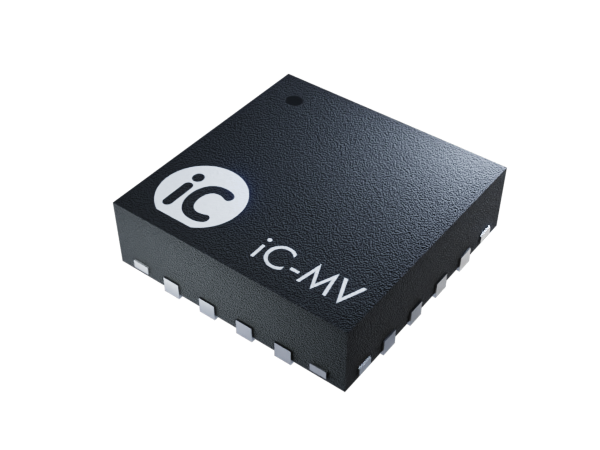

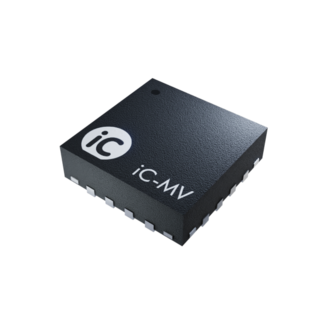

iC-MV QFN16-3x3

8-Bit Hall Encoder with Cascadable Serial Interface

This is a B2B shop.
Orders will be fulfilled and shipped to business
clients with a valid address in Germany.

Please login or register.

Product description

iC-MV is optimized for multiturn measurement systems with up to four axes and gear reduction ratios in between 1:2 and 1:32. Phase angle errors can be compensated by an internal offset register.

Up to four ICs can be connected in series providing the SSI master with an internal synchronized multiturn data word. A missmatch is indicated by pin NERR and via the SSI protocol.

Features

  • Integrated Hall sensors with signal conditioning
  • Automatic gain control with error detection (loss-of-magnet)
  • 8-bit real-time interpolation at up to 24 000 rpm
  • Binary interpolation factors from 2 to 8 bit
  • Programmable zero position
  • Cascadable serial shift register with SSI compatibility
  • Bus-compatible EEPROM I2C interface
  • Standby mode
  • Extended temperature range of -40 to +125 °C

Applications

  • Absolute multiturn encoders
  • Absolute rotary encoders
  • Contactless rotary switches
