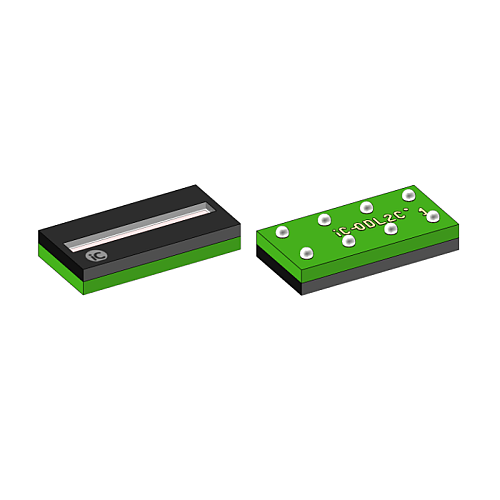

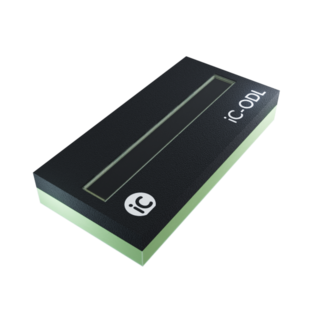

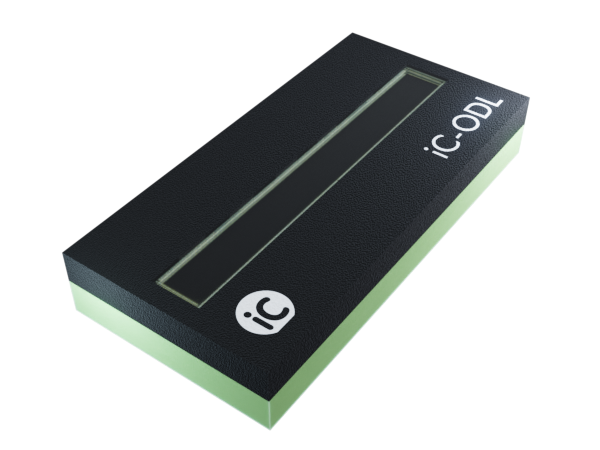

iC-ODL oBGA ODL2C

Product description

The iC-OD/L device is an optical position sensitive detector with a monolithic integrated photodiode.

Constant light and low-frequency variing light are suppressed by a highpass
filter. A lowpass filter reduces high-frequency interference to a minimum. The maximum sensitivity for alternating-light signals is about 100 kHz.

Features

  • Low-noise current amplifier with an integrated position-sensitive photodiode
  • High reliability due to monolithic design
  • Effective photodiode area: 2.6 mm x 0.88 mm (iC-OD) resp. 8.4 mm x 0.88 mm (iC-ODL)
  • High sensitivity for visible light and near infrared
  • Integrated bandpass filter with 100 kHz center frequency
  • High background light suppression
  • Analogue current source output
  • Minimum external circuitry required
  • Low power consumption from 3.9 to 13.2 V supply voltage

Applications

  • Position-sensitive detection of pulse light
  • Receiver for motion or proximity sensors
