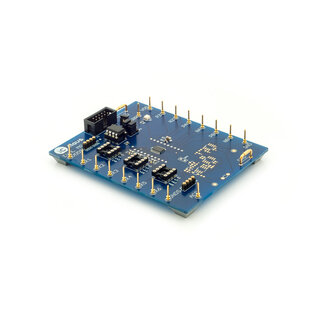

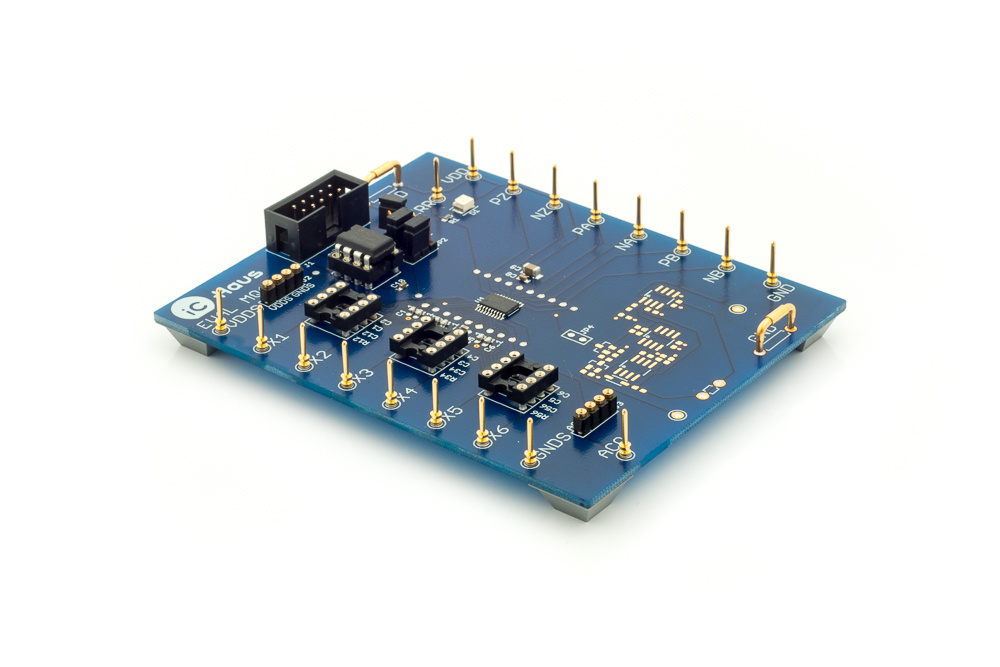

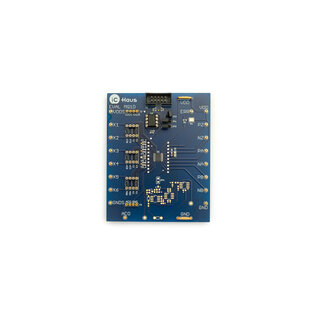

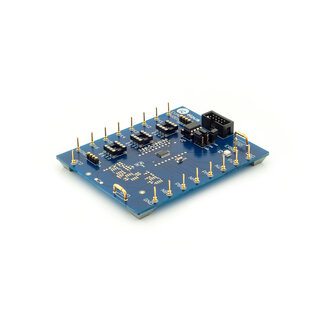

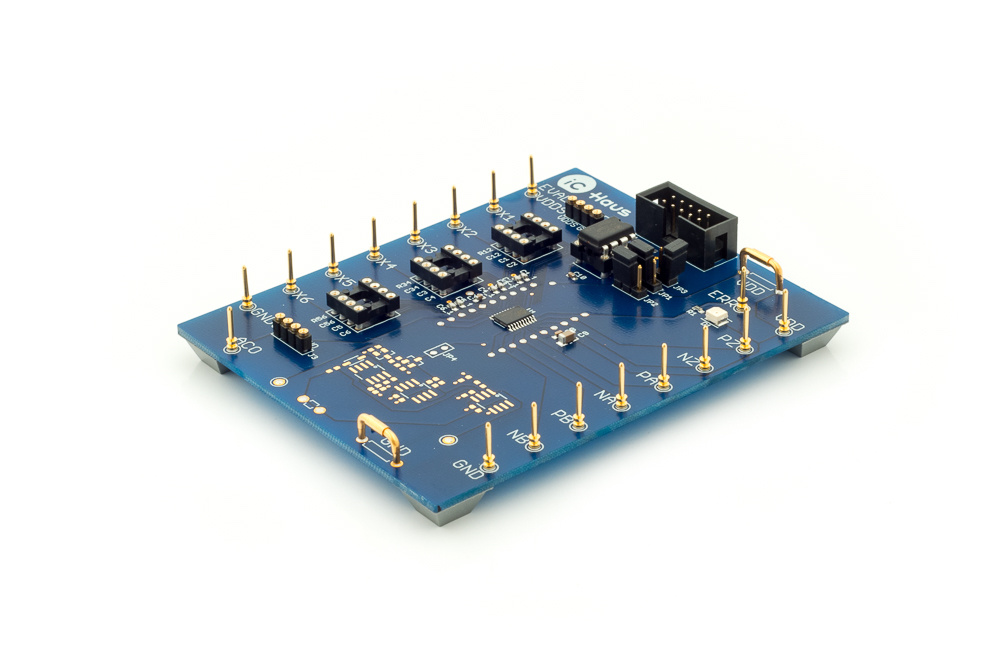

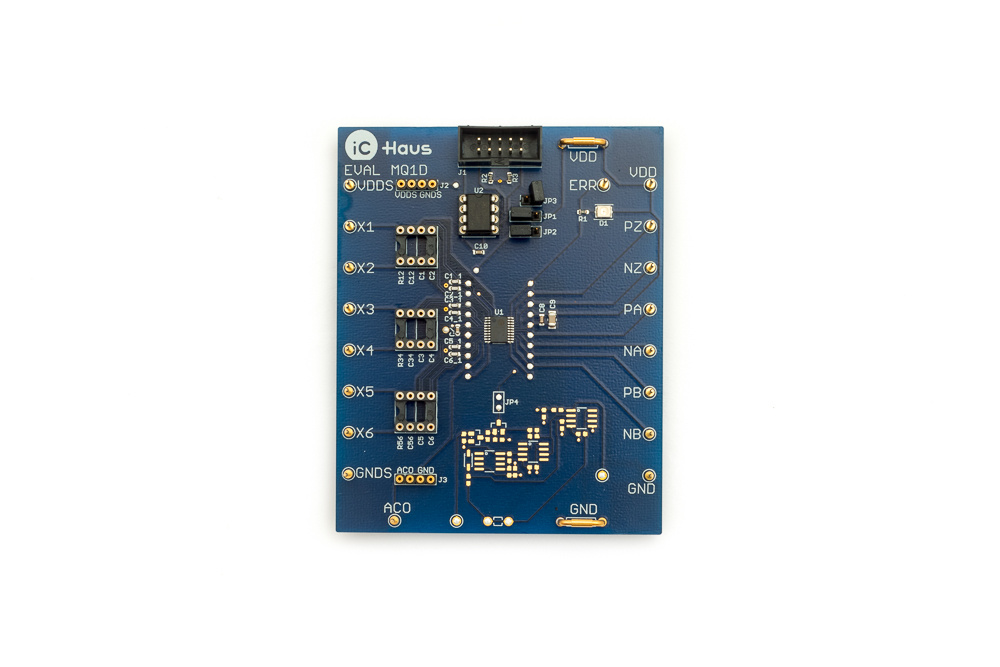

iC-PI EVAL MQ1D

Evaluation Board iC-PI

This is a B2B shop.
Orders will be fulfilled and shipped to business
clients with a valid address in Germany.

Please login or register.

Article description

iC-PI EVAL MQ1D is the evaluation board for evaluating, testing, and measuring of iC-PI.

Product description

iC-PI is a real-time vector-tracking sine/cosine-to-digital converter with an angle resolution of up to 4000 / 4096.

The angle is output via fail-safe RS422 drivers as an encoder quadrature signal with index, glitch-free at a guaranteed minimum edge distance.

The signal-conditioning analog front-end takes differential or single-ended signals (current-to-voltage conversion is optional) and allows the correction of common signal errors. All device functions are monitored, improper operation can be alarmed.

Features

  • Latency-free sine-to-digital conversion with up to 4000/4096 angle steps
  • Input frequency: 500 kHz (x10), 80 kHz (x100), 8 kHz (x1000)
  • Flexible pin assignment using signal path multiplexers
  • PGA inputs for differential and single-ended signals
  • Variable input resistance for current/voltage conversion
  • Signal conditioning for offset, amplitude, and phase
  • Controlled 50 mA current source for LED or MR sensor supply
  • Fault-tolerant RS422 output via adjustable drivers (up to 50 mA)
  • Glitch-free due to guaranteed minimum edge distance
  • Zero signal conditioning and electronic index pulse generation
  • Output of motor commutation signals: UVW with 1 to 8 cycles
  • Signal and operation monitoring with configurable alarm output, output shutdown and error storage
  • I2C multi-master interface for configuration from external EEPROM
  • I2C slave interface for in-circuit calibration and position data
  • Adjustable over-temperature alarm and shutdown
  • Supply from 4.3 to 5.5 V, operation from -40 to +100 °C
  • Reverse-polarity-proof, including the sub-system

Applications

  • Rotary and linear encoders
  • Magnetic or optical angle sensor modules
  • Brushless motor commutation
