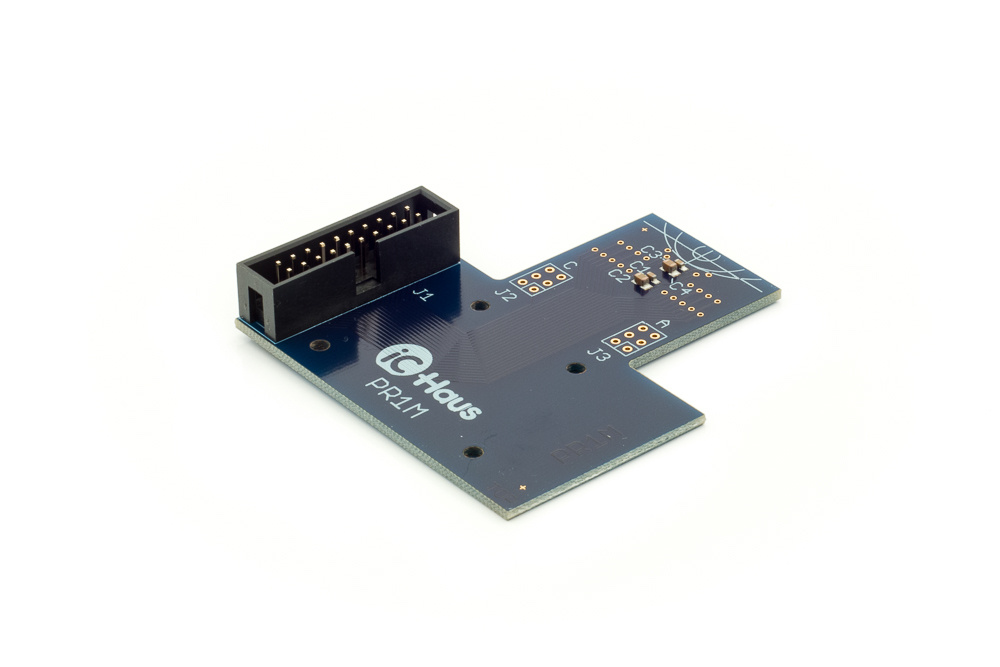

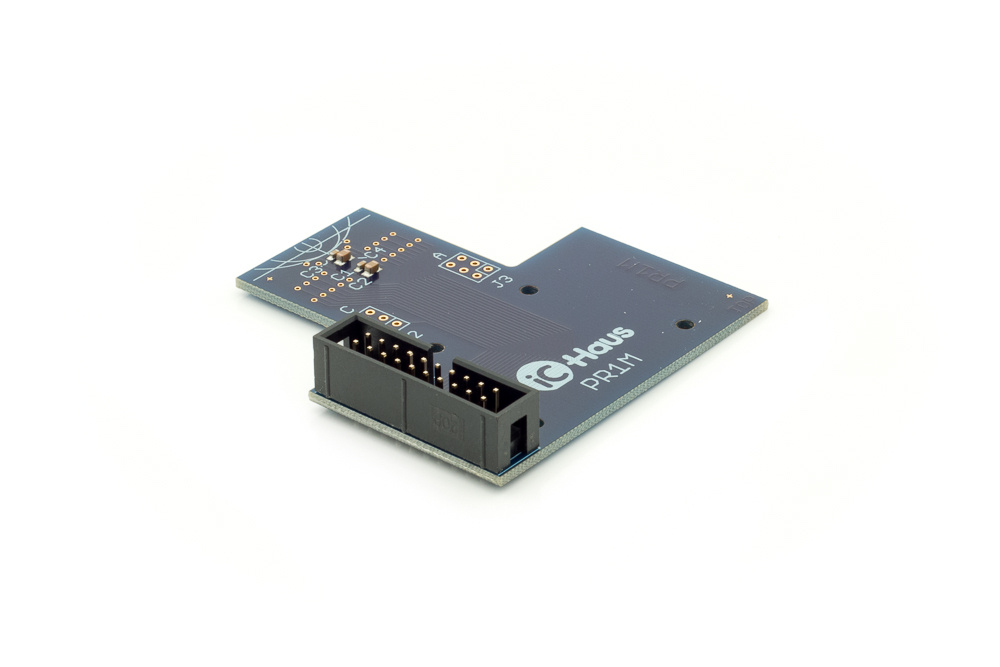

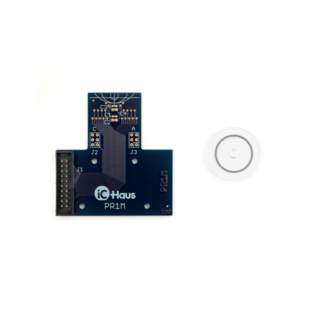

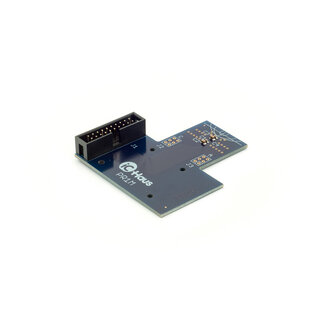

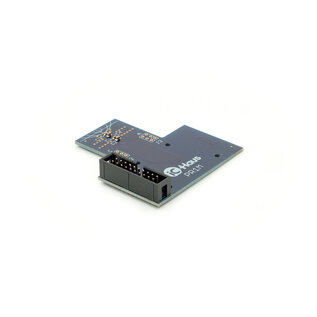

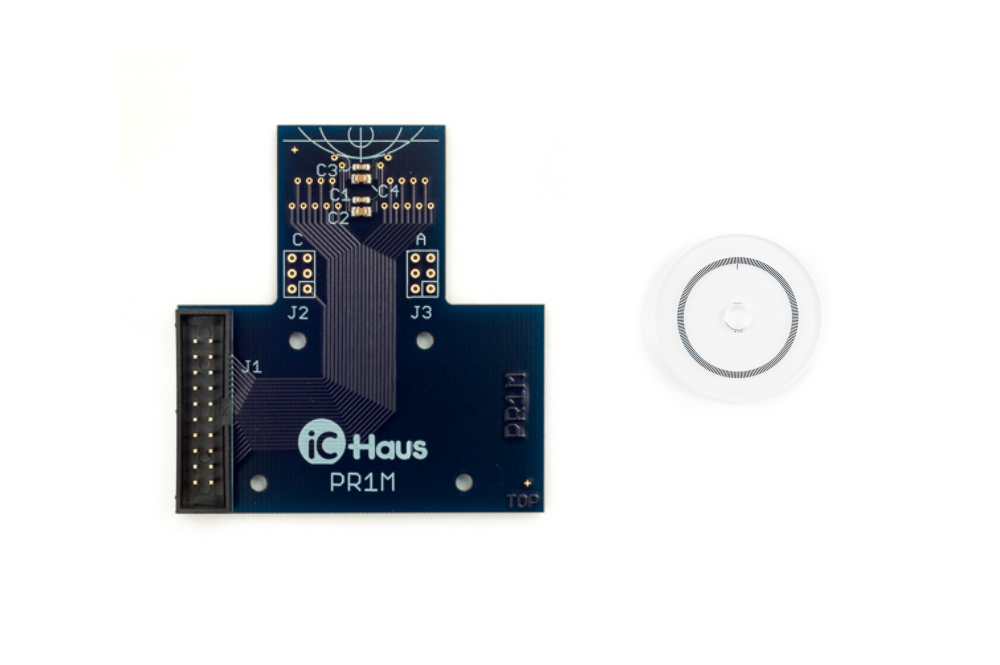

iC-PR1456 EVAL PR1M is the evaluation board for evaluating, testing, and measuring of iC-PR Series.
The iC-PR series are advanced optical, reflective, lensless encoder iCs featuring integrated HD Phased Array photosensors and a blue LED. They provide high signal quality with relaxed alignment tolerances.
Differential digital ABZ outputs with or without interpolation or analog SIN/COS outputs with index are available. Typical applications are incremental encoders for motor control.
