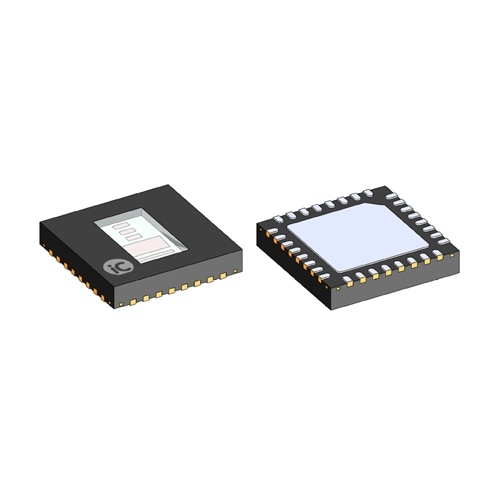

iC-PT3325H oQFN32-5x5

6-Ch. Phased Array Opto Encoder 33-2500, adj. Gating

This is a B2B shop.
Orders will be fulfilled and shipped to business
clients with a valid address in Germany.

Please login or register.

Product description

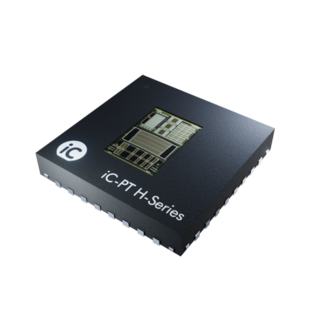

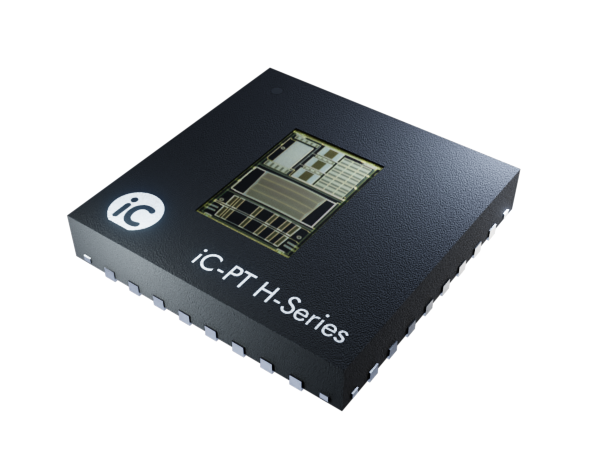

The iC-PT H-series ICs are advanced optical phased-array encoders with on-chip interpolation.

The devices feature differential A/B and index tracks, and 3 tracks to generate block commutation signals (UVW). All chip functions are pin-selectable. An averaging LED power controller outbalances LED aging and temperature.

The line count and the optical radius are defined by the chip; UVW can be adapted to the motor by the code disc.


  • Compact, high resolution incremental encoder ICs with up to 2048 CPR (native) and 8192 CPR (interpolated)
  • For code discs of 26 mm, 33 mm, 39 mm
  • Monolithic HD Phased Array with excellent signal matching
  • Moderate track pitch for relaxed assembly tolerances
  • Low-noise signal amplifiers with high EMI tolerance
  • Pin-selectable operating modes: analog, comparated (x1), interpolated (x2, x4)
  • Pin-selectable index gating: ungated (1 T), B-gated (0.5 T), AB-gated (0.25 T)
  • Complementary quadrature outputs: A, B, Z and NA, NB, NZ
  • Commutation signal outputs: U, V, W
  • Short-circuit-proof, current-limited, +/- 4 mA push-pull
  • Analog signal output for ease of alignment and resolution enhancement by external interpolation
  • LED power control with 40 mA high-side driver
  • Low power consumption from single 3.5 V to 5.5 V supply
  • Operating temperature range of -40 °C to +120 °C
  • Evaluation kits with LED and code disc available for sampling


  • Incremental encoder
  • Brushless DC motor commutation
  • Industrial drives
