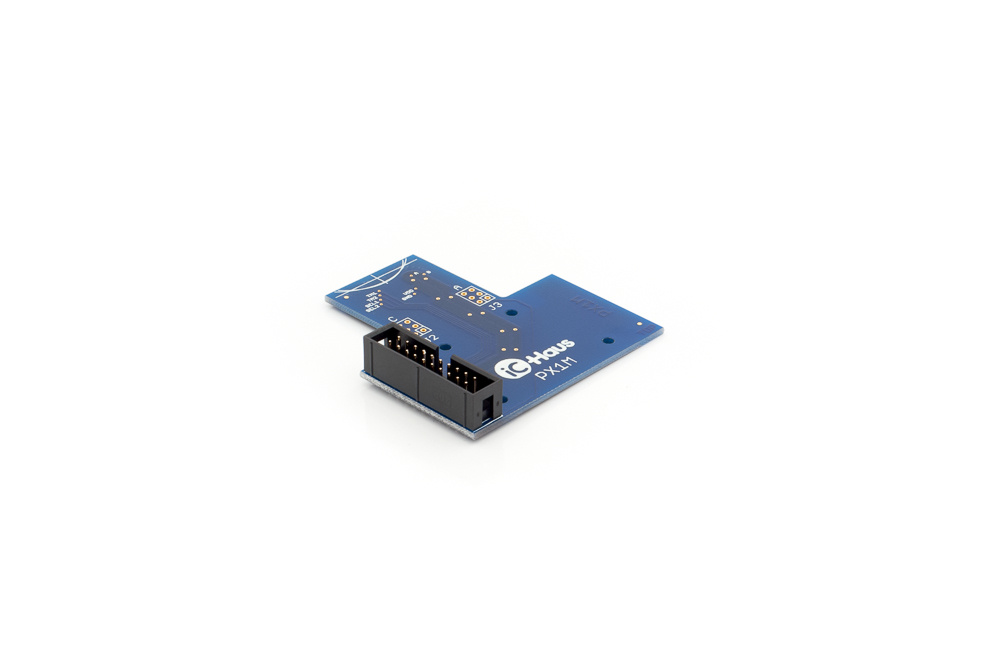

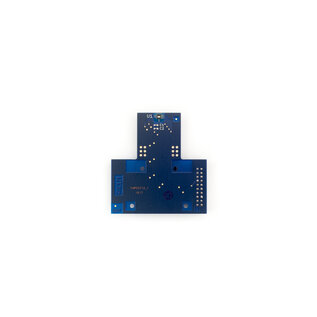

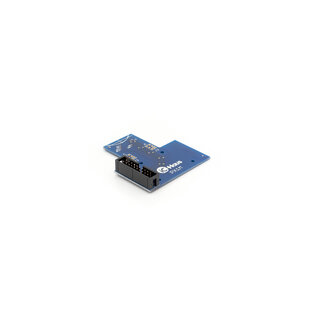

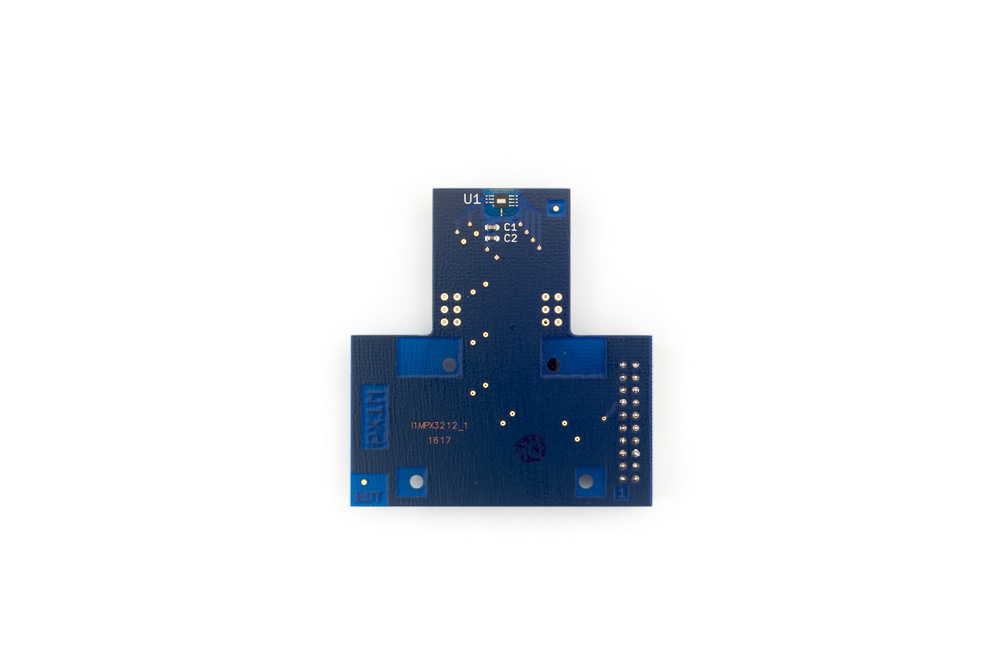

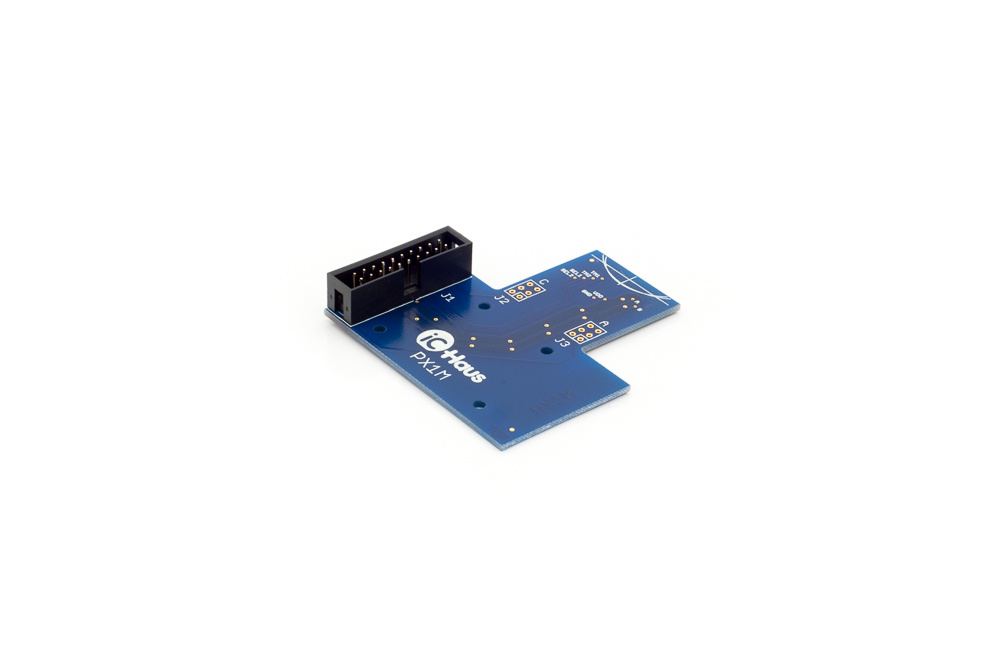

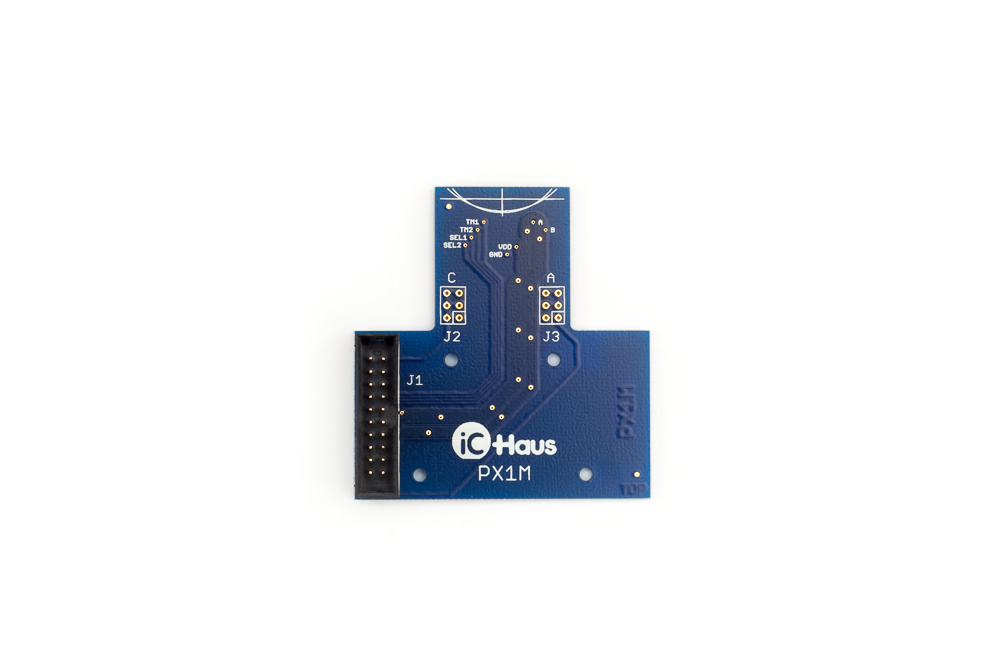

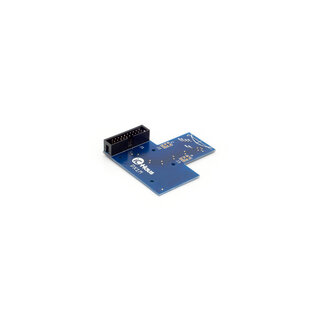

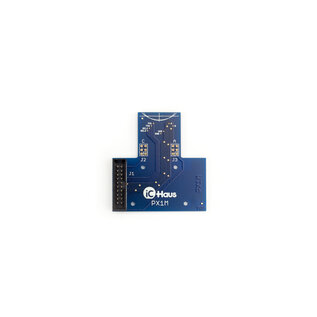

Eval-Kit with Scanner Module PX1M and Code Disc PX01FS 26-360

yiC-PX2604 EVAL PX1M yiC-PX2604 EVAL PX1M yiC-PX2604 EVAL PX1M yiC-PX2604 EVAL PX1M

This is a B2B shop.
Orders will be fulfilled and shipped to business
clients with a valid address in Germany.

Please login or register.

iC-PX2604 EVAL PX1M
iC-PX2604 EVAL PX1M
iC-PX2604 EVAL PX1M
iC-PX2604 EVAL PX1M

Product description

iC-PX series devices are advanced optical, reflective, lensless encoder iCs featuring integrated HD Phased Array photosensors and a blue LED chip. They provide high signal quality with relaxed alignment tolerances. Digital A/B outputs with or without interpolation are available. Typical applications are incremental encoders for motor control.

Features

  • Lensless, reflective opto-encoder iCs, compact, high-resolution, incremental
  • Suitable reflective code discs of Ø 26, Ø 30, Ø 32, Ø 36, and Ø 43 mm
  • Monolithic HD Phased Array with excellent signal matching
  • Integrated blue LED, EncoderBlue®
  • LED power control with 20 mA driver
  • Low-noise signal amplifiers with high EMI tolerance
  • Pin-selectable modes of operation: Digital A/B (x1, x2, x4, x8, x16 interpolated)
  • Short-circuit-proof, current-limited, +/- 4 mA push-pull outputs
  • Operating temperature range of -40 °C to +105 °C
  • Low power consumption from single 4.5 V to 5.5 V supply
  • Compact and lensless optoDFN mold package

Applications

  • Incremental encoders
  • Miniature motors and actuators
  • X-Y and linear stages
  • Factory automation robots
  • Consumer robots
