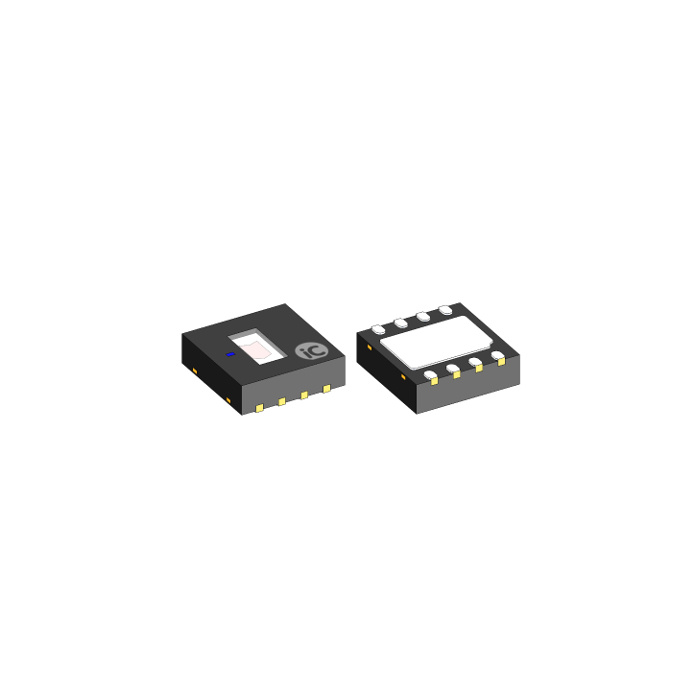

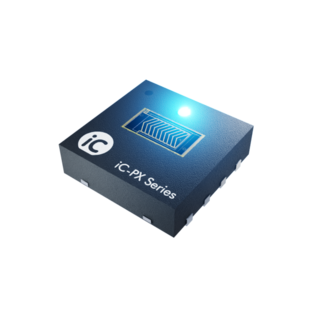

iC-PX3212 oDFN8-3x3

2-Ch. Reflective Encoder (32-512)

This is a B2B shop.
Orders will be fulfilled and shipped to business
clients with a valid address in Germany.

Please login or register.

Article description

30 mm disc with 500 CPR,
32 mm disc with 512 CPR,
36 mm disc with 625 CPR,
43 mm disc with 720 CPR

Product description

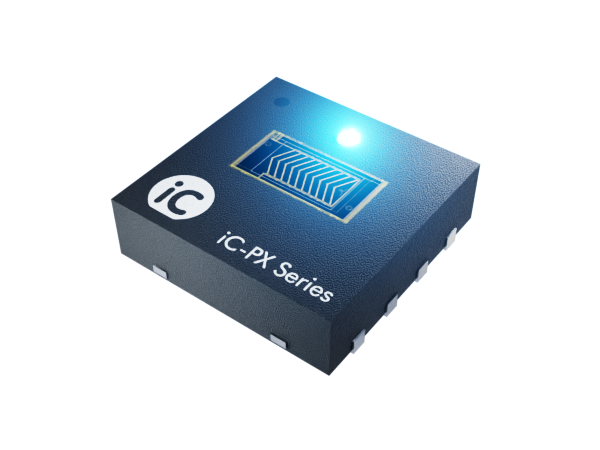

iC-PX series devices are advanced optical, reflective, lensless encoder iCs featuring integrated HD Phased Array photosensors and a blue LED chip. They provide high signal quality with relaxed alignment tolerances. Digital A/B outputs with or without interpolation are available. Typical applications are incremental encoders for motor control.


  • Lensless, reflective opto-encoder iCs, compact, high-resolution, incremental
  • Suitable reflective code discs of Ø 26, Ø 30, Ø 32, Ø 36, and Ø 43 mm
  • Monolithic HD Phased Array with excellent signal matching
  • Integrated blue LED, EncoderBlue®
  • LED power control with 20 mA driver
  • Low-noise signal amplifiers with high EMI tolerance
  • Pin-selectable modes of operation: Digital A/B (x1, x2, x4, x8, x16 interpolated)
  • Short-circuit-proof, current-limited, +/- 4 mA push-pull outputs
  • Operating temperature range of -40 °C to +105 °C
  • Low power consumption from single 4.5 V to 5.5 V supply
  • Compact and lensless optoDFN mold package


  • Incremental encoders
  • Miniature motors and actuators
  • X-Y and linear stages
  • Factory automation robots
  • Consumer robots
