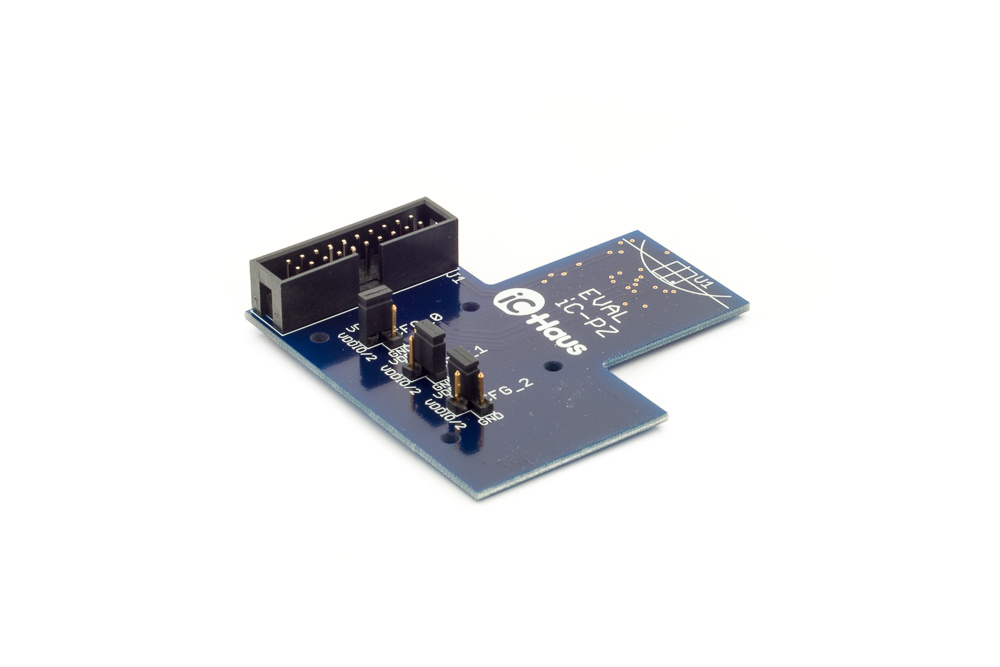

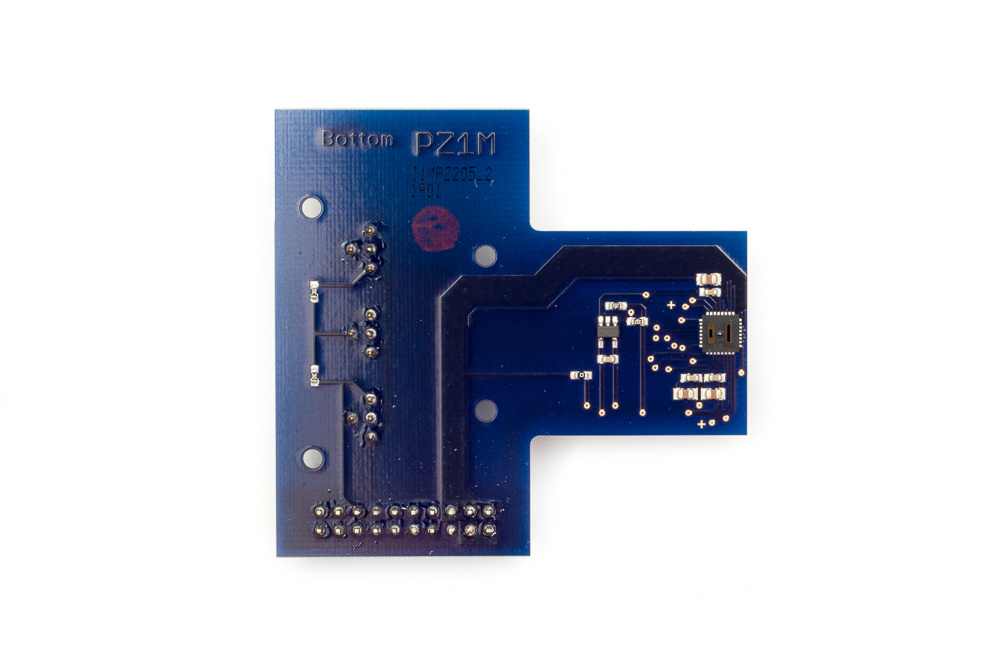

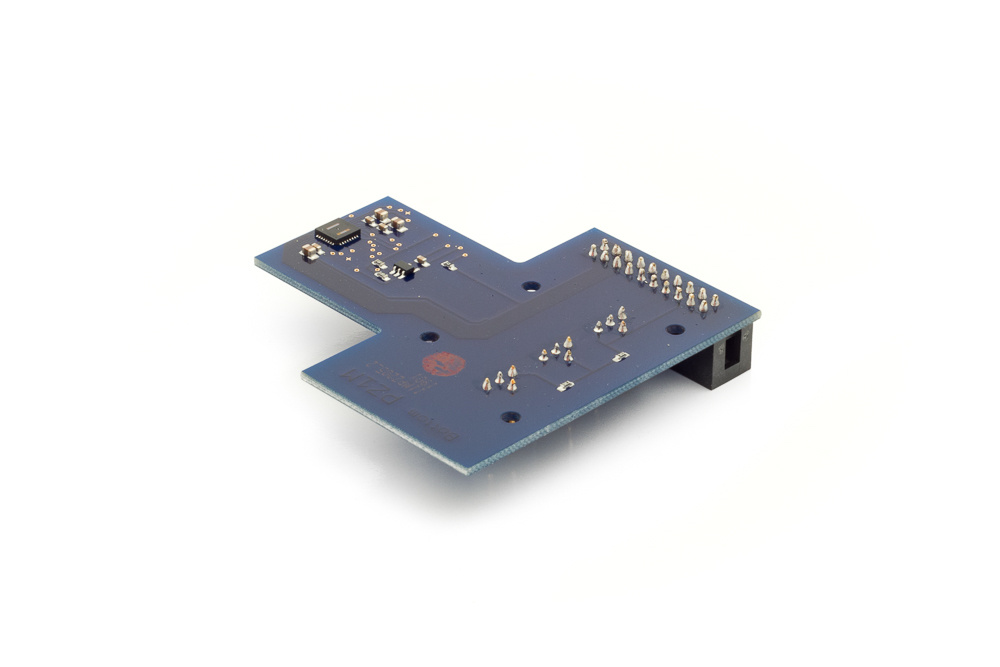

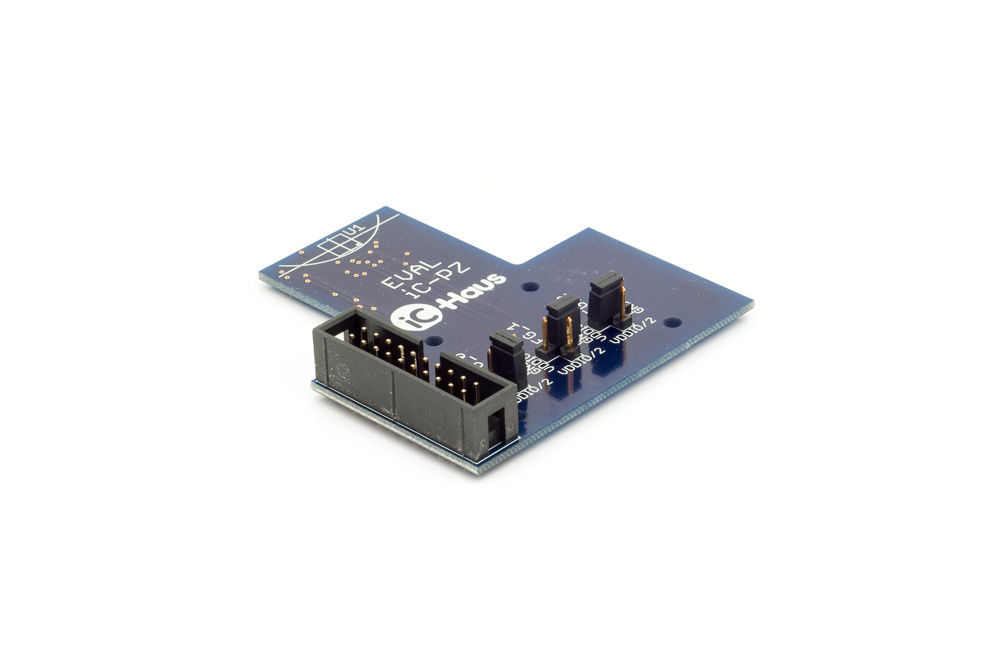

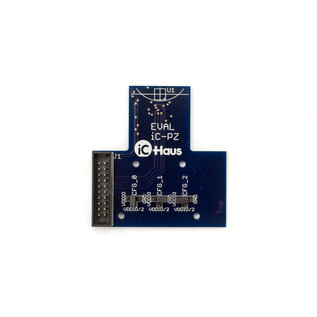

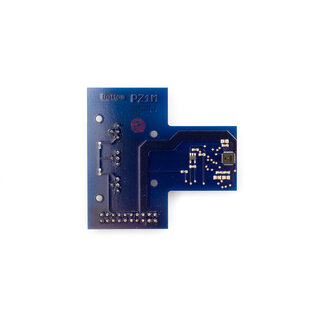

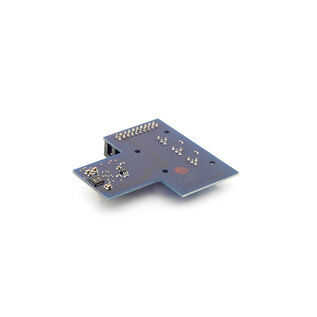

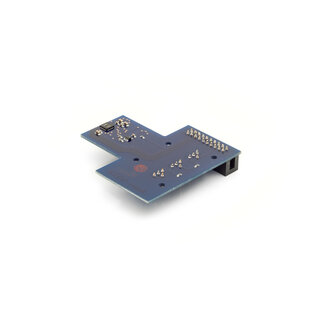

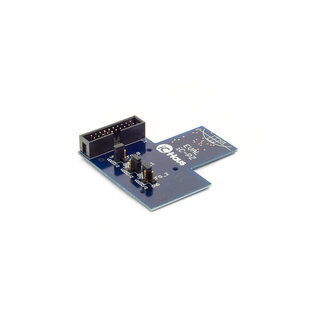

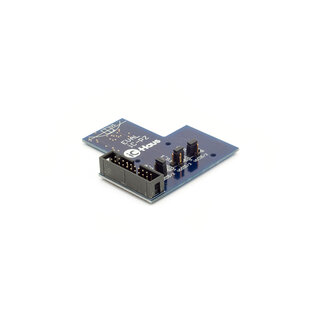

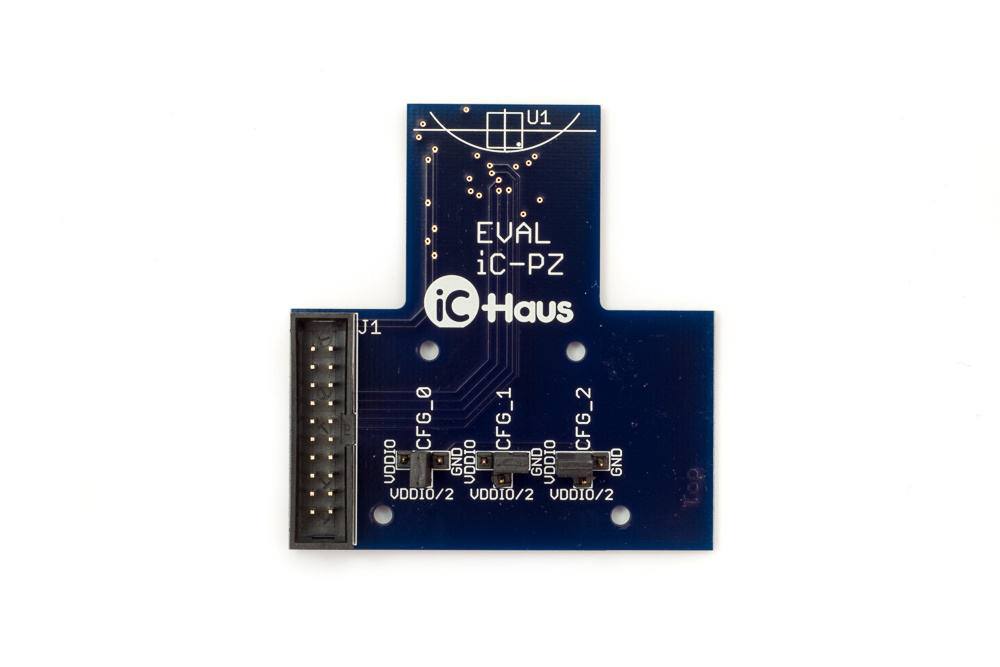

Eval. Kit with Scanner Module PZ1M and Code Disc PZ03PS

This is a B2B shop.
Orders will be fulfilled and shipped to business
clients with a valid address in Germany.

Please login or register.

Article description

Product description

The iC-PZ is a complete lensless optical reflective absolute encoder IC. With its integrated blue LED and interpolator, the iC-PZ provides a high-resolution single-chip absolute linear or rotary encoder solution. Independently configurable BiSS/SSI, ABZ, UVW, SPI, and analog Sin/Cos outputs may be used singly or in combination to provide a highly flexible system. FlexCount® and FlexCode® allow arbitrary ABZ resolution and arbitrary code disc diameter.


  • • Reflective, compact, high-resolution, absolute encoder iC
  • • iC-PZ0974 and iC-PZ2656 for reflective code discs up to ø45 mm
  • • iC-PZ205 for reflective code discs > ø45 mm and linear scales (max. 6.71m)
  • • Miniature oQFN32 5×5 package
  • • Monolithic HD Phased Array with excellent signal matching
  • • System-on-chip design with embedded blue LED for excellent reliability, EncoderBlue®
  • • FlexCount® interpolation for arbitrary ABZ resolutions
  • • FlexCode® circuitry for arbitrary code disc diameters
  • • UVW commutation signals with 1 to 32 CPR, for motors of up to 32 pole pairs
  • • LED power control for constant illumination (sine square or sum control)
  • • Absolute singleturn resolution of 22 bits (ø26 mm) via built-in interpolation
  • • On-chip automatic signal adjustment
  • • Calibration and configuration storage via external I²C EEPROM
  • • Digital BiSS, SSI, and SPI interfaces with CMOS I/O
  • • Temperature detection and monitoring
  • • 2.5, 3.3, and 5.0 V compatible I/O ports
  • • Configurable analog outputs
  • • Absolute data interface for connection of external multiturn sensors


  • Linear scales and rotary encoders
  • High accuracy absolute encoders
  • Motion control
