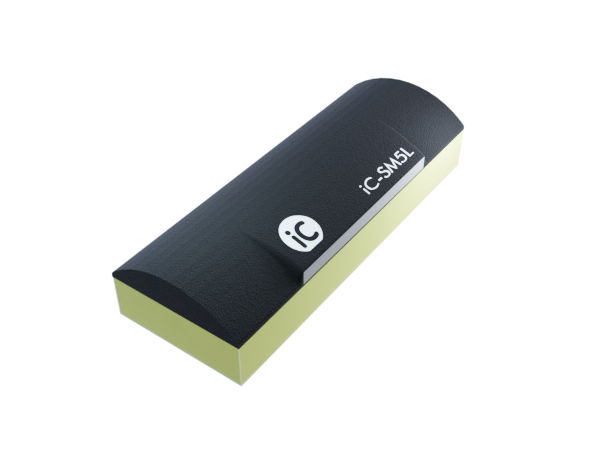

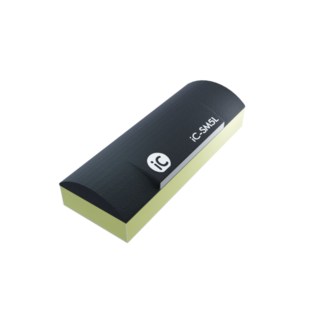

iC-SM5L LGA SM2C

Linear AMR Sensor (5 mm)

This is a B2B shop.
Orders will be fulfilled and shipped to business
clients with a valid address in Germany.

Please login or register.

Article description

Product description

iC-SM5L is a linear position sensor which operates on the AMR effect (anisotropic magneto resistance) and has been designed to work with magnetic scales which have a N/S pole pitch of 5 mm.
The amplitudes of the differential output voltages are largely independent of the magnetic field strength and thus not sensitive to changes in distance.
iC-SM5L is resistant to strong magnetic fields and not sensitive to external homogenous magnetic fields.

Features

  • Magneto resistive position sensor based on the AMR effect
  • Strong field sensor for 5 mm N/S pole pitch
  • High interpolation due to a sine signal with few harmonics
  • Low saturation field strength
  • High amplitude consistency with changes in distance
  • Resistant to strong magnetic fields
  • Not sensitive to external homogenous magnetic fields
  • Small SMT capable package

Applications

  • Linear position sensing
  • Length measuring systems
  • Off-axis hollow shaft rotary encoders
