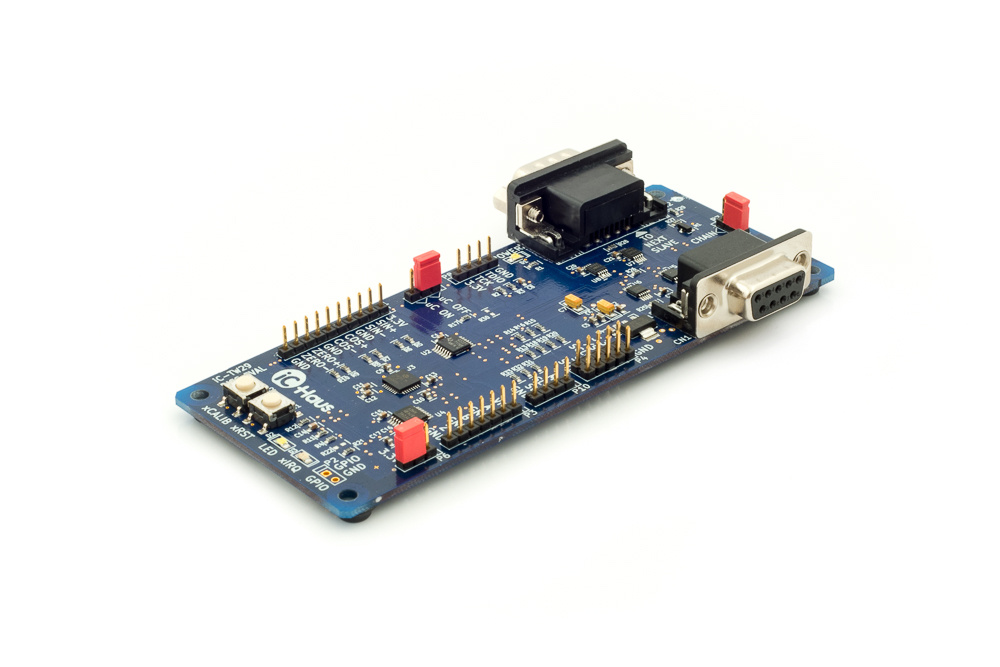

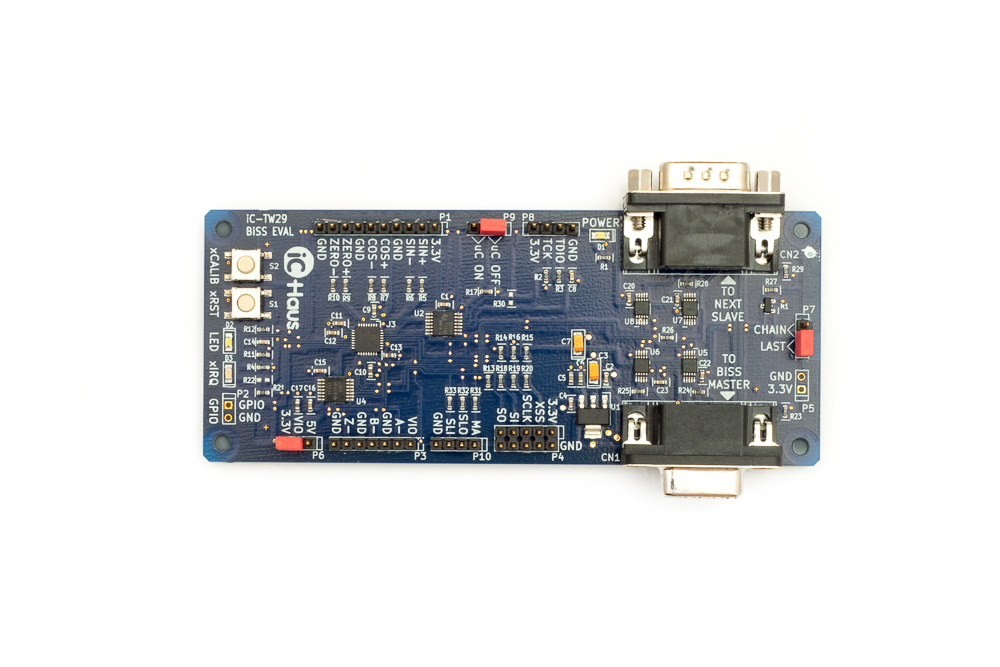

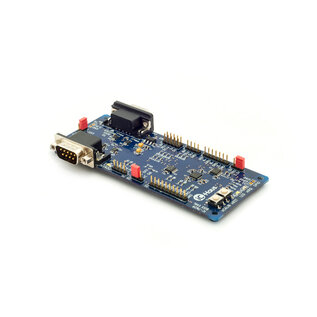

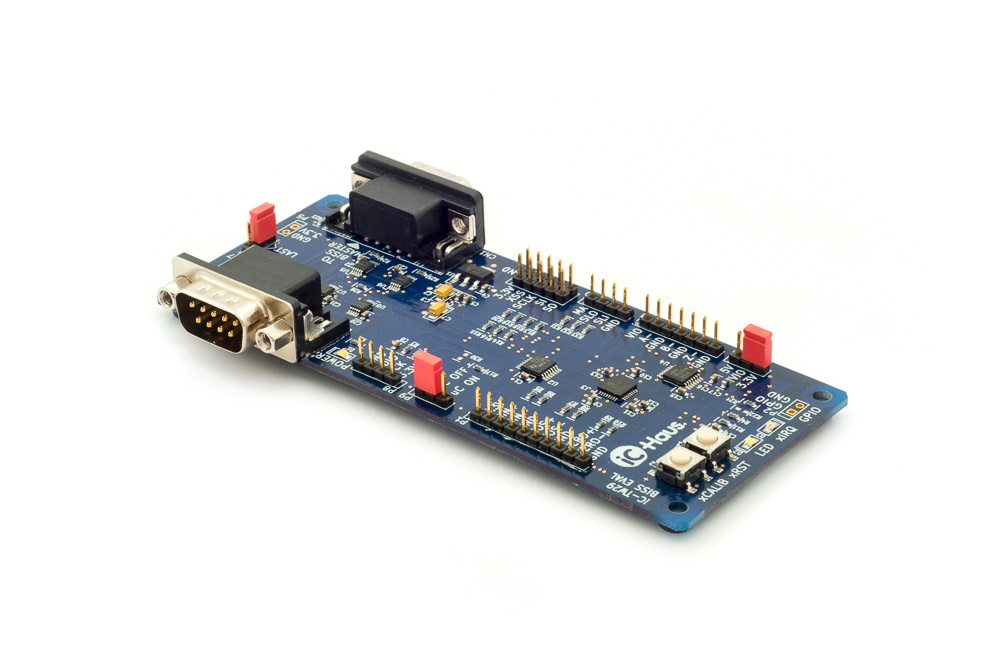

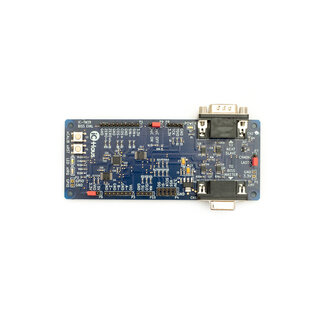

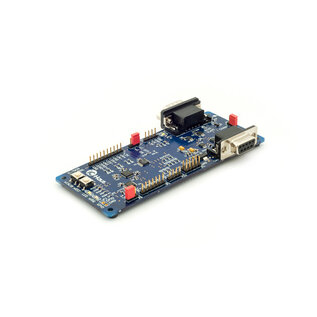

iC-TW29 EVAL TW29_3D eases the evaluation of iC-TW29 for absolute and incremental encoder applications using the BiSS interface. Board operation requires a BiSS adapter (MB4U or MB5U) and/or the SPI programmer.
iC-TW29 is a complete solution for arbitrary resolution ST and MT encoders.
Independent I/O modules provide BiSS C, ABZ, or UVW outputs separately or in combination.
1 to 4,096 input cycles/rev are converted into a freely scalable output angle of up to 26 bit.
Automatic signal error correction ensures a minimum angular error and jitter.
Off-center optical discs or magnetic polewheels can be compensated for eccentricity.
Connecting a revolution counter is possible, to output multiturn absolute data on BiSS.
