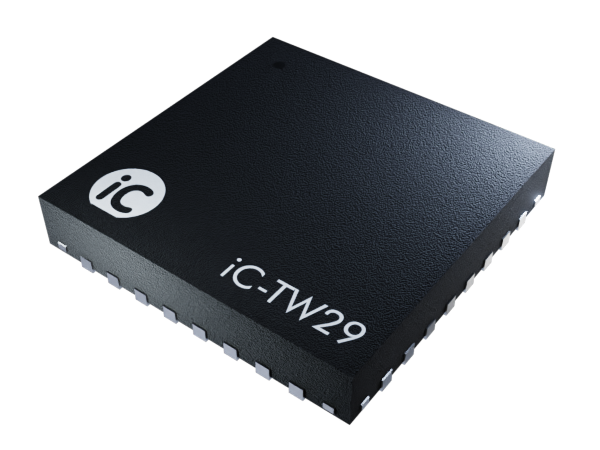

iC-TW29 QFN32-5x5

26-Bit Encoder Processor with Interpolation and BiSS Interface

This is a B2B shop.
Orders will be fulfilled and shipped to business
clients with a valid address in Germany.

Please login or register.

Product description

iC-TW29 is a complete solution for arbitrary resolution ST and MT encoders.
Independent I/O modules provide BiSS C, ABZ, or UVW outputs separately or in combination.
1 to 4,096 input cycles/rev are converted into a freely scalable output angle of up to 26 bit.
Automatic signal error correction ensures a minimum angular error and jitter.
Off-center optical discs or magnetic polewheels can be compensated for eccentricity.
Connecting a revolution counter is possible, to output multiturn absolute data on BiSS.

Features

  • Any output resolution with any input resolution
  • Independently-programmed ABZ, UVW, and BiSS resolutions
  • Absolute data interface for external revolution counters
  • BiSS C-Mode interface (Encoder Profiles 3, 3S, and 4)
  • 26-bit single-turn position and 32-bit revolution count via SPI
  • Four capture registers for coded reference marks and touch-probe applications
  • Eccentricity compensation
  • Input frequency up to 700 kHz
  • AB output frequency of up to 12.5 MHz
  • Differential RS422 line driver outputs for ABZ or UVW
  • Simultaneous single-ended outputs for ABZ, UVW, BiSS
  • Automatic compensation of amplitude, offset, and phase errors
  • Digital filtering for ultra-low output jitter
  • Encoder Link interface for in-field re-configuration
  • Internal EEPROM and oscillator
  • LED intensity control by PWM output
  • Low latency (2.4 µs or 5.0 μs)
  • Pin-compatible with iC-TW28

Applications

  • Rotary and linear incremental or absolute encoders
  • Magnetic or optical sin/cos sensor interface
  • Brushless motor commutation (2...64 poles)
  • Imbedded motion control
