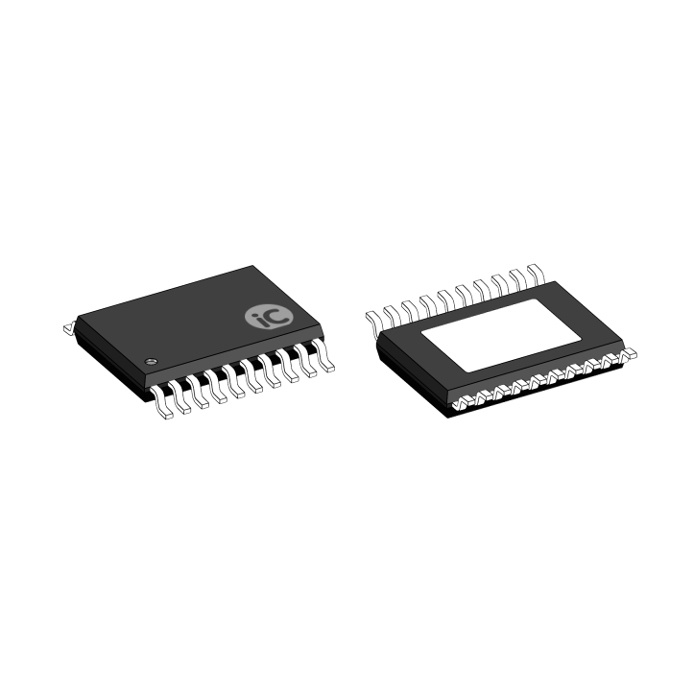

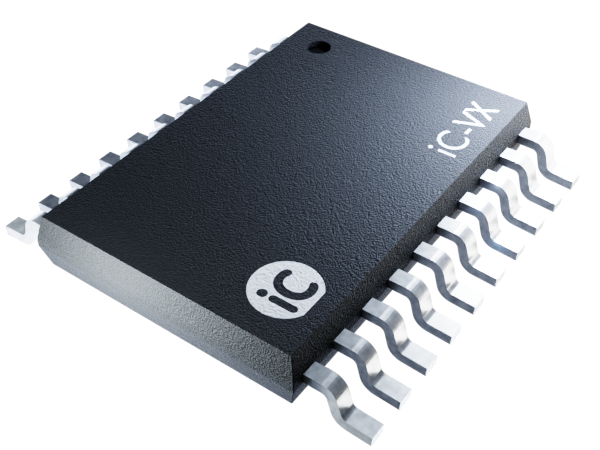

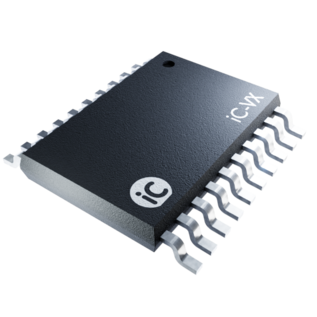

iC-VX TSSOP20

Product description

The device iC-VX is a 3-channel line driver with complementary outputs for 24 V applications.
The Schmitt trigger inputs contain pull-up current sources and run on separate operating voltages. Their
reference potential can be adjusted in the range of the output stage supply voltage to adapt the input threshold voltage for various applications.
The guaranteed driver current can be set to 30 mA (PROG pin open) or 100 mA (PROG pin at VSUB). The output stages are current-limited protected by thermal shutdown.

Features

  • 6 current-limited and short-circuit-proof push-pull driver stages in complementary configuration
  • Guaranteed driver current can be set to 30 mA or 100 mA
  • Outputs compatible to TTL at low load current
  • Integrated free-wheeling diodes
  • Short switching times and high slew rate
  • Schmitt trigger inputs with integrated pull-up current sources and clamping diodes
  • Inputs compatible to TTL and CMOS levels
  • Operating points can be shifted by separate feed of inputs
  • On-chip thermal shutdown with hysteresis
  • Extended temperature range of -25..85°C

Applications

  • Line driver for 24 V control engineering
