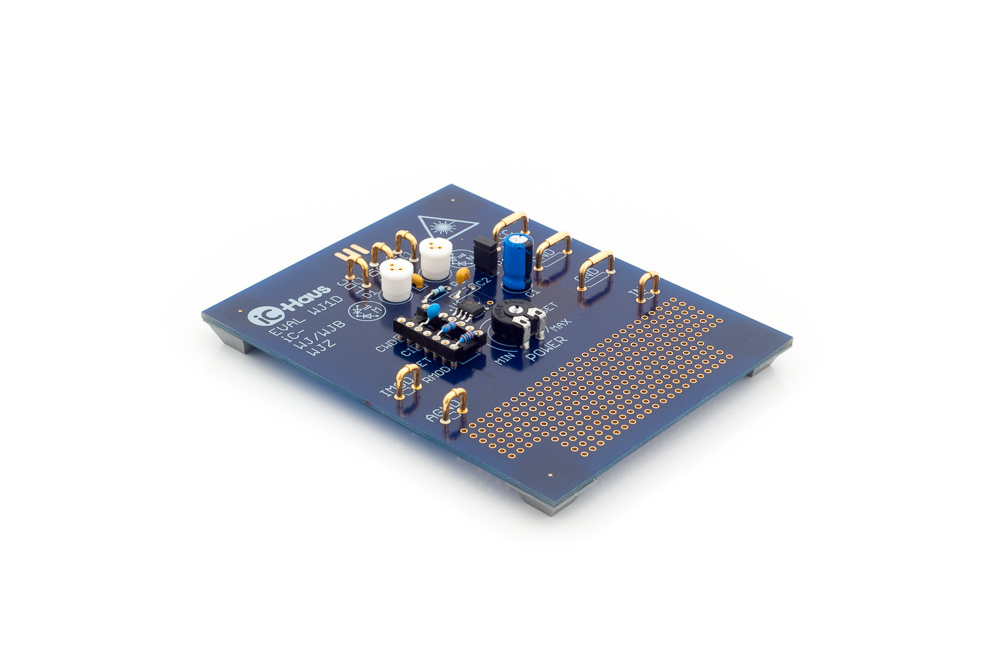

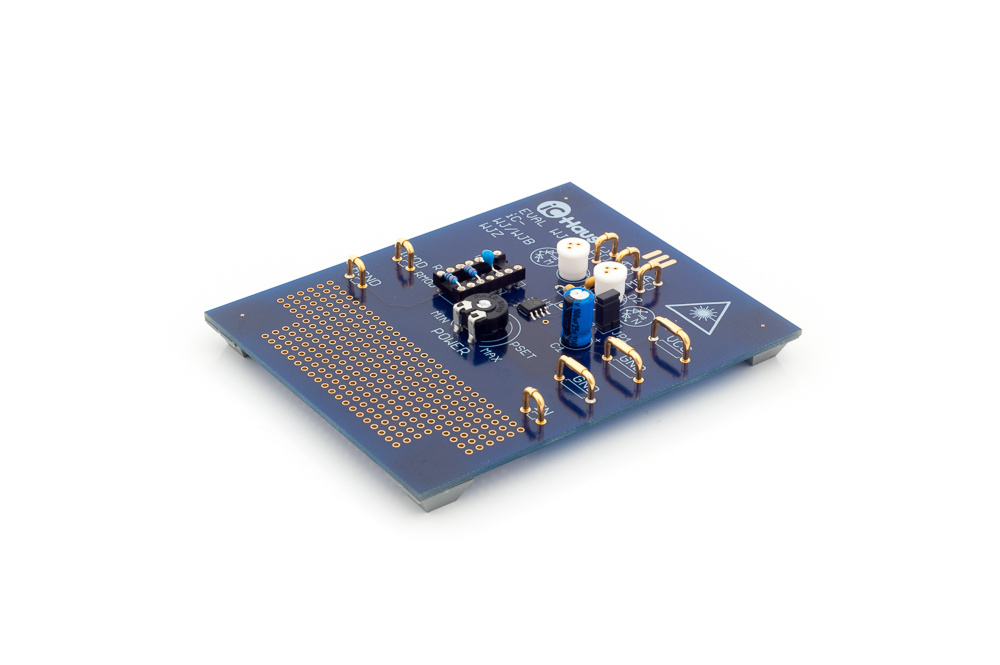

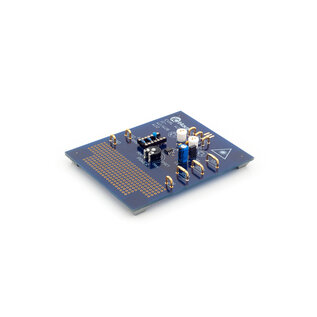

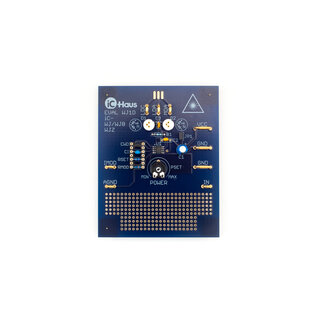

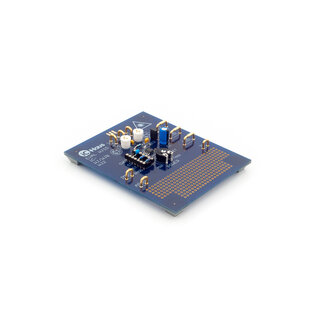

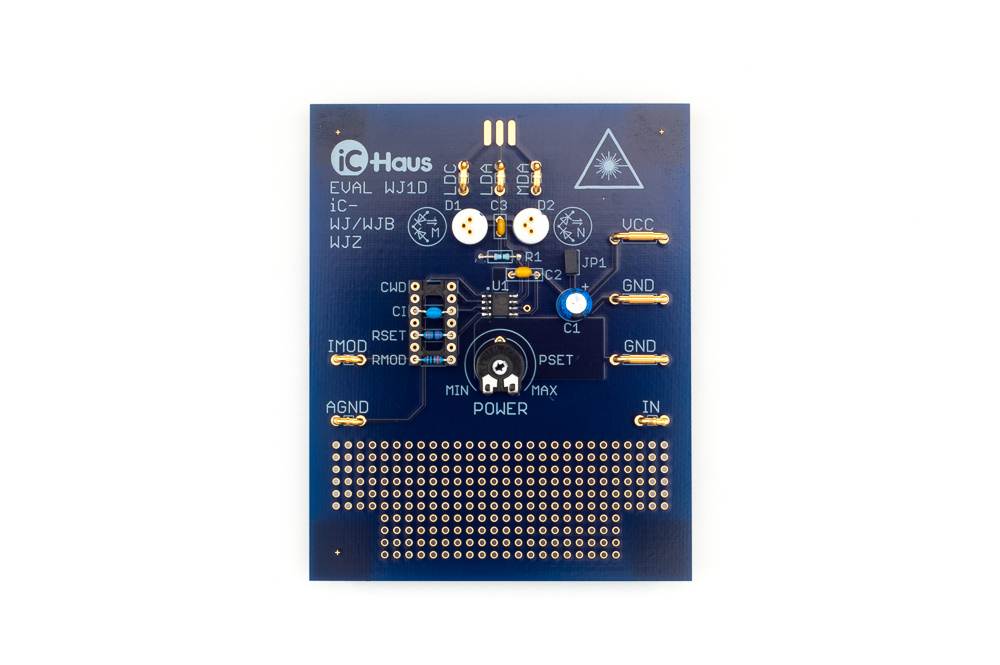

iC-WJ EVAL WJ1D is the evaluation board for evaluating, testing, and measuring of iC-WJ.
The iC-WJ is a driver ICs for laser diodes in continuous and pulsed operation up to 300 kHz.
An external resistor at ISET is utilised to adapt the power control to the laser diode being used. The capacitor at CI determines the recovery time constants and the start-up time.
A watchdog circuit monitors the switching input IN. If IN remains low longer than preset by the capacitor at CWD, the capacitor of the power control is discharged at pin CI.
