iC212

High-Speed Photoreceiver with Si-PIN Photodiode

This is a B2B shop.
Orders will be fulfilled and shipped to business
clients with a valid address in Germany.

Please login or register.

Article description

Product description

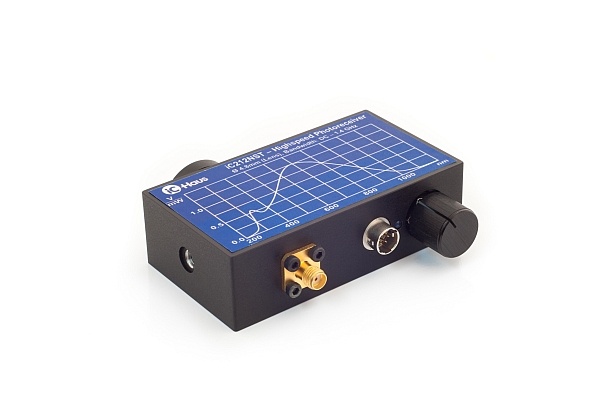

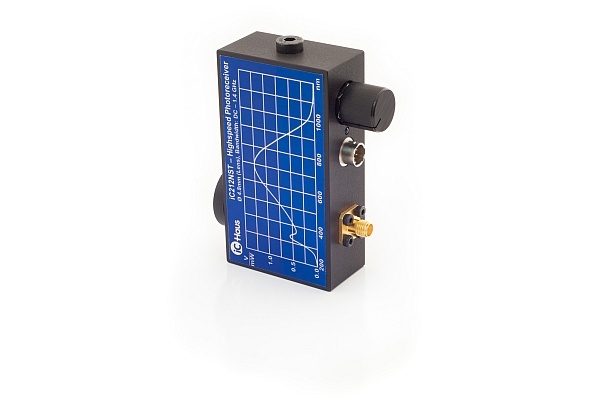

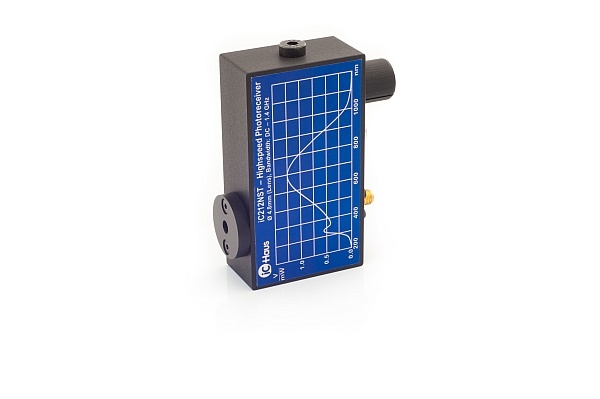

The iC-Haus Highspeed Photoreceiver iC212 has been developed for optical high speed measurement. With its bandwidth ranging from DC up to 1.4 GHz it detects photo signals from constant light to high speed with rise times down to 200 ps.

The photodiode covers a spectral range from 320 to 1000 nm.

The iC212 Highspeed Photoreceiver comes with M6 mounting holes for integration in optical bench systems and an optional
fiber-optic input adapter.

Features

  • Bandwidth DC to 1.4 GHz
  • Si PIN photodiode, Ø 0.2 mm
  • Spectral response range λ = 320 to 1000 nm
  • Amplifier transimpedance (gain) 3.125 V/mA
  • Max. conversion gain 1.25 V/mW @ 700 nm

Applications

  • Fast pulse and transient measurement
  • Optical front-end for oscilloscopes
