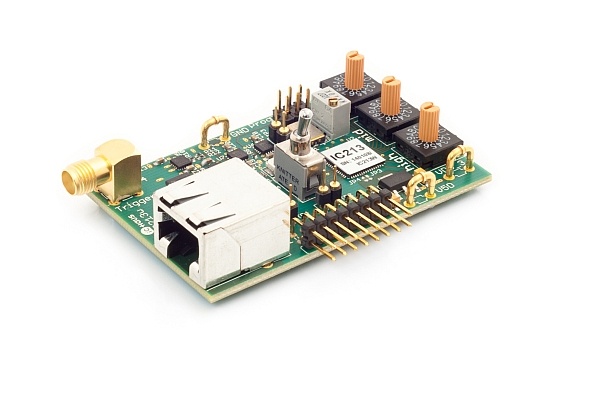

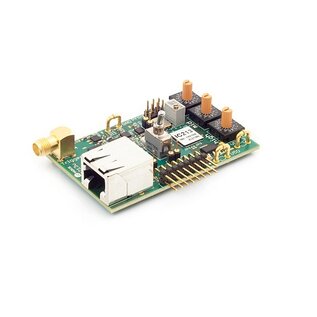

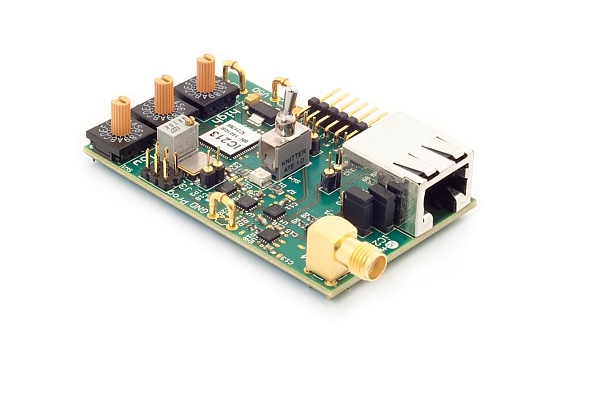

iC213

Programmable Oscillator Module

This is a B2B shop.
Orders will be fulfilled and shipped to business
clients with a valid address in Germany.

Please login or register.

Product description

A selection of 4096 preset frequencies between 39.3 kHz and 1 GHz can be set by means of three HEX switches.

Using the I^2C interface to select a frequency either one of the 4096 preset frequencies or an arbitrary frequency from 39.0625 kHz to 945 MHz, 970 to 1134 MHz and 1213 to 1417.5 MHz can be programmed.

This module is pin compatible to the pulse module iC149.

Features

  • 40 kHz to 1.4 GHz
  • LVDS und TTL outputs
  • Compatible with HG1D, HG2D, NZN1D, NZP1D

Applications

  • Pulse generator for laser diode drivers
