MU4L 655-256N

Magnetic Tape (3-Track Nonius Code)

This is a B2B shop.
Orders will be fulfilled and shipped to business
clients with a valid address in Germany.

Please login or register.

Article description

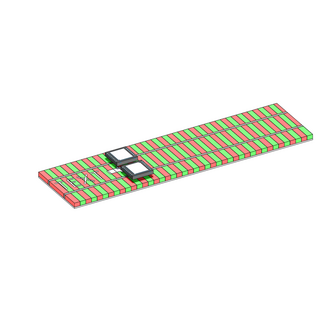

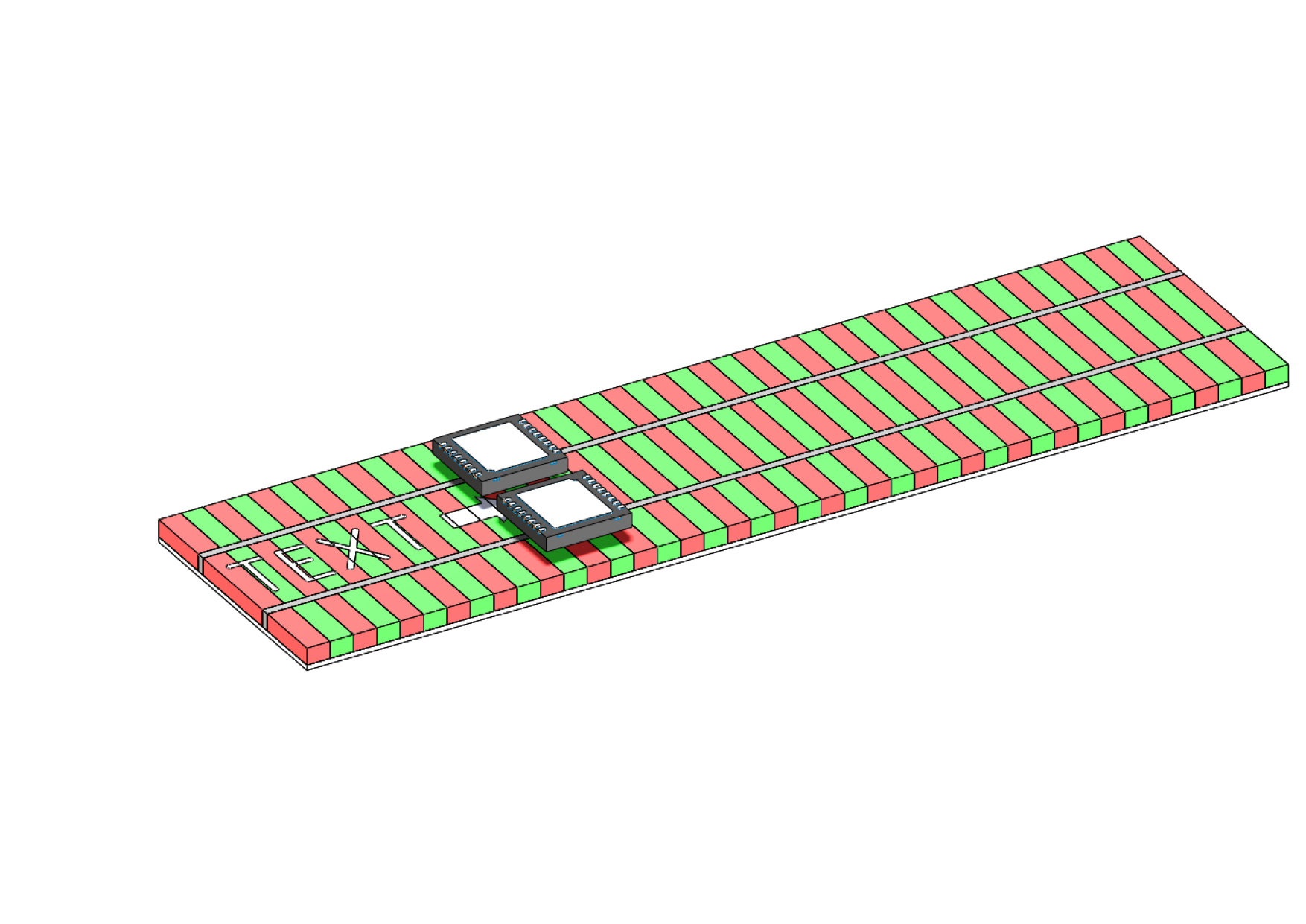

MU4L 655-256N is a magnetic tape with a three track nonius coding suitable for the iC-MU. The code comprises of 256 (master), 255 (nonius) and 240 (segment) pole pairs on a length of 655.36 mm.

MU4L 655-256N is suitable for an application with two iC-MU connected for three track mode. The applicable demo kit is the iC-MU EVAL MU2M.

The total length of the tape is 700 mm.

Product description

iC-MU is used for magnetic off-axis position detection with integrated Hall sensors. By scanning two separate channels i.e. the master and nonius track, the device can provide an absolute position within one mechanical revolution.

Position data can be transmitted serially (SSI, BiSS, SPI), incrementally, or analog through two ports in various modes of operation. Commutation signals (U/V/W) for brushless DC (BLDC) motors with up to 16 pole pairs are derived from the absolute position.
