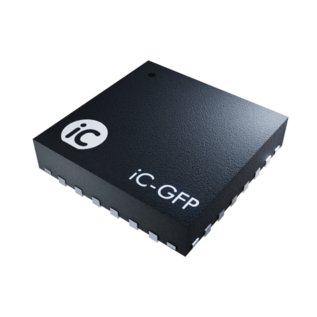

iC-GFP QFN24-4x4

Dual Channel IO-Link Slave Transceiver

This is a B2B shop.
Orders will be fulfilled and shipped to business
clients with a valid address in Germany.

Please login or register.

Article description

Product description

iC-GFP is a fully COM3 compliant IO-Link slave transceiver iC with two independent switching channels which enables digital sensors to drive peripheral elements, such as programmable logic controllers (PLC) and relays, for example.
The output switches can be configured for push-pull, high-side or low-side operation. The switches are designed for high drive currents of up to 200 mA, are current limited, and also short-circuit-proof in that they shut down with excessive temperature or overload.

Features

  • COM3 compliant IO-Link slave transceiver
  • Two bidirectional channels, configurable for high-side, low-side and push-pull operation
  • Output current of up to 200 mA per channel
  • Parallel connection of both channels possible
  • Channels can be inverted for antivalent output
  • Programmable current limit
  • Line side protected against reverse polarity
  • Configuration via SPI interface with secured data transmission
  • Wide supply voltage range of 4.5 to 36 V
  • Two feedback channels supporting IO-Link wake-up
  • Switching converter and linear regulators with 5/3.3/2.5/1.8 V
  • On-chip digital temperature sensor
  • Status alert output with excess temperature, overload and undervoltage
  • Driver shutdown on errors

Applications

  • IO-Link slaves
  • Proximity switches
  • Light barriers
