iC-HG EVAL HG2D HSK

Host Adapter for High-Speed Laser Modules with Heat-Sink Assembly Kit

This is a B2B shop.
Orders will be fulfilled and shipped to business
clients with a valid address in Germany.

Please login or register.

Article description

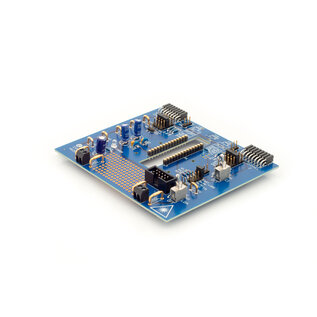

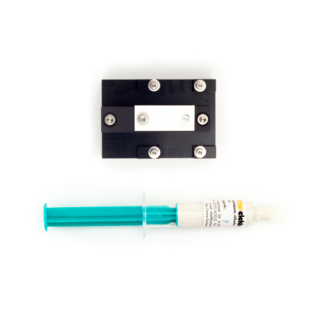

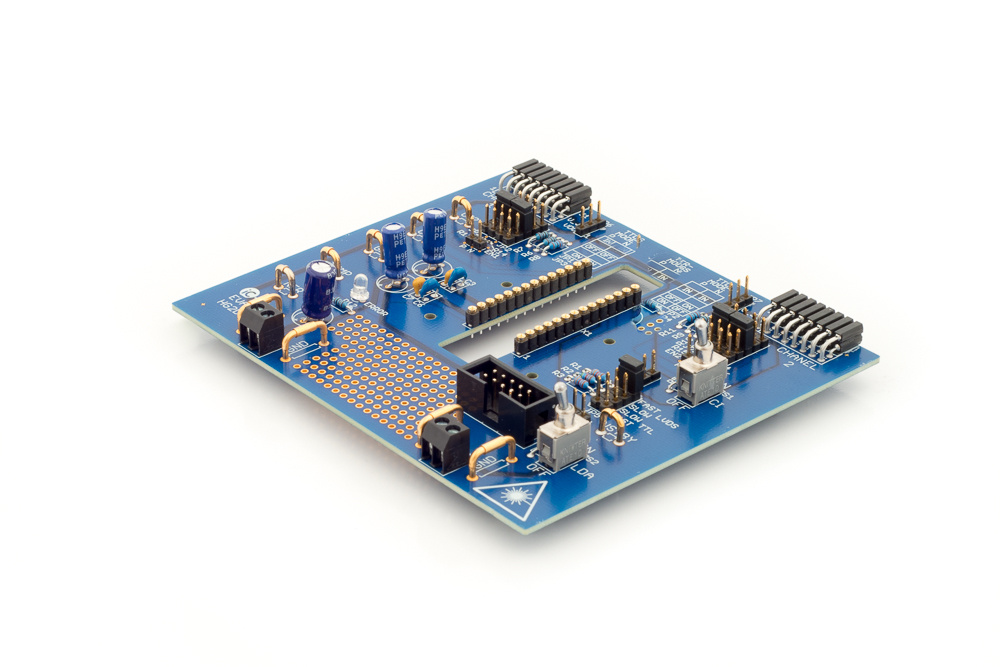

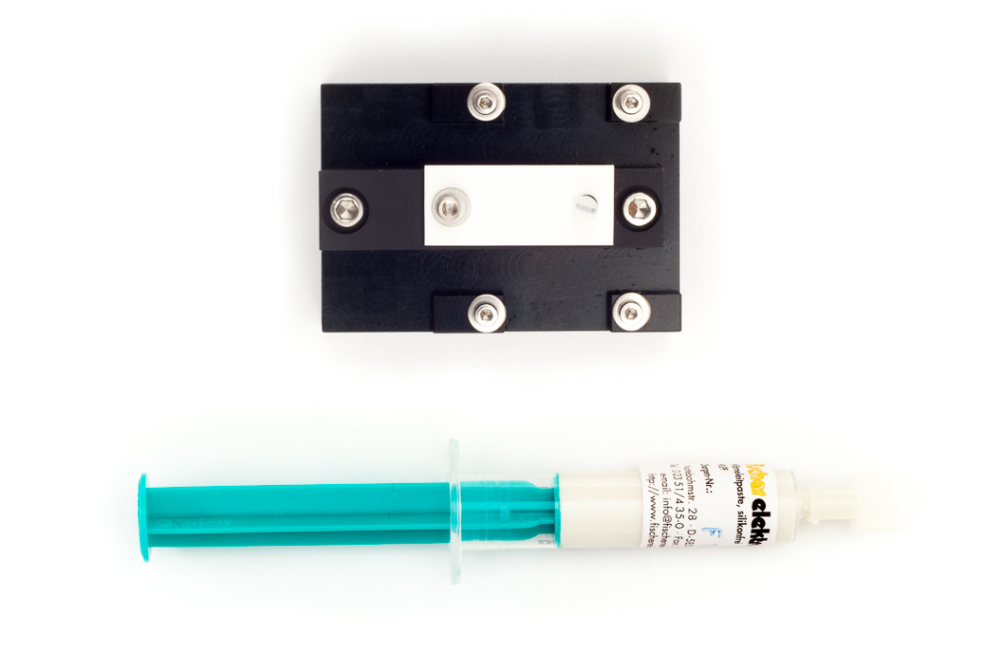

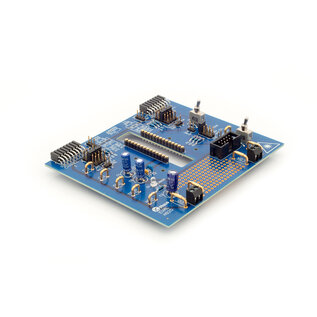

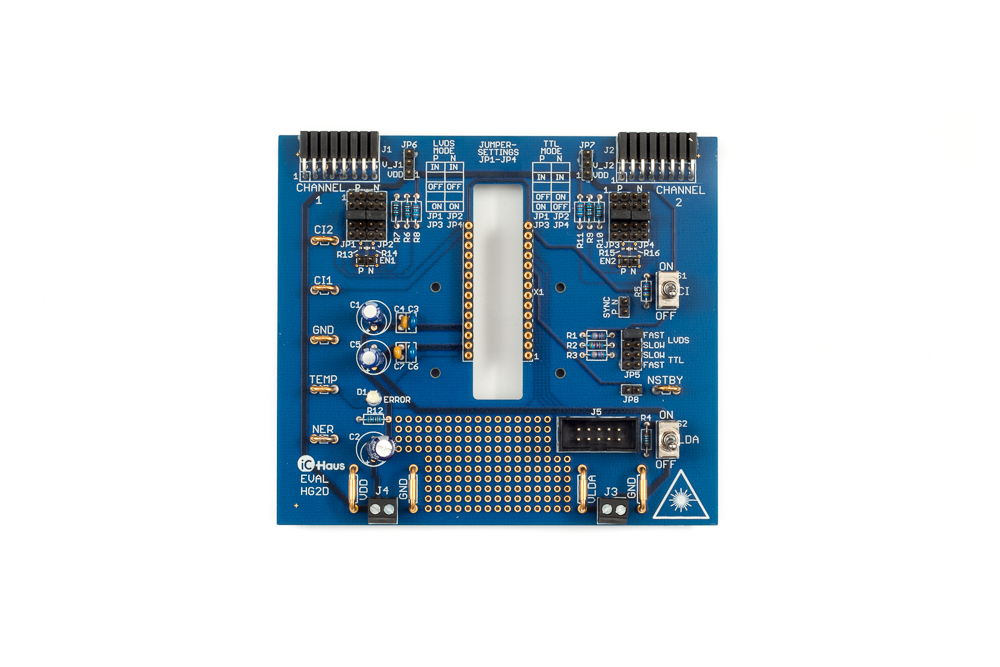

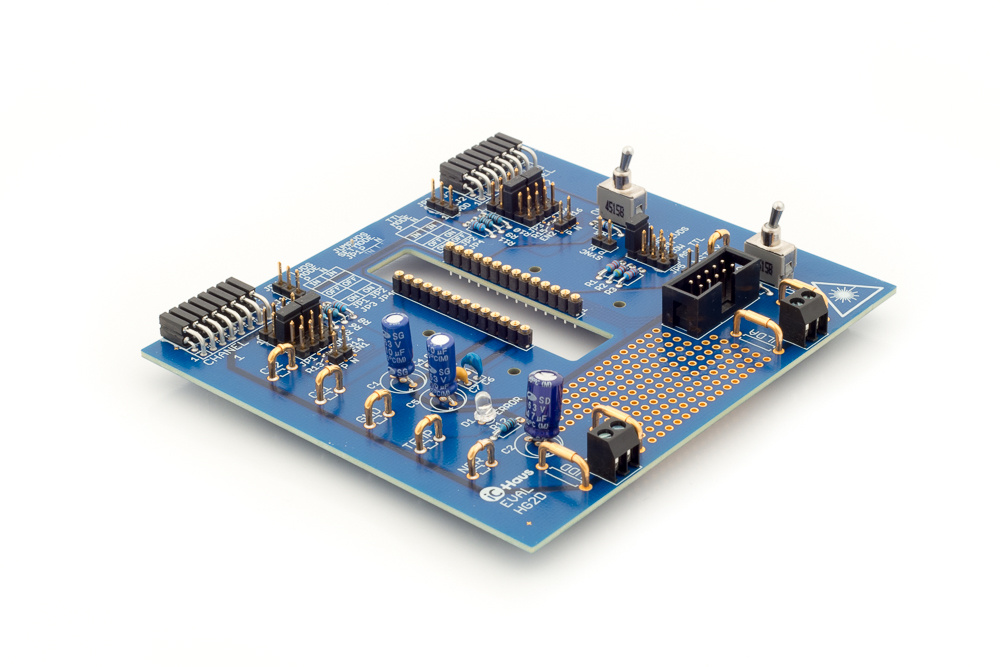

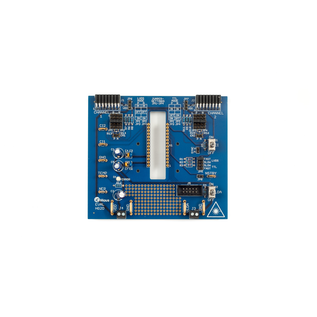

iC-HG EVAL HG2D HSK eases the handling and operation of the high-speed laser modules and allows the easy mounting of a heat sink.

Product description

Six channel laser switch iC-HG enables the spike-free switching of laser diodes with well-defined current pulses at frequencies ranging from DC to 200 MHz.

The diode current is set by the voltages at pins CIx.

The switches are controlled via TTL/LVDS inputs.

Each channel can be operated at up to 500 mA CW and 1500 mA pulsed current, depending on the frequency, duty cycle and heat dissipation.
