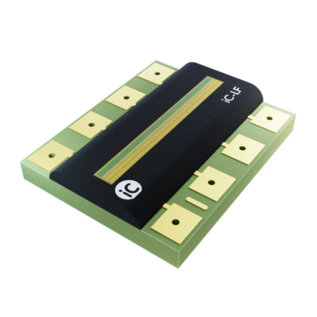

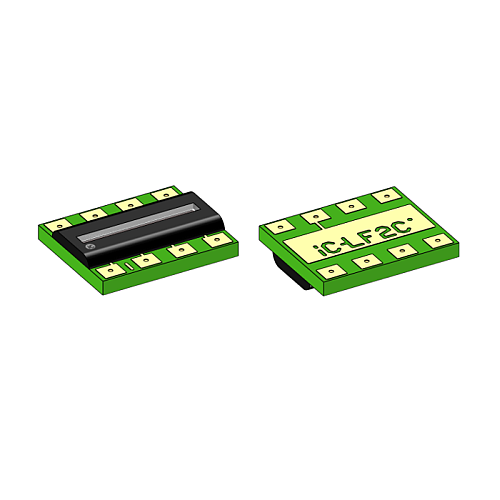

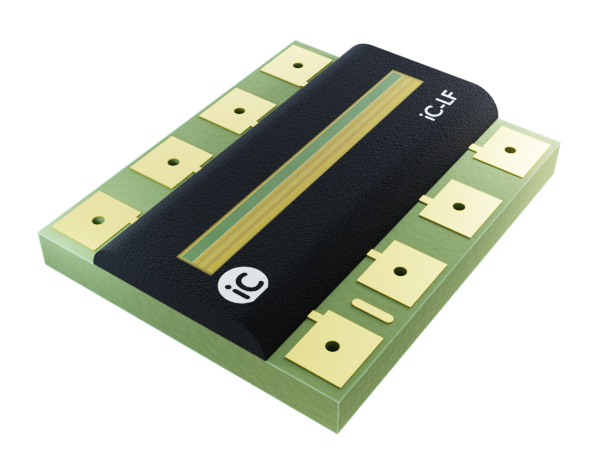

iC-LF oLGA LF2C

128x1 Linear Image Sensor (oLGA package)

This is a B2B only shop. Please login or register.

Product description

iC-LF1401 is an integrating light-to-voltage converter with a line of 128 pixels pitched at 63.5 µm (center-to-center distance).

The integrated control logic makes operation very simple, with only a start and clock signal necessary. A third control input (DIS) acts as an electronic shutter.

iC-LF1401 is suitable for high clock rates of up to 5 MHz.

Features

  • 128 active photo pixels of 56 µm at a 63.5 µm pitch (400 DPI)
  • Integrating L-V conversion followed by a sample & hold circuit
  • High sensitivity and uniformity over wavelength
  • High clockrates of up to 5 MHz
  • Only 128 clocks required for readout
  • Shutter function enables flexible integration times
  • Glitch-free analogue output
  • Push-pull output amplifier
  • 5 V single supply operation
  • Pin-compatible with TSL1401

Applications

  • Optical line image sensors
  • CCD substitute
