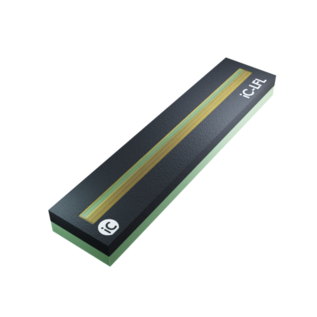

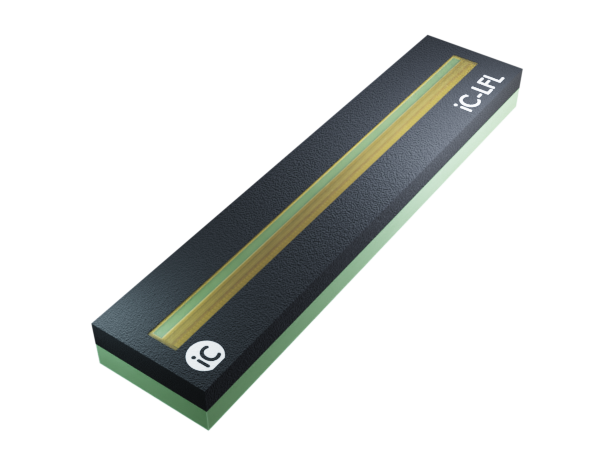

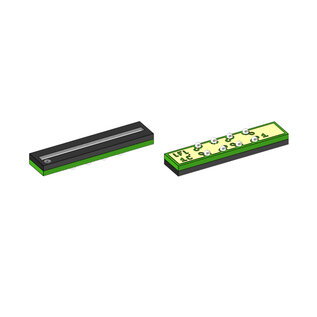

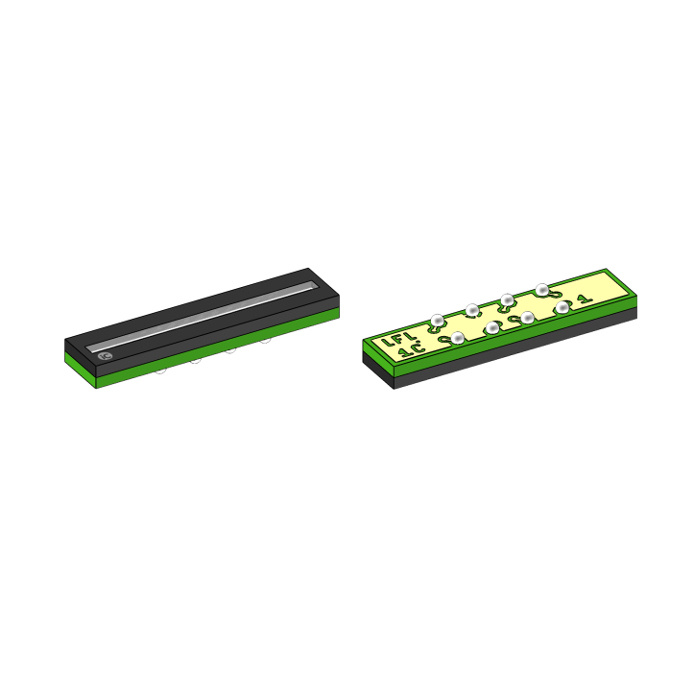

iC-LFL oBGA LFL1C

256x1 Linear Image Sensor 1402

This is a B2B shop.
Orders will be fulfilled and shipped to business
clients with a valid address in Germany.

Please login or register.

Product description

iC-LFL1402 is an integrating light-to-voltage converter with a single line of 256 pixels pitched at 63.5 µm (center-to-center distance). Due to the monolithical integration there is no pixel-gap or pitch distortion whatsoever.

The integrated control logic makes operation very simple, with only a start and clock signal necessary. A third control input (DIS) acts as an electronic shutter.

iC-LFL1402 is suitable for high clock rates of up to 5 MHz.

Features

  • 256 active photo pixels of 56 µm at a gap and distortion free pitch of 63.5 µm (400 DPI)
  • Integrating L-V conversion followed by a sample & hold circuit
  • High sensitivity and uniformity over wavelength
  • High clockrates of up to 5 MHz
  • Only 256 clocks required for readout
  • Shutter function enables flexible integration times
  • Glitch-free analogue output
  • Push-pull output amplifier
  • 5 V single supply operation
  • Can run off external bias to reduce power consumption
  • Function equivalent to TSL1402 (serial mode)

Applications

  • Optical line sensors
  • CCD substitute
