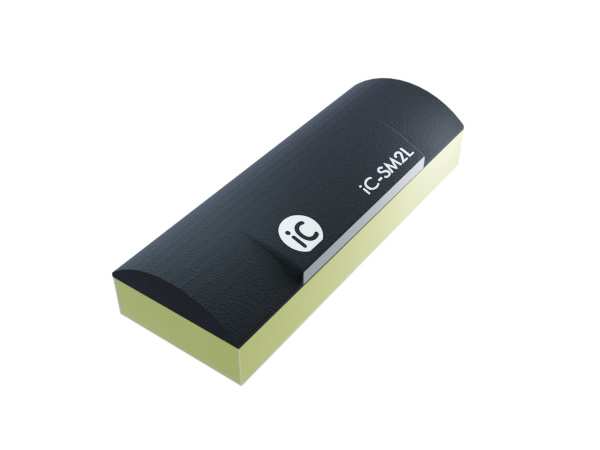

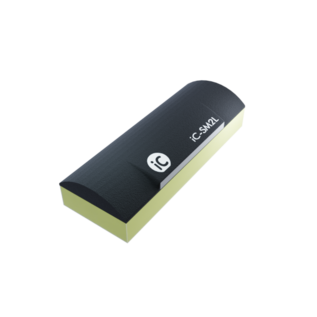

iC-SM2L LGA SM2C

Linear AMR-Sensor (2 mm)

This is a B2B only shop. Please login or register.

Product description

iC-SM2L is a linear position sensor which operates on the AMR effect (anisotropic magneto resistance) and has been designed to work with magnetic scales which have a N/S pole pitch of 2 mm.
The amplitudes of the differential output voltages are largely independent of the magnetic field strength and thus not sensitive to changes in distance.
iC-SM2L is resistant to strong magnetic fields and not sensitive to external homogenous magnetic fields.

Features

  • Magneto resistive position sensor based on the AMR effect
  • Strong field sensor for 2 mm N/S pole pitch
  • One sine/cosine cycle per pole width (averaged using a pair of N/S poles)
  • High interpolation due to a sine signal with few harmonics
  • Low saturation field strength
  • High amplitude consistency with changes in distance
  • Resistant to strong magnetic fields
  • Not sensitive to external homogenous magnetic fields
  • Small SMT capable package

Applications

  • Linear position sensing
  • Length measuring systems
  • Off-axis hollow shaft rotary encoders
