MU2L 82-32N

Magnetic Tape (2-Track Nonius)

This is a B2B shop.
Orders will be fulfilled and shipped to business
clients with a valid address in Germany.

Please login or register.

Article description

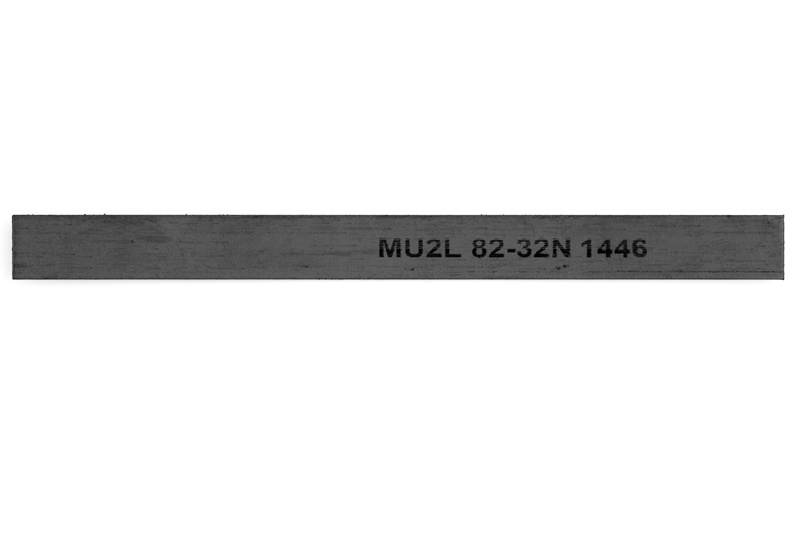

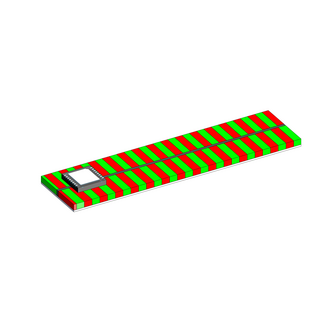

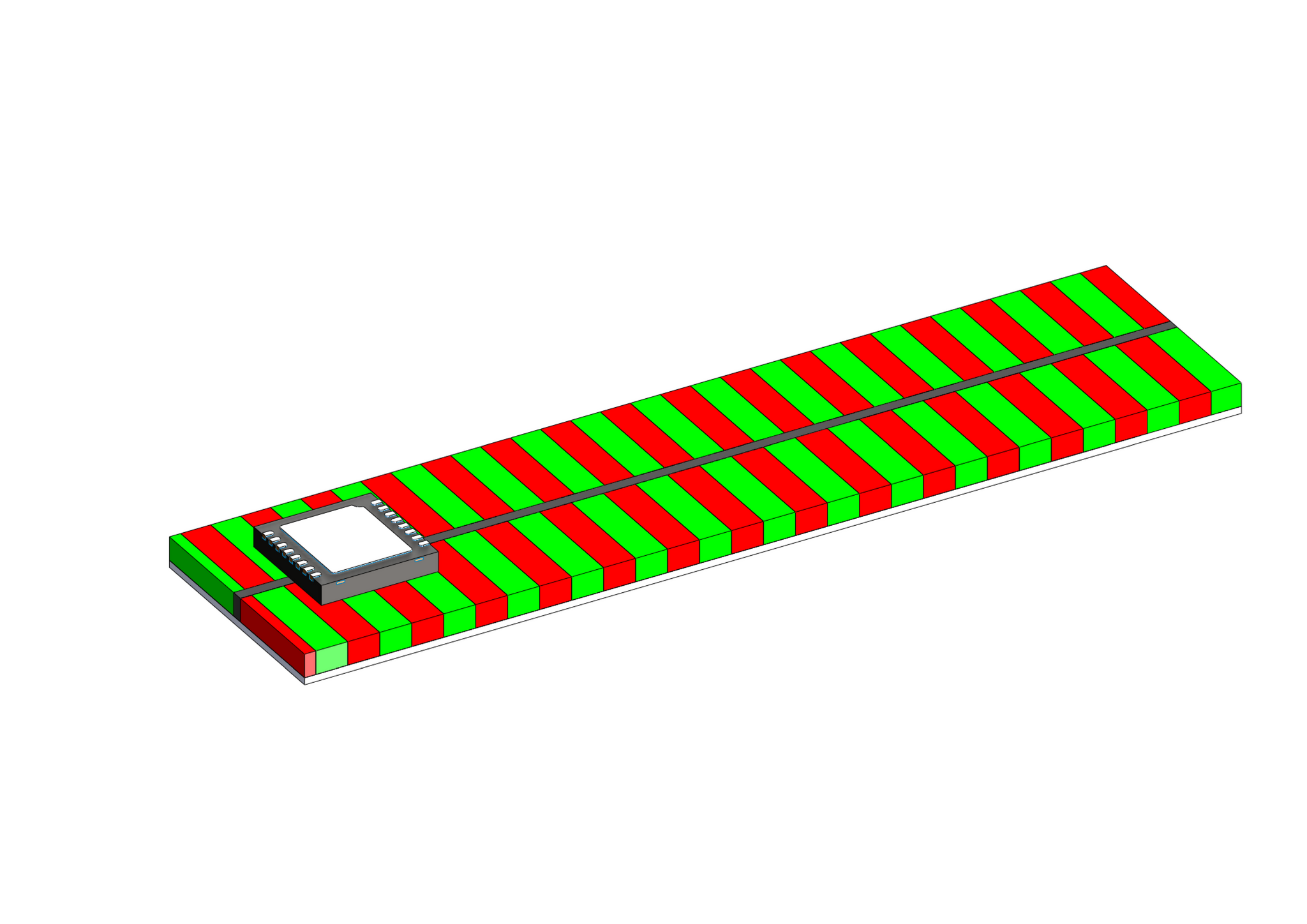

MU2L 82-32N is a magnetic tape with a two track nonius coding suitable for the iC-MU. The code comprises of 32 (master) and 31 (nonius) pole pairs on a length of 81.92 mm.

The total length of the tape is 120 mm.

Product description

iC-MU is used for magnetic off-axis position detection with integrated Hall sensors. By scanning two separate channels i.e. the master and nonius track, the device can provide an absolute position within one mechanical revolution.

Position data can be transmitted serially (SSI, BiSS, SPI), incrementally, or analog through two ports in various modes of operation. Commutation signals (U/V/W) for brushless DC (BLDC) motors with up to 16 pole pairs are derived from the absolute position.
